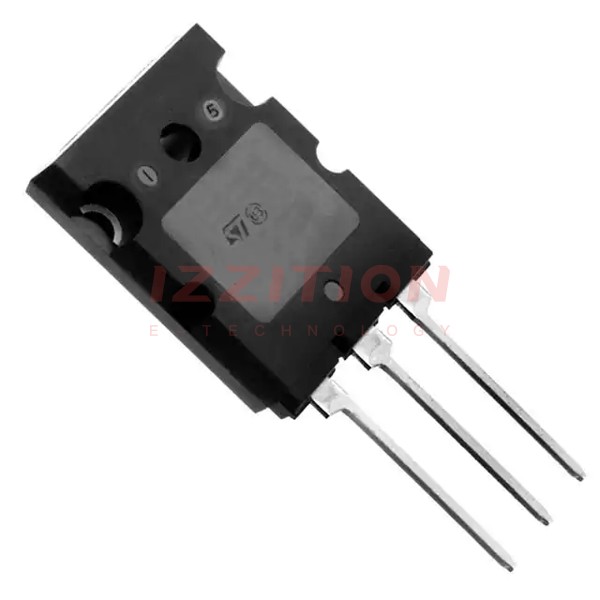

STMicroelectronics 2STC5200

Manufacturer No:
2STC5200
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
TRANS NPN 230V 15A TO264
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2STC5200 is a high-power NPN epitaxial planar bipolar transistor manufactured by STMicroelectronics. This transistor is designed for high-performance applications requiring robust electrical characteristics. Although the product is currently obsolete and no longer manufactured, it remains relevant for existing designs and maintenance of older systems. The 2STC5200 is known for its high breakdown voltage and significant current handling capabilities, making it suitable for various power management and control applications.

Key Specifications

ParameterValue
Transistor TypeNPN Epitaxial Planar Bipolar Transistor
Maximum DC Collector Current15 A
Collector-Emitter Voltage (VCEO) Max> 230 V
Package / CaseTO-264-3
ConfigurationSingle

Key Features

  • High breakdown voltage (VCEO > 230V)
  • High power handling capabilities
  • NPN epitaxial planar bipolar transistor structure
  • Single configuration
  • TO-264-3 package/case

Applications

The 2STC5200 is suitable for a variety of high-power applications, including:

  • Power management systems
  • Motor control circuits
  • High-current switching applications
  • Industrial control systems
  • Automotive electronics

Q & A

  1. What is the maximum DC collector current of the 2STC5200?
    The maximum DC collector current of the 2STC5200 is 15 A.
  2. What is the collector-emitter voltage (VCEO) of the 2STC5200?
    The collector-emitter voltage (VCEO) of the 2STC5200 is greater than 230 V.
  3. What is the package type of the 2STC5200?
    The package type of the 2STC5200 is TO-264-3.
  4. Is the 2STC5200 still in production?
    No, the 2STC5200 is currently obsolete and no longer manufactured.
  5. What are some common applications for the 2STC5200?
    The 2STC5200 is commonly used in power management systems, motor control circuits, high-current switching applications, industrial control systems, and automotive electronics.
  6. What is the transistor type of the 2STC5200?
    The 2STC5200 is an NPN epitaxial planar bipolar transistor.
  7. Where can I find detailed specifications for the 2STC5200?
    Detailed specifications for the 2STC5200 can be found in the datasheet available on STMicroelectronics' official website or through distributors like Mouser and Digi-Key.
  8. Can I still purchase the 2STC5200?
    Although the 2STC5200 is obsolete, it may still be available from some distributors or through secondary markets.
  9. What are the key features of the 2STC5200?
    The key features include high breakdown voltage, high power handling capabilities, and a TO-264-3 package.
  10. Why is the 2STC5200 used in high-power applications?
    The 2STC5200 is used in high-power applications due to its high breakdown voltage and significant current handling capabilities.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):15 A
Voltage - Collector Emitter Breakdown (Max):230 V
Vce Saturation (Max) @ Ib, Ic:3V @ 800mA, 8A
Current - Collector Cutoff (Max):5µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:80 @ 1A, 5V
Power - Max:150 W
Frequency - Transition:30MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-264-3, TO-264AA
Supplier Device Package:TO-264
