RB751V-40-AU_R1_000A1
  • Share:

Panjit International Inc. RB751V-40-AU_R1_000A1

Manufacturer No:
RB751V-40-AU_R1_000A1
Manufacturer:
Panjit International Inc.
Package:
Tape & Reel (TR)
Description:

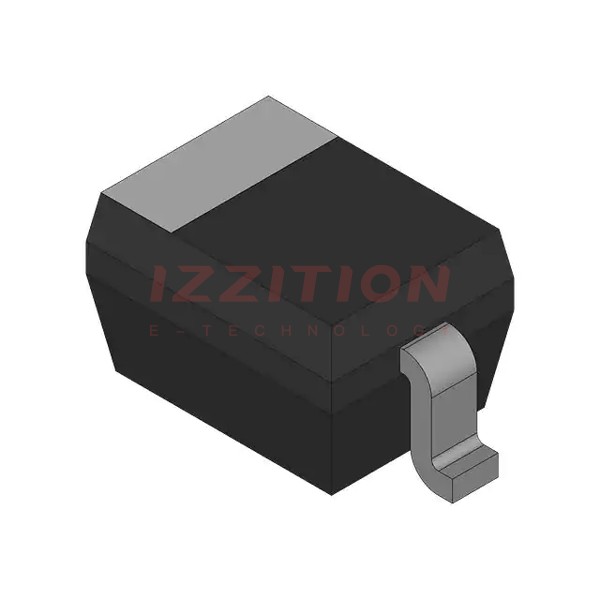

SOD-323, SKY
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The RB751V-40-AU_R1_000A1 is a Schottky Barrier Diode produced by Panjit International Inc. This diode is designed for high-performance applications requiring low forward voltage drop and fast switching speeds. It is packaged in the SOD-323 surface mount format, making it ideal for automatic insertion and use in compact electronic designs.

Key Specifications

Parameter Symbol Value Units
Maximum Repetitive Peak Reverse Voltage VRRM 40 V
Maximum RMS Voltage VRMS 28 V
Maximum DC Blocking Voltage VDC 40 V
Maximum Average Forward Current IF(AV) 0.3 A
Peak Forward Surge Current (1 s Single Half Sine-Wave) IFSM 0.6 A
Maximum Junction Capacitance (at 1 MHz, VR = 0 V) CJ 5 pF
Typical Thermal Resistance (Junction to Ambient) RθJA 650 °C/W
Operating Junction Temperature Range TJ -55 to 150 °C
Storage Temperature Range TSTG -55 to 150 °C
Forward Voltage (at IF = 1 mA, TJ = 25°C) VF 0.37 V
Reverse Current (at VR = 40 V, TJ = 25°C) IR 1 μA

Key Features

  • Extremely fast switching speed, making it suitable for high-frequency applications.
  • Surface mount package (SOD-323) ideal for automatic insertion and compact designs.
  • Low forward voltage drop (VF = 0.37 V at IF = 1 mA, TJ = 25°C).
  • High conductor efficiency and low junction capacitance (CJ = 5 pF at 1 MHz, VR = 0 V).
  • Lead-free and halogen-free in compliance with EU RoHS 2.0 and IEC 61249 standards.
  • Green molding compound and matte Au plated leads, solderable per MIL-STD-750, Method 2026.
  • AEC-Q101 qualified, ensuring reliability in automotive applications.

Applications

  • Switching power supplies and DC-DC converters.
  • Inverters and motor control circuits.
  • Adapters and battery chargers.
  • Automotive electronics requiring high reliability and low power loss.
  • General-purpose rectification in low to medium power applications.

Q & A

  1. What is the maximum repetitive peak reverse voltage of the RB751V-40-AU_R1_000A1?

    The maximum repetitive peak reverse voltage is 40 V.

  2. What is the typical forward voltage drop at 1 mA and 25°C?

    The typical forward voltage drop is 0.37 V at 1 mA and 25°C.

  3. What is the maximum average forward current rating?

    The maximum average forward current rating is 0.3 A.

  4. Is the RB751V-40-AU_R1_000A1 lead-free and halogen-free?
  5. What is the operating junction temperature range of the diode?

    The operating junction temperature range is -55°C to 150°C.

  6. Is the diode AEC-Q101 qualified?
  7. What is the package type and size of the RB751V-40-AU_R1_000A1?

    The package type is SOD-323, with dimensions approximately 1.95 mm x 1.75 mm x 0.90 mm.

  8. What are some common applications for this diode?
  9. What is the maximum junction capacitance at 1 MHz and 0 V reverse bias?

    The maximum junction capacitance is 5 pF at 1 MHz and 0 V reverse bias.

  10. What is the typical thermal resistance from junction to ambient?

    The typical thermal resistance from junction to ambient is 650 °C/W.

Product Attributes

Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):40 V
Current - Average Rectified (Io):300mA
Voltage - Forward (Vf) (Max) @ If:370 mV @ 1 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:1 µA @ 40 V
Capacitance @ Vr, F:5pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:SC-90, SOD-323F
Supplier Device Package:SOD-323
Operating Temperature - Junction:-55°C ~ 150°C
