Panjit International Inc. BCX53-16-AU_R1_000A1

Manufacturer No:
BCX53-16-AU_R1_000A1
Manufacturer:
Panjit International Inc.
Package:
Tape & Reel (TR)
Description:

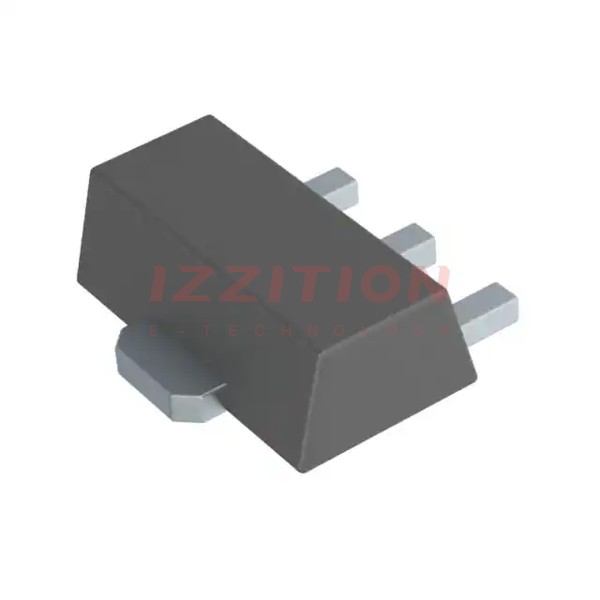

TRANS PNP 100V 1A SOT89
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BCX53-16-AU_R1_000A1 is a PNP bipolar junction transistor (BJT) manufactured by Panjit International Inc. This transistor is designed for medium power applications and is known for its high current handling and low Vce(sat) characteristics. It is packaged in the SOT-89 format, making it suitable for surface mount technology (SMT) applications.

Key Specifications

Parameter Value
Transistor Type PNP Bipolar Junction Transistor (BJT)
Collector Emitter Voltage (V(br)ceo) -80V
Transition Frequency (ft) 125MHz
Power Dissipation (Pd) 500mW
DC Collector Current -1A
DC Current Gain (hFE) 250
Transistor Case Style SOT-89
No. of Pins 3 Pins
Operating Temperature Range -65°C to 150°C
Moisture Sensitivity Level (MSL) MSL 1 - Unlimited
SVHC (Substances of Very High Concern) No SVHC (as of 20-Jun-2016)

Key Features

  • High Current Handling: The BCX53-16-AU_R1_000A1 can handle a DC collector current of up to 1A, making it suitable for medium power applications.
  • Low Vce(sat): This transistor features a low collector-emitter saturation voltage, which is beneficial for reducing power losses in switching and amplification applications.
  • High Power Dissipation Capability: With a power dissipation of 500mW, this transistor can handle significant power without overheating.
  • Exposed Heatsink: The SOT-89 package includes an exposed heatsink, which enhances thermal and electrical performance.
  • Multiple Current Gain Selections: The transistor is available with different current gain selections, providing flexibility in design.

Applications

  • General Purpose Amplification: Suitable for general-purpose amplification in audio, video, and other electronic circuits.
  • Switching Circuits: Can be used in switching applications due to its high current handling and low Vce(sat).
  • Automotive Electronics: Given its robust specifications, it can be used in various automotive electronic systems.
  • Industrial Control Systems: Applicable in industrial control systems that require reliable and high-performance transistors.

Q & A

  1. What is the collector-emitter voltage (V(br)ceo) of the BCX53-16-AU_R1_000A1?

    The collector-emitter voltage (V(br)ceo) is -80V.

  2. What is the transition frequency (ft) of this transistor?

    The transition frequency (ft) is 125MHz.

  3. What is the maximum power dissipation (Pd) of the BCX53-16-AU_R1_000A1?

    The maximum power dissipation (Pd) is 500mW.

  4. What is the DC collector current rating of this transistor?

    The DC collector current rating is -1A.

  5. What is the DC current gain (hFE) of the BCX53-16-AU_R1_000A1?

    The DC current gain (hFE) is 250.

  6. What package type is used for the BCX53-16-AU_R1_000A1?

    The transistor is packaged in the SOT-89 format.

  7. What is the operating temperature range of this transistor?

    The operating temperature range is -65°C to 150°C.

  8. Is the BCX53-16-AU_R1_000A1 RoHS compliant?

    Yes, the transistor is RoHS compliant.

  9. What are some common applications of the BCX53-16-AU_R1_000A1?

    Common applications include general-purpose amplification, switching circuits, automotive electronics, and industrial control systems.

  10. What is the moisture sensitivity level (MSL) of this transistor?

    The moisture sensitivity level (MSL) is MSL 1 - Unlimited.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):1 A
Voltage - Collector Emitter Breakdown (Max):100 V
Vce Saturation (Max) @ Ib, Ic:600mV @ 100mA, 1A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 150mA, 2V
Power - Max:1.4 W
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89
