Overview
The SS2003M-TL-W is a Schottky Barrier Diode produced by onsemi. Although this component is currently obsolete and no longer manufactured, it was widely used in various high-frequency applications due to its low forward voltage drop and high efficiency. For current needs, the SS2003M-TL-E is recommended as a parametric equivalent.
Key Specifications
| Parameter | Value |
|---|---|
| Maximum DC Reverse Voltage | 30 V |
| Average Rectified Current | 2 A |
| Forward Voltage Drop (VF) | Low VF |

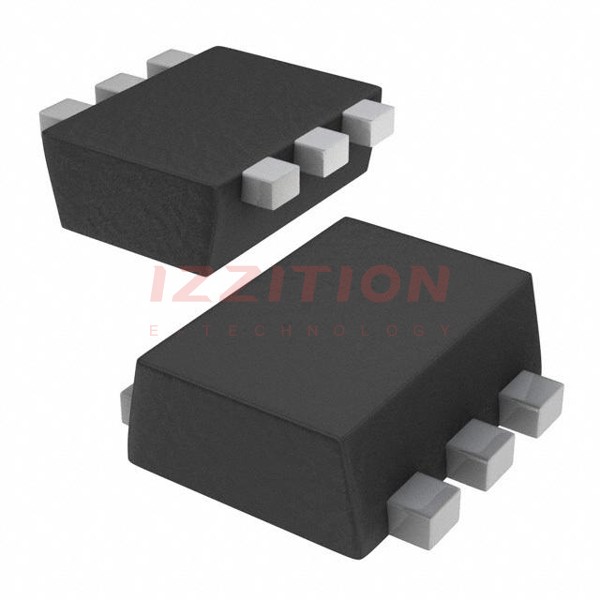

| Package Type | MCPH6 |
Key Features
The SS2003M-TL-W features Schottky technology, which provides a low forward voltage drop, making it highly efficient in high-frequency applications. It has a maximum DC reverse voltage of 30 V and an average rectified current of 2 A. These characteristics make it suitable for applications requiring high-speed switching and low power loss.
Applications
This Schottky diode is primarily used in high-frequency rectification applications such as switching regulators, converters, and choppers. Its low forward voltage drop and high efficiency make it an ideal choice for designs that require fast switching times and minimal power dissipation.
Q & A
- What is the maximum DC reverse voltage of the SS2003M-TL-W?
The maximum DC reverse voltage is 30 V.
- What is the average rectified current of the SS2003M-TL-W?
The average rectified current is 2 A.
- Is the SS2003M-TL-W still in production?
No, the SS2003M-TL-W is obsolete and no longer manufactured.
- What is the recommended substitute for the SS2003M-TL-W?
The recommended substitute is the SS2003M-TL-E.
- What technology does the SS2003M-TL-W use?
The SS2003M-TL-W uses Schottky technology.
- What are the primary applications of the SS2003M-TL-W?
The primary applications include high-frequency rectification in switching regulators, converters, and choppers.
- What is the package type of the SS2003M-TL-W?
The package type is MCPH6.
- Why is the SS2003M-TL-W preferred in high-frequency applications?
It is preferred due to its low forward voltage drop and high efficiency.
- Where can I find more detailed specifications for the SS2003M-TL-W?
You can find detailed specifications on the official onsemi website or through distributors like Digi-Key and Mouser Electronics.
- What are the benefits of using Schottky diodes like the SS2003M-TL-W?
Schottky diodes offer low forward voltage drop, high efficiency, and fast switching times, making them ideal for high-frequency applications.
