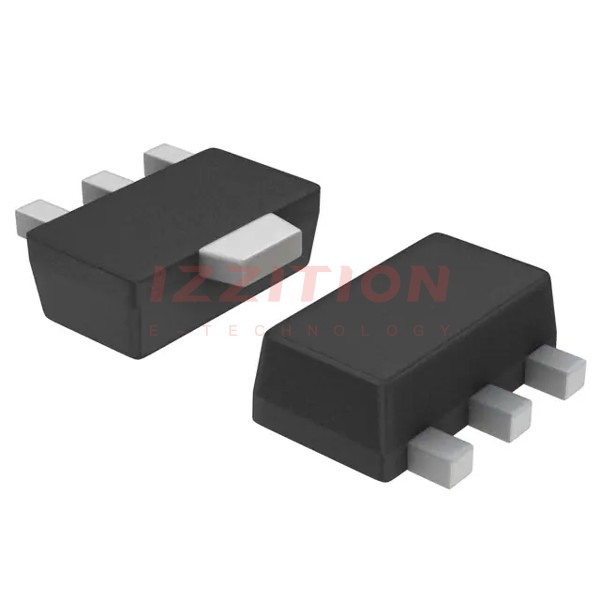

onsemi PCP1103-TD-H

Manufacturer No:
PCP1103-TD-H
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS PNP 30V 1.5A PCP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PCP1103-TD-H is a PNP bipolar junction transistor (BJT) manufactured by onsemi. This transistor is designed for a variety of applications requiring high current and voltage handling capabilities. It is particularly suited for use in power amplification, switching, and general-purpose applications.

Key Specifications

ParameterValue
Transistor TypePNP
Maximum Collector Current1.5 A
Maximum Collector-Emitter Voltage30 V
Maximum Power Dissipation3.5 W
Operating Temperature (TJ)150°C
Package / CaseTO-243AA
Mounting TypeSurface Mount

Key Features

  • High current handling capability of up to 1.5 A.
  • High voltage handling capability of up to 30 V.
  • Surface mount package (TO-243AA) for easy integration into modern PCB designs.
  • High power dissipation of up to 3.5 W.
  • Operating temperature range up to 150°C (TJ).

Applications

The PCP1103-TD-H is suitable for a wide range of applications, including:

  • Power amplification and switching circuits.
  • General-purpose transistor applications.
  • Automotive and industrial control systems.
  • Audio and power supply circuits.

Q & A

  1. What is the maximum collector current of the PCP1103-TD-H?
    The maximum collector current is 1.5 A.
  2. What is the maximum collector-emitter voltage of the PCP1103-TD-H?
    The maximum collector-emitter voltage is 30 V.
  3. What is the maximum power dissipation of the PCP1103-TD-H?
    The maximum power dissipation is 3.5 W.
  4. What is the operating temperature range of the PCP1103-TD-H?
    The operating temperature range is up to 150°C (TJ).
  5. What is the package type of the PCP1103-TD-H?
    The package type is TO-243AA.
  6. Is the PCP1103-TD-H suitable for surface mount applications?
    Yes, it is suitable for surface mount applications.
  7. What are some common applications of the PCP1103-TD-H?
    Common applications include power amplification, switching circuits, general-purpose transistor applications, and automotive and industrial control systems.
  8. Who is the manufacturer of the PCP1103-TD-H?
    The manufacturer is onsemi.
  9. What is the transistor type of the PCP1103-TD-H?
    The transistor type is PNP.
  10. Is the PCP1103-TD-H an active product?
    Yes, the PCP1103-TD-H is an active product.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):1.5 A
Voltage - Collector Emitter Breakdown (Max):30 V
Vce Saturation (Max) @ Ib, Ic:375mV @ 15mA, 750mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 100mA, 2V
Power - Max:3.5 W
Frequency - Transition:450MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:PCP
0 Remaining View Similar

In Stock

$0.45
1,255

Please send RFQ , we will respond immediately.

Same Series
PCP1103-P-TD-H
PCP1103-P-TD-H
TRANS PNP 30V 1.5A PCP

Similar Products

Part Number PCP1103-TD-H PCP1203-TD-H
Manufacturer onsemi onsemi
Product Status Active Obsolete
Transistor Type PNP NPN
Current - Collector (Ic) (Max) 1.5 A 1.5 A
Voltage - Collector Emitter Breakdown (Max) 30 V 30 V
Vce Saturation (Max) @ Ib, Ic 375mV @ 15mA, 750mA 225mV @ 15mA, 750mA
Current - Collector Cutoff (Max) 100nA (ICBO) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 100mA, 2V 200 @ 100mA, 2V
Power - Max 3.5 W 1.3 W
Frequency - Transition 450MHz 500MHz
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Package / Case TO-243AA TO-243AA
Supplier Device Package PCP PCP
