Overview
The NSPU3051N2T5G is a unidirectional ESD (Electrostatic Discharge) and surge protection diode manufactured by onsemi. This component is designed to protect voltage-sensitive components from ESD and surge events, ensuring the reliability and longevity of electronic devices. With its excellent clamping capability and low leakage current, it is an essential component in various electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Peak Pulse Current (Ipp) | 36 A (8/20 µs) |
| Peak Pulse Power Dissipation (Pppm) | 342 W |
| Diode Capacitance (Cd) | 130 pF |
| Voltage ESD Contact (Vesd) | 30 kV |
| Clamping Voltage (Vc Max) | 9.5 V |

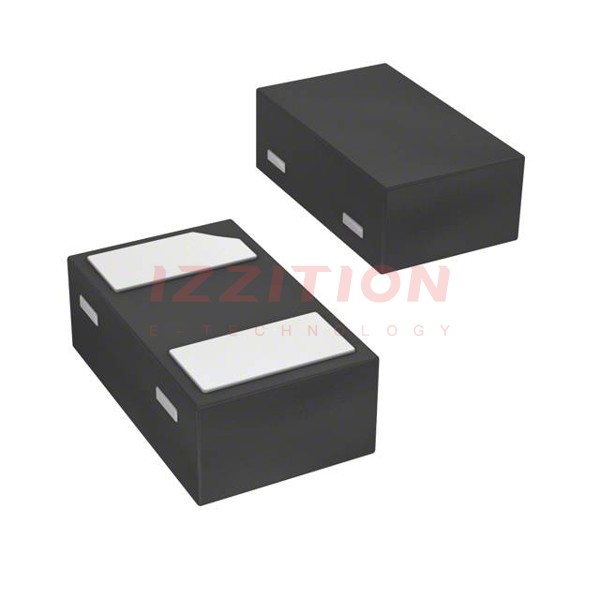

| Diode Case Style | X2DFN |
| No. of Pins | 2 Pins |
Key Features
- Excellent clamping capability to protect against ESD and surge events.
- Low leakage current to minimize power consumption.
- Compact X2DFN package, suitable for space-constrained designs.
- High peak pulse current handling capability of 36 A (8/20 µs).
- High voltage ESD contact rating of 30 kV.
Applications
The NSPU3051N2T5G is widely used in various electronic devices and systems that require protection against ESD and surge events. These include:
- Portable electronics such as smartphones, tablets, and laptops.
- Consumer electronics like TVs, audio equipment, and gaming consoles.
- Industrial control systems and automation equipment.
- Automotive electronics, including infotainment and safety systems.
- Medical devices that require high reliability and protection against ESD.
Q & A
- What is the primary function of the NSPU3051N2T5G?
The primary function of the NSPU3051N2T5G is to protect voltage-sensitive components from ESD and surge events. - What is the peak pulse current handling capability of the NSPU3051N2T5G?
The peak pulse current handling capability is 36 A (8/20 µs). - What is the clamping voltage of the NSPU3051N2T5G?
The clamping voltage is 9.5 V. - What is the package type of the NSPU3051N2T5G?
The package type is X2DFN. - What is the diode capacitance of the NSPU3051N2T5G?
The diode capacitance is 130 pF. - What is the voltage ESD contact rating of the NSPU3051N2T5G?
The voltage ESD contact rating is 30 kV. - In what types of devices is the NSPU3051N2T5G commonly used?
The NSPU3051N2T5G is commonly used in portable electronics, consumer electronics, industrial control systems, automotive electronics, and medical devices. - What are the key features of the NSPU3051N2T5G?
The key features include excellent clamping capability, low leakage current, compact X2DFN package, high peak pulse current handling, and high voltage ESD contact rating. - Where can I find detailed specifications for the NSPU3051N2T5G?
Detailed specifications can be found in the datasheet available on the onsemi website and other authorized distributors like Mouser, Newark, and Farnell. - How does the NSPU3051N2T5G protect against ESD and surge events?
The NSPU3051N2T5G protects against ESD and surge events by clamping the voltage to a safe level, thereby preventing damage to sensitive components.
