Overview

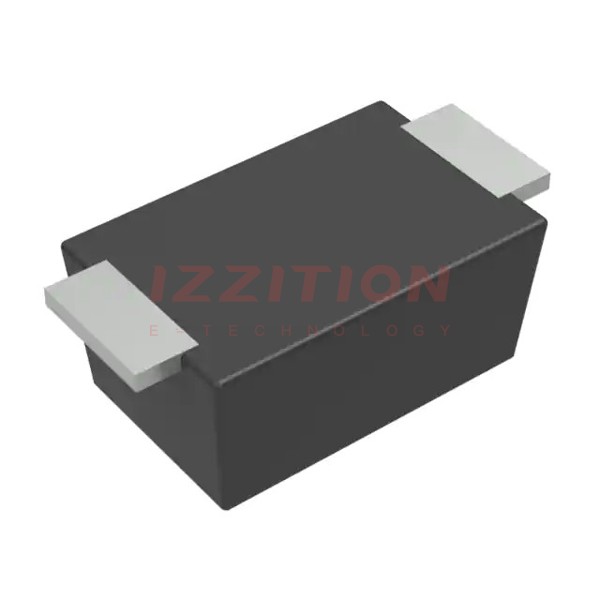

The NRVBSS34FA is a Schottky barrier rectifier diode produced by onsemi, designed for high-efficiency and low-power loss applications. This surface-mount diode is packaged in the SOD-123FL format and is suitable for a variety of electronic circuits requiring reliable and efficient rectification. The device is characterized by its high surge current capability and guard ring for overvoltage protection, making it a robust choice for various industrial and consumer electronics.
Key Specifications
| Parameter | Value |
|---|---|
| Vrrm - Repetitive Reverse Voltage | 40 V |
| Vf - Forward Voltage | 500 mV |
| Ifsm - Forward Surge Current | 80 A |
| Ir - Reverse Current | 500 uA |
| If - Continuous Forward Current | 3 A |
| Package | SOD-123FL |
Key Features
- Low power loss and high efficiency
- Guard ring for overvoltage protection
- High surge current capability
- Surface mount SOD-123FL package for compact design
- Low forward voltage drop (Vf) of 500 mV
Applications
The NRVBSS34FA Schottky diode is suitable for a wide range of applications, including:
- Power supplies and DC-DC converters
- Switch-mode power supplies
- High-frequency rectification
- Automotive and industrial electronics
- Consumer electronics requiring efficient rectification
Q & A
- What is the repetitive reverse voltage (Vrrm) of the NRVBSS34FA?
The repetitive reverse voltage (Vrrm) of the NRVBSS34FA is 40 V. - What is the forward voltage (Vf) of the NRVBSS34FA?
The forward voltage (Vf) of the NRVBSS34FA is 500 mV. - What is the forward surge current (Ifsm) of the NRVBSS34FA?
The forward surge current (Ifsm) of the NRVBSS34FA is 80 A. - What is the continuous forward current (If) of the NRVBSS34FA?
The continuous forward current (If) of the NRVBSS34FA is 3 A. - What package type is the NRVBSS34FA available in?
The NRVBSS34FA is available in the SOD-123FL surface mount package. - What are the key features of the NRVBSS34FA?
The key features include low power loss, high efficiency, guard ring for overvoltage protection, and high surge current capability. - What are some common applications for the NRVBSS34FA?
Common applications include power supplies, DC-DC converters, switch-mode power supplies, high-frequency rectification, automotive electronics, and consumer electronics. - Is the NRVBSS34FA suitable for high-frequency applications?
Yes, the NRVBSS34FA is suitable for high-frequency applications due to its low forward voltage drop and high surge current capability. - Does the NRVBSS34FA have any overvoltage protection features?
Yes, the NRVBSS34FA includes a guard ring for overvoltage protection. - Where can I find detailed specifications for the NRVBSS34FA?
Detailed specifications can be found in the datasheet available on onsemi's official website and other electronic component distributors like Digi-Key and Mouser Electronics.
