Overview

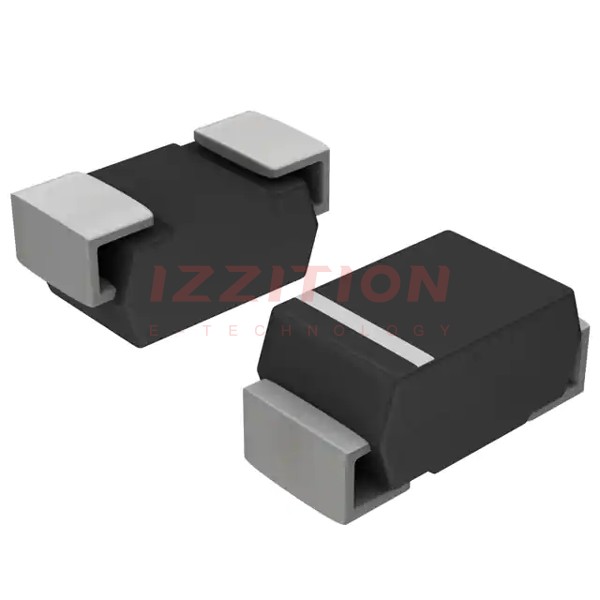

The NRVBA1H100T3G-VF01 is a Schottky rectifier diode produced by onsemi. This component is designed to offer high efficiency and reliability in various electronic applications. It employs the Schottky Barrier principle, which provides lower forward voltage drop and faster switching times compared to traditional diodes. The device is packaged in an SMA (DO-214AC) case, making it suitable for surface mount technology (SMT) assembly.
Key Specifications
| Parameter | Value |
|---|---|
| Part Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) | 0.55 V (typical at 1 A) |
| Mounting Style | SMD/SMT |
| Package / Case | SMA (DO-214AC) |
| Configuration | Single |
Key Features
- Low forward voltage drop (Vf) of 0.55 V (typical at 1 A), reducing power losses and increasing efficiency.
- High reverse voltage rating of 100 V, providing robust protection against reverse voltage conditions.
- High average rectified current of 1 A, suitable for a variety of power rectification applications.
- Fast switching times due to the Schottky Barrier principle, making it ideal for high-frequency applications.
- SMA (DO-214AC) package, which is compact and suitable for surface mount technology, facilitating easier and more efficient assembly.
Applications
The NRVBA1H100T3G-VF01 Schottky rectifier is versatile and can be used in a wide range of applications, including:
- Power supplies and DC-DC converters where high efficiency and low power losses are critical.
- Switch-mode power supplies (SMPS) due to its fast switching times and low forward voltage drop.
- Automotive and industrial power systems where reliability and robustness against reverse voltage are essential.
- High-frequency applications such as RF and microwave circuits.
Q & A
- What is the maximum DC reverse voltage of the NRVBA1H100T3G-VF01?
The maximum DC reverse voltage is 100 V. - What is the average rectified current rating of this diode?
The average rectified current rating is 1 A. - What type of technology does this diode use?
This diode uses Schottky Barrier technology. - What is the typical forward voltage drop at 1 A?
The typical forward voltage drop at 1 A is 0.55 V. - What is the package type of the NRVBA1H100T3G-VF01?
The package type is SMA (DO-214AC). - Is this diode suitable for surface mount technology?
Yes, it is suitable for surface mount technology (SMT). - What are some common applications for this diode?
Common applications include power supplies, DC-DC converters, switch-mode power supplies, automotive and industrial power systems, and high-frequency applications. - Why is the Schottky Barrier principle advantageous in this diode?
The Schottky Barrier principle provides lower forward voltage drop and faster switching times compared to traditional diodes. - What is the part status of the NRVBA1H100T3G-VF01?
The part status is Active. - Where can I find detailed specifications for this component?
Detailed specifications can be found on official onsemi websites, as well as on distributor sites like Mouser and Digi-Key.
