Overview

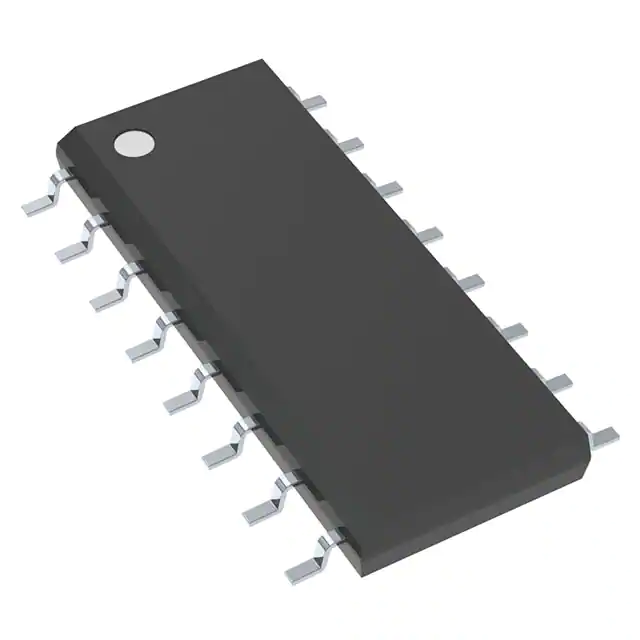

The NLV14014BDR2G is an 8-bit static shift register produced by onsemi. It is part of the MC14014B series, which is constructed with MOS P-channel and N-channel enhancement mode devices in a single monolithic structure. This device is designed for applications requiring low power consumption and high noise immunity. It is particularly useful in parallel-to-serial data conversion, synchronous and asynchronous parallel input/serial output data queueing, and other general-purpose register applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| DC Supply Voltage Range (VDD) | -0.5 to +18.0 | V |
| Input or Output Voltage Range (Vin, Vout) | -0.5 to VDD + 0.5 | V |
| Input or Output Current (Iin, Iout) per Pin | ±10 | mA |
| Power Dissipation per Package (PD) | 500 | mW |
| Ambient Temperature Range (TA) | -55 to +125 | °C |
| Storage Temperature Range (Tstg) | -65 to +150 | °C |
| Lead Temperature (8-Second Soldering) (TL) | 260 | °C |
| Propagation Delay Time (tPLH, tPHL) | 340 (max) | ns |
| Output Current (IO) Max | 2.25 | mA |
Key Features
- Synchronous Parallel Input/Serial Output (MC14014B)
- Asynchronous Parallel Input/Serial Output (MC14021B)
- Synchronous Serial Input/Serial Output
- Full Static Operation
- 'Q' Outputs from Sixth, Seventh, and Eighth Stages
- Double Diode Input Protection
- Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range
- Pin-for-Pin Replacement for CD4014B and CD4021B
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q100 Qualified and PPAP Capable
- Pb-Free and RoHS Compliant
Applications
- Parallel-to-serial data conversion
- Synchronous and asynchronous parallel input/serial output data queueing
- General-purpose register applications requiring low power and/or high noise immunity
- Automotive and industrial applications where reliability and robustness are critical
Q & A
- What is the supply voltage range of the NLV14014BDR2G?
The supply voltage range is from 3.0 Vdc to 18 Vdc.
- What are the primary applications of the NLV14014BDR2G?
The primary applications include parallel-to-serial data conversion, synchronous and asynchronous parallel input/serial output data queueing, and other general-purpose register applications.
- Does the NLV14014BDR2G have input protection?
- Is the NLV14014BDR2G Pb-Free and RoHS Compliant?
- What is the maximum propagation delay time of the NLV14014BDR2G?
The maximum propagation delay time is 340 ns).
- Can the NLV14014BDR2G drive TTL loads?
- What is the ambient temperature range of the NLV14014BDR2G?
- Is the NLV14014BDR2G AEC-Q100 Qualified?
- What package types are available for the NLV14014BDR2G?
- How many units are typically shipped in a reel for the NLV14014BDR2G?
