Overview

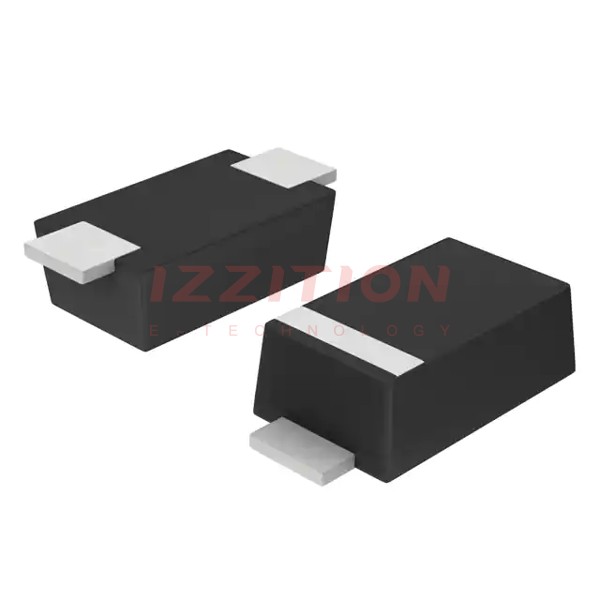

The onsemi NHP220SFT3G is a surface mount ultrafast power rectifier diode designed for high-performance applications. This diode is part of onsemi's extensive range of discrete semiconductor products and is known for its reliability and efficiency. The NHP220SFT3G is packaged in a SOD-123FL package, making it suitable for a variety of electronic circuits where space is a consideration.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| Package Type | SOD-123FL |
| Maximum Continuous Forward Current | 2A |
| Peak Reverse Repetitive Voltage | 200V |
| Diode Configuration | Single |
| Rectifier Type | Soft Recovery |
| Diode Type | Rectifier |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Peak Reverse Recovery Time | 50ns |
| Peak Non-Repetitive Forward Surge Current | 40A |
Key Features
- Ultrafast recovery time of 50ns, making it suitable for high-frequency applications.
- Soft recovery characteristics reduce switching losses and electromagnetic interference (EMI).
- High peak reverse repetitive voltage of 200V and maximum continuous forward current of 2A.
- Compact SOD-123FL package for space-efficient designs.
- Operating temperature range from -65°C to 150°C, ensuring reliability in various environmental conditions.
Applications
The onsemi NHP220SFT3G is versatile and can be used in a wide range of applications, including:
- Switch-mode power supplies (SMPS) and DC-DC converters.
- High-frequency rectification and switching circuits.
- Automotive and industrial power systems.
- Consumer electronics requiring efficient power management.
Q & A
- What is the maximum continuous forward current of the NHP220SFT3G?
The maximum continuous forward current is 2A. - What is the peak reverse repetitive voltage of the NHP220SFT3G?
The peak reverse repetitive voltage is 200V. - What is the recovery time of the NHP220SFT3G?
The recovery time is 50ns. - What is the package type of the NHP220SFT3G?
The package type is SOD-123FL. - What are the key features of the NHP220SFT3G?
The key features include ultrafast recovery time, soft recovery characteristics, high peak reverse repetitive voltage, and a compact package. - What are some common applications of the NHP220SFT3G?
Common applications include switch-mode power supplies, high-frequency rectification circuits, automotive and industrial power systems, and consumer electronics. - What is the operating temperature range of the NHP220SFT3G?
The operating temperature range is from -65°C to 150°C. - What is the peak non-repetitive forward surge current of the NHP220SFT3G?
The peak non-repetitive forward surge current is 40A. - Is the NHP220SFT3G suitable for high-frequency applications?
Yes, it is suitable due to its ultrafast recovery time and soft recovery characteristics. - Where can I find detailed specifications and datasheets for the NHP220SFT3G?
Detailed specifications and datasheets can be found on the onsemi official website, as well as on distributor websites like Digi-Key and Mouser Electronics.
