MSB1218A-RT1G
  • Share:

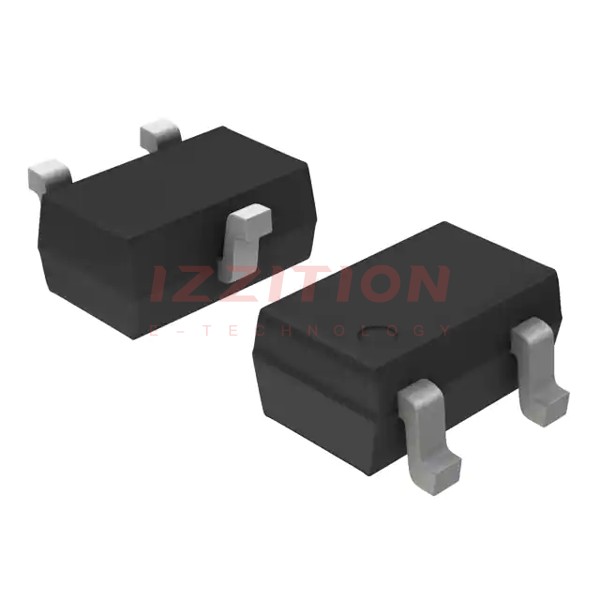

onsemi MSB1218A-RT1G

Manufacturer No:
MSB1218A-RT1G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS PNP 45V 0.1A SC70-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MSB1218A-RT1G is a PNP silicon general-purpose amplifier transistor manufactured by onsemi. This transistor is designed for a wide range of applications requiring reliable and efficient amplification. It is known for its robust performance and versatility, making it a popular choice among engineers and designers.

Key Specifications

ParameterValue
Collector Base Voltage (VCBO)45 V
Collector Emitter Breakdown Voltage45 V
Collector Emitter Saturation Voltage500 mV
Current Gain (hFE)100 to 300 (typical at IC = 10 mA, VCE = 10 V)
Base Emitter Saturation Voltage1.5 V (typical at IC = 10 mA, IB = 1 mA)

Key Features

  • PNP silicon transistor for general-purpose amplification
  • High collector base and collector emitter breakdown voltages (45 V each)
  • Low collector emitter saturation voltage (500 mV)
  • Wide range of current gain (100 to 300)
  • Robust and reliable performance

Applications

The MSB1218A-RT1G is suitable for various applications, including but not limited to:

  • General-purpose amplification in audio and signal processing circuits
  • Switching and driver circuits
  • Automotive and industrial control systems
  • Consumer electronics and appliances

Q & A

  1. What is the collector base voltage (VCBO) of the MSB1218A-RT1G?
    The collector base voltage (VCBO) is 45 V.
  2. What is the collector emitter breakdown voltage of the MSB1218A-RT1G?
    The collector emitter breakdown voltage is 45 V.
  3. What is the typical current gain (hFE) of the MSB1218A-RT1G?
    The typical current gain (hFE) is between 100 to 300 at IC = 10 mA, VCE = 10 V.
  4. What is the collector emitter saturation voltage of the MSB1218A-RT1G?
    The collector emitter saturation voltage is 500 mV.
  5. What are some common applications of the MSB1218A-RT1G?
    Common applications include general-purpose amplification, switching and driver circuits, automotive and industrial control systems, and consumer electronics.
  6. Who is the manufacturer of the MSB1218A-RT1G?
    The MSB1218A-RT1G is manufactured by onsemi.
  7. What type of transistor is the MSB1218A-RT1G?
    The MSB1218A-RT1G is a PNP silicon general-purpose amplifier transistor.
  8. What is the base emitter saturation voltage of the MSB1218A-RT1G?
    The base emitter saturation voltage is typically 1.5 V at IC = 10 mA, IB = 1 mA.
  9. Where can I find detailed specifications for the MSB1218A-RT1G?
    Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Mouser Electronics.
  10. Is the MSB1218A-RT1G suitable for high-voltage applications?
    Yes, the MSB1218A-RT1G is suitable for applications involving high voltages up to 45 V.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 10mA, 100mA
Current - Collector Cutoff (Max):100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:210 @ 2mA, 10V
Power - Max:150 mW
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-70, SOT-323
Supplier Device Package:SC-70-3 (SOT323)
0 Remaining View Similar

In Stock

$0.20
3,791

Please send RFQ , we will respond immediately.

Same Series
NSVMSB1218A-RT1G
NSVMSB1218A-RT1G
TRANS PNP 45V 0.1A SC70-3
MSB1218A-RT1
MSB1218A-RT1
TRANS PNP 45V 0.1A SC70-3

Similar Products

Part Number MSB1218A-RT1G MSB1218A-RT1
Manufacturer onsemi onsemi
Product Status Active Obsolete
Transistor Type PNP PNP
Current - Collector (Ic) (Max) 100 mA 100 mA
Voltage - Collector Emitter Breakdown (Max) 45 V 45 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 10mA, 100mA 500mV @ 10mA, 100mA
Current - Collector Cutoff (Max) 100µA 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce 210 @ 2mA, 10V 210 @ 2mA, 10V
Power - Max 150 mW 150 mW
Frequency - Transition - -
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Package / Case SC-70, SOT-323 SC-70, SOT-323
Supplier Device Package SC-70-3 (SOT323) SC-70-3 (SOT323)
