MPSW92RLRAG
  • Share:

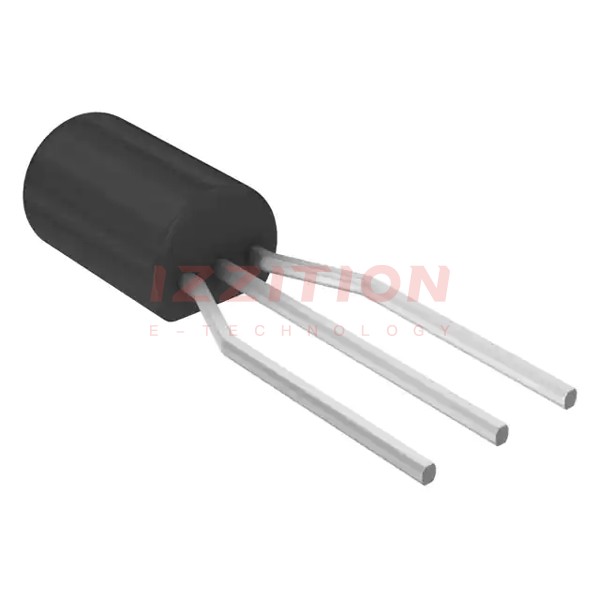

onsemi MPSW92RLRAG

Manufacturer No:
MPSW92RLRAG
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS PNP 300V 0.5A TO92
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MPSW92RLRAG is a high-voltage transistor produced by ON Semiconductor. This device is designed to handle high voltage and current requirements, making it suitable for various power and signal amplification applications. The MPSW92RLRAG is part of the MPSW92 series, known for its reliability and performance in demanding electrical environments.

Key Specifications

Characteristic Value Unit
Collector Current (IC) -500 mA
Collector-Base Breakdown Voltage (V(BR)CBO) 300 Vdc
Collector-Emitter Breakdown Voltage (V(BR)CEO) 300 Vdc
Emitter-Base Breakdown Voltage (VEBO) 5 V
Gain Bandwidth Product 50 MHz
Thermal Resistance, Junction to Case (RθJC) 50 °C/W

Key Features

  • High Voltage Capability: The MPSW92RLRAG can handle high voltage levels, making it suitable for applications requiring robust voltage handling.
  • High Current Rating: With a collector current rating of -500 mA, this transistor is capable of handling significant current loads.
  • High Gain Bandwidth Product: The device features a gain bandwidth product of 50 MHz, which is beneficial for high-frequency applications.
  • Reliability: The MPSW92RLRAG is designed with reliability in mind, ensuring consistent performance in various electrical environments.

Applications

  • Power Amplification: Suitable for power amplification in audio and other high-power applications.
  • Signal Amplification: Can be used in signal amplification circuits where high voltage and current are required.
  • Switching Circuits: Applicable in switching circuits due to its high voltage and current handling capabilities.
  • Industrial Control Systems: Used in industrial control systems where robust and reliable components are necessary.

Q & A

  1. What is the maximum collector current of the MPSW92RLRAG?

    The maximum collector current is -500 mA.

  2. What is the collector-base breakdown voltage of the MPSW92RLRAG?

    The collector-base breakdown voltage is 300 Vdc.

  3. What is the emitter-base breakdown voltage of the MPSW92RLRAG?

    The emitter-base breakdown voltage is 5 V.

  4. What is the gain bandwidth product of the MPSW92RLRAG?

    The gain bandwidth product is 50 MHz.

  5. What is the thermal resistance, junction to case, of the MPSW92RLRAG?

    The thermal resistance, junction to case, is 50 °C/W.

  6. In what types of applications is the MPSW92RLRAG commonly used?

    The MPSW92RLRAG is commonly used in power amplification, signal amplification, switching circuits, and industrial control systems.

  7. Why is the MPSW92RLRAG considered reliable?

    The MPSW92RLRAG is considered reliable due to its robust design and ability to handle high voltage and current levels consistently.

  8. What is the package type of the MPSW92RLRAG?

    The MPSW92RLRAG is available in the TO-92 package.

  9. Is the MPSW92RLRAG lead-free?
  10. Where can I find detailed specifications for the MPSW92RLRAG?

    Detailed specifications can be found in the datasheet available on ON Semiconductor's official website and other electronic component distributors like Digi-Key and Mouser.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):300 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 2mA, 20mA
Current - Collector Cutoff (Max):250nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:25 @ 30mA, 10V
Power - Max:1 W
Frequency - Transition:50MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-226-3, TO-92-3 Long Body (Formed Leads)
Supplier Device Package:TO-92 (TO-226)
0 Remaining View Similar

In Stock

-
608

Please send RFQ , we will respond immediately.

Same Series
MPSW92
MPSW92
TRANS PNP 300V 0.5A TO92
MPSW92G
MPSW92G
TRANS PNP 300V 0.5A TO92
MPSW92RLRA
MPSW92RLRA
TRANS PNP 300V 0.5A TO92

Similar Products

Part Number MPSW92RLRAG MPSA92RLRAG MPSW42RLRAG MPSW92RLRA
Manufacturer onsemi onsemi onsemi onsemi
Product Status Obsolete Obsolete Obsolete Obsolete
Transistor Type PNP PNP NPN PNP
Current - Collector (Ic) (Max) 500 mA 500 mA 500 mA 500 mA
Voltage - Collector Emitter Breakdown (Max) 300 V 300 V 300 V 300 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 2mA, 20mA 500mV @ 2mA, 20mA 500mV @ 2mA, 20mA 500mV @ 2mA, 20mA
Current - Collector Cutoff (Max) 250nA (ICBO) 250nA (ICBO) 100nA (ICBO) 250nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 25 @ 30mA, 10V 25 @ 30mA, 10V 40 @ 30mA, 10V 25 @ 30mA, 10V
Power - Max 1 W 625 mW 1 W 1 W
Frequency - Transition 50MHz 50MHz 50MHz 50MHz
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole Through Hole
Package / Case TO-226-3, TO-92-3 Long Body (Formed Leads) TO-226-3, TO-92-3 Long Body (Formed Leads) TO-226-3, TO-92-3 Long Body (Formed Leads) TO-226-3, TO-92-3 Long Body (Formed Leads)
Supplier Device Package TO-92 (TO-226) TO-92 (TO-226) TO-92 (TO-226) TO-92 (TO-226)
