MMBT2907AM3T5G
  • Share:

onsemi MMBT2907AM3T5G

Manufacturer No:
MMBT2907AM3T5G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:

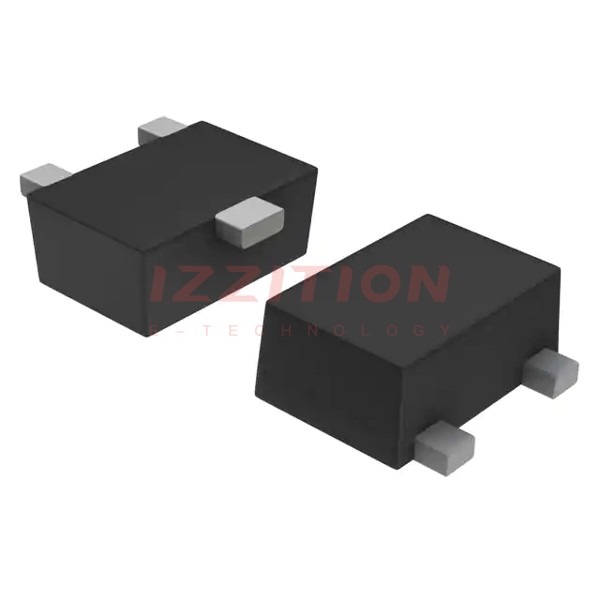

TRANS PNP 60V 0.6A SOT723
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MMBT2907AM3T5G is a PNP general-purpose transistor manufactured by ON Semiconductor. It is designed for low-power surface mount applications where board space is limited. This transistor is housed in the SOT-723 surface mount package, making it ideal for compact designs. The device is AEC-Q101 qualified and PPAP capable, ensuring its suitability for automotive and other applications requiring unique site and control change requirements. Additionally, it is Pb-free, halogen-free/BFR-free, and RoHS compliant, aligning with environmental standards.

Key Specifications

Characteristic Symbol Value Unit
Collector-Emitter Voltage VCEO -60 Vdc
Collector-Base Voltage VCBO -60 Vdc
Emitter-Base Voltage VEBO -5.0 Vdc
Collector Current - Continuous IC -600 mAdc
Total Device Dissipation (FR-5 Board, TA = 25°C) PD 265 mW
Thermal Resistance, Junction-to-Ambient (FR-5 Board) RJA 470 °C/W
Junction and Storage Temperature TJ, Tstg -55 to +150 °C
DC Current Gain (IC = -0.1 mA, VCE = -10 V) hFE 75 - 100
Collector-Emitter Saturation Voltage (IC = -150 mA, IB = -15 mA) VCE(sat) -0.4 - 1.6 Vdc
Base-Emitter Saturation Voltage (IC = -150 mA, IB = -15 mA) VBE(sat) -1.3 - 2.6 Vdc
Current-Gain - Bandwidth Product (IC = -50 mA, VCE = -20 V, f = 100 MHz) fT 200 MHz

Key Features

  • Compact Package: Housed in the SOT-723 surface mount package, reducing board space.
  • AEC-Q101 Qualified and PPAP Capable: Suitable for automotive and other applications requiring unique site and control change requirements.
  • Environmental Compliance: Pb-free, halogen-free/BFR-free, and RoHS compliant.
  • Low Power Consumption: Designed for low-power surface mount applications.
  • High Reliability: Ensures reliable performance in various operating conditions.

Applications

  • General Purpose Amplifier Applications: Suitable for a wide range of amplifier circuits.
  • Automotive Electronics: Qualified for use in automotive systems due to AEC-Q101 certification.
  • Consumer Electronics: Used in various consumer electronic devices where compact and reliable transistor performance is required.
  • Industrial Control Systems: Applicable in industrial control circuits where durability and compliance with environmental standards are necessary.

Q & A

  1. What is the maximum collector-emitter voltage for the MMBT2907AM3T5G transistor?

    The maximum collector-emitter voltage (VCEO) is -60 Vdc.

  2. What is the package type of the MMBT2907AM3T5G transistor?

    The transistor is housed in the SOT-723 surface mount package.

  3. Is the MMBT2907AM3T5G transistor AEC-Q101 qualified?

    Yes, it is AEC-Q101 qualified and PPAP capable.

  4. What are the environmental compliance standards for the MMBT2907AM3T5G transistor?

    The transistor is Pb-free, halogen-free/BFR-free, and RoHS compliant.

  5. What is the typical DC current gain (hFE) for the MMBT2907AM3T5G transistor?

    The typical DC current gain (hFE) is 75 to 100 at IC = -0.1 mA and VCE = -10 V.

  6. What is the collector-emitter saturation voltage (VCE(sat)) for the MMBT2907AM3T5G transistor?

    The collector-emitter saturation voltage (VCE(sat)) is -0.4 to -1.6 Vdc at IC = -150 mA and IB = -15 mA.

  7. What is the current-gain - bandwidth product (fT) for the MMBT2907AM3T5G transistor?

    The current-gain - bandwidth product (fT) is 200 MHz at IC = -50 mA, VCE = -20 V, and f = 100 MHz.

  8. What are the typical applications for the MMBT2907AM3T5G transistor?

    It is used in general purpose amplifier applications, automotive electronics, consumer electronics, and industrial control systems.

  9. What is the maximum collector current for the MMBT2907AM3T5G transistor?

    The maximum continuous collector current (IC) is -600 mA.

  10. What is the thermal resistance, junction-to-ambient (RJA) for the MMBT2907AM3T5G transistor on an FR-5 board?

    The thermal resistance, junction-to-ambient (RJA), is 470 °C/W on an FR-5 board.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):600 mA
Voltage - Collector Emitter Breakdown (Max):60 V
Vce Saturation (Max) @ Ib, Ic:1.6V @ 50mA, 500mA
Current - Collector Cutoff (Max):10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 150mA, 10V
Power - Max:265 mW
Frequency - Transition:200MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-723
Supplier Device Package:SOT-723
