MJF45H11G
  • Share:

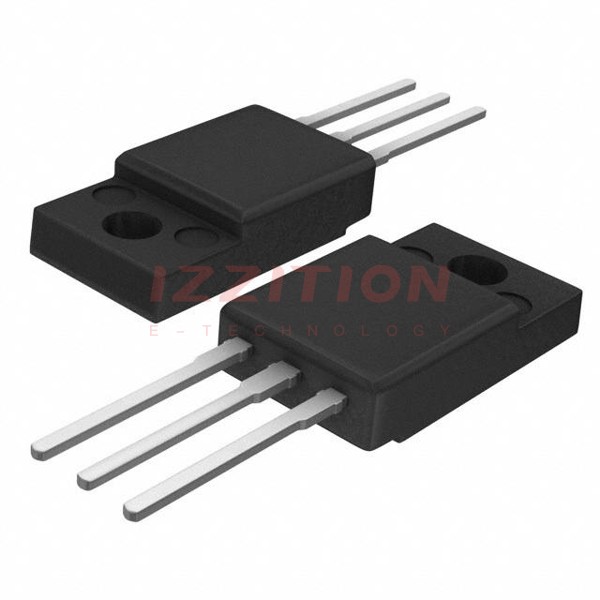

onsemi MJF45H11G

Manufacturer No:
MJF45H11G
Manufacturer:
onsemi
Package:
Bulk
Description:
TRANS PNP 80V 10A TO220FP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MJF45H11G is a PNP power transistor manufactured by onsemi, designed for general-purpose power amplification and switching applications. This transistor is part of a complementary pair, along with the MJF44H11 (NPN), which simplifies design processes in various power-related applications. The MJF45H11G is housed in a TO-220 FULLPACK (Pb-Free) package, making it suitable for environments where lead-free components are required.

Key Specifications

Characteristic Symbol Value Unit
Collector-Emitter Voltage VCEO 80 Vdc
Emitter-Base Voltage VEB 5 Vdc
Collector Current - Continuous IC 10 Adc
Collector Current - Peak IC 20 Adc
Total Power Dissipation @ TC = 25°C PD 36 W
Thermal Resistance, Junction-to-Case RJC 3.5 °C/W
Thermal Resistance, Junction-to-Ambient RJA 62.5 °C/W
Collector-Emitter Saturation Voltage VCE(sat) 1.0 Vdc @ 8 A
Base-Emitter Saturation Voltage VBE(sat) 1.5 Vdc @ 8 A
Gain Bandwidth Product fT 40 MHz

Key Features

  • Low Collector-Emitter Saturation Voltage: VCE(sat) = 1.0 V (Max) @ 8.0 A, ensuring efficient operation in power amplification and switching applications.
  • Fast Switching Speeds: The transistor features fast switching times, including delay and rise times, and fall times, making it suitable for high-frequency applications.
  • Complementary Pairs: The MJF45H11G is part of a complementary pair with the MJF44H11 (NPN), simplifying design processes and enhancing system performance.
  • Pb-Free Packages: Available in Pb-Free TO-220 FULLPACK packages, making it compliant with environmental regulations.

Applications

The MJF45H11G is designed for various power-related applications, including:

  • Output or driver stages in switching regulators and converters.
  • Power amplifiers and other general-purpose power amplification and switching applications.

Q & A

  1. What is the collector-emitter voltage rating of the MJF45H11G?

    The collector-emitter voltage (VCEO) is rated at 80 Vdc.

  2. What is the maximum continuous collector current for the MJF45H11G?

    The maximum continuous collector current (IC) is 10 Adc.

  3. What is the total power dissipation of the MJF45H11G at 25°C?

    The total power dissipation (PD) at TC = 25°C is 36 W.

  4. What is the thermal resistance from junction to case for the MJF45H11G?

    The thermal resistance from junction to case (RJC) is 3.5 °C/W.

  5. What is the collector-emitter saturation voltage of the MJF45H11G?

    The collector-emitter saturation voltage (VCE(sat)) is 1.0 Vdc @ 8 A.

  6. What is the gain bandwidth product of the MJF45H11G?

    The gain bandwidth product (fT) is 40 MHz.

  7. In what package is the MJF45H11G available?

    The MJF45H11G is available in a TO-220 FULLPACK (Pb-Free) package.

  8. What are some typical applications of the MJF45H11G?

    Typical applications include output or driver stages in switching regulators, converters, and power amplifiers.

  9. Does the MJF45H11G have a complementary NPN transistor?
  10. What is the operating junction temperature range for the MJF45H11G?

    The operating junction temperature range is -55°C to 150°C.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):10 A
Voltage - Collector Emitter Breakdown (Max):80 V
Vce Saturation (Max) @ Ib, Ic:1V @ 400mA, 8A
Current - Collector Cutoff (Max):1µA
DC Current Gain (hFE) (Min) @ Ic, Vce:40 @ 4A, 1V
Power - Max:2 W
Frequency - Transition:40MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack
Supplier Device Package:TO-220FP
0 Remaining View Similar

In Stock

$2.14
228

Please send RFQ , we will respond immediately.

Same Series
MJF45H11G
MJF45H11G
TRANS PNP 80V 10A TO220FP
MJF44H11
MJF44H11
TRANS NPN 80V 10A TO220FP
MJF45H11
MJF45H11
TRANS PNP 80V 10A TO220FP

Similar Products

Part Number MJF45H11G MJF44H11G MJF45H11
Manufacturer onsemi onsemi onsemi
Product Status Active Active Obsolete
Transistor Type PNP NPN PNP
Current - Collector (Ic) (Max) 10 A 10 A 10 A
Voltage - Collector Emitter Breakdown (Max) 80 V 80 V 80 V
Vce Saturation (Max) @ Ib, Ic 1V @ 400mA, 8A 1V @ 400mA, 8A 1V @ 400mA, 8A
Current - Collector Cutoff (Max) 1µA 1µA 1µA
DC Current Gain (hFE) (Min) @ Ic, Vce 40 @ 4A, 1V 40 @ 4A, 1V 40 @ 4A, 1V
Power - Max 2 W 2 W 2 W
Frequency - Transition 40MHz 50MHz 40MHz
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole
Package / Case TO-220-3 Full Pack TO-220-3 Full Pack TO-220-3 Full Pack
Supplier Device Package TO-220FP TO-220FP TO-220FP
