Overview

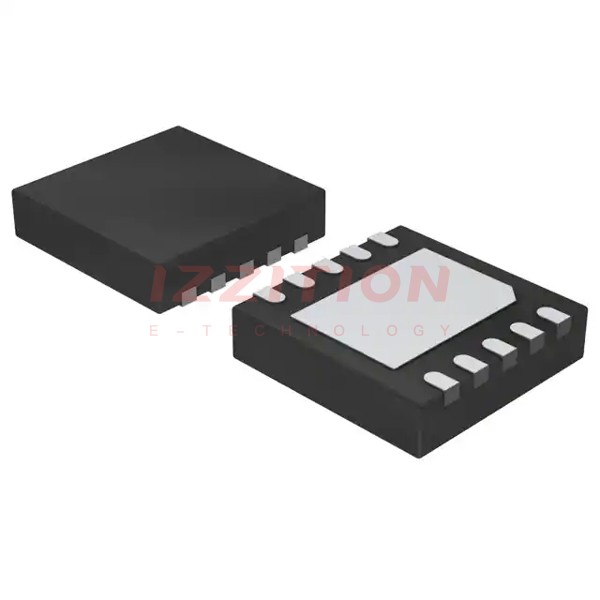

The ESD1014MUTAG is a low capacitance ESD protection diode array designed by onsemi to protect high-speed data lines from electrostatic discharge (ESD), electrical fast transient (EFT), and lightning surges. This device is particularly suited for applications requiring high-speed data line protection due to its low capacitance and robust ESD protection capabilities.
Key Specifications
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Reverse Working Voltage | VRWM | - | - | 3.3 | V |
| Breakdown Voltage | VBR | 5.0 | 5.3 | - | V |
| Reverse Leakage Current | IR | - | - | 5.0 μA | A |
| Clamping Voltage (IPP = 1 A) | VC | - | 6.2 | - | V |
| Clamping Voltage (IPP = 10 A) | VC | - | 9.0 | - | V |
| Maximum Peak Pulse Current | IPP | - | - | 30 | A |
| Junction Capacitance (VR = 0 V, f = 1 MHz) | CJ | 3.8 | - | 5.0 | pF |
| Operating Junction Temperature Range | TJ | -40 | - | 125 | °C |
| Storage Temperature Range | Tstg | -55 | - | 150 | °C |
Key Features
- Low capacitance (6 pF maximum between I/O lines and GND)
- ESD rating of Class 3B (exceeding 8 kV) per Human Body Model and Class C (exceeding 400 V) per Machine Model
- Protection for IEC 61000-4-2 (ESD) Level 4 - 30 kV (Contact)
- SZ prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable
- Pb-free device
Applications
- High-speed communication line protection
- USB 1.1 and 2.0 power and data line protection
- Digital Video Interface (DVI)
- Monitors and flat panel displays
- T1/E1 and T3/E3
- 10/100/1000 Ethernet protection
- Gigabit Ethernet protection
Q & A
- What is the primary function of the ESD1014MUTAG?
The primary function of the ESD1014MUTAG is to protect high-speed data lines from electrostatic discharge (ESD), electrical fast transient (EFT), and lightning surges. - What is the maximum capacitance between I/O lines and GND?
The maximum capacitance between I/O lines and GND is 6 pF. - What are the ESD ratings for the ESD1014MUTAG?
The ESD ratings are Class 3B (exceeding 8 kV) per Human Body Model and Class C (exceeding 400 V) per Machine Model. - What standards does the ESD1014MUTAG comply with for ESD protection?
The device complies with IEC 61000-4-2 (ESD) Level 4 - 30 kV (Contact). - Is the ESD1014MUTAG suitable for automotive applications?
Yes, it is suitable for automotive applications and is AEC-Q101 qualified and PPAP capable. - What is the operating junction temperature range of the ESD1014MUTAG?
The operating junction temperature range is -40°C to +125°C. - What is the storage temperature range of the ESD1014MUTAG?
The storage temperature range is -55°C to +150°C. - What is the maximum peak pulse current the ESD1014MUTAG can handle?
The maximum peak pulse current is 30 A. - Is the ESD1014MUTAG a Pb-free device?
Yes, the ESD1014MUTAG is a Pb-free device. - What are some typical applications of the ESD1014MUTAG?
Typical applications include high-speed communication line protection, USB power and data line protection, DVI, monitors and flat panel displays, T1/E1 and T3/E3, and Ethernet protection.
