BC858BDW1T1
  • Share:

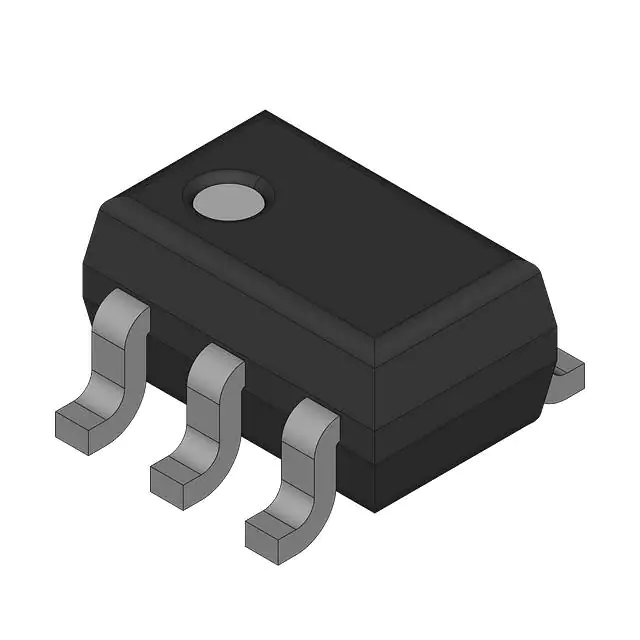

onsemi BC858BDW1T1

Manufacturer No:
BC858BDW1T1
Manufacturer:
onsemi
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC858BDW1T1 is a Dual PNP Bipolar Transistor designed for general purpose amplifier applications. It is housed in the SOT-363/SC-88 package, which is optimized for low power surface mount applications. This transistor is part of onsemi's range of general purpose transistors and is suitable for various electronic circuits requiring reliable and efficient amplifier functionality.

Key Specifications

Attribute Value
Transistor Type Dual PNP
Maximum DC Collector Current 100 mA
Maximum Collector Emitter Voltage 30 V
Package Type SOT-363/SC-88
Mounting Type Surface Mount
Maximum Power Dissipation 380 mW
Maximum Emitter Base Voltage 6 V
Pin Count 6
Number of Elements per Chip 2
Dimensions 2.2 x 1.35 x 0.9 mm
Maximum Operating Temperature +150 °C

Key Features

  • Pb-Free, Halogen Free/BFR Free, and RoHS Compliant packages available.
  • AEC-Q101 Qualified and PPAP Capable for automotive and other applications requiring unique site and control change requirements.
  • Low VCE(sat) for efficient operation.
  • Compact SOT-363/SC-88 package suitable for surface mount applications.
  • High collector current and collector-emitter voltage ratings.

Applications

  • General purpose amplifier applications.
  • Automotive electronics requiring AEC-Q101 qualification and PPAP capability.
  • Surface mount designs where space is limited.
  • Low power electronic circuits such as audio amplifiers, switching circuits, and signal processing.

Q & A

  1. What is the BC858BDW1T1 transistor used for?

    The BC858BDW1T1 is used for general purpose amplifier applications.

  2. What package type does the BC858BDW1T1 come in?

    The BC858BDW1T1 is housed in the SOT-363/SC-88 package.

  3. What is the maximum DC collector current of the BC858BDW1T1?

    The maximum DC collector current is 100 mA.

  4. Is the BC858BDW1T1 RoHS compliant?
  5. What is the maximum operating temperature of the BC858BDW1T1?

    The maximum operating temperature is +150 °C.

  6. Is the BC858BDW1T1 suitable for automotive applications?
  7. What is the maximum power dissipation of the BC858BDW1T1?

    The maximum power dissipation is 380 mW.

  8. How many elements are in the BC858BDW1T1 chip?

    The chip contains 2 elements.

  9. What are the dimensions of the BC858BDW1T1 package?

    The dimensions are 2.2 x 1.35 x 0.9 mm.

  10. What is the maximum emitter base voltage of the BC858BDW1T1?

    The maximum emitter base voltage is 6 V.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$0.02
25,704

Please send RFQ , we will respond immediately.
