Overview

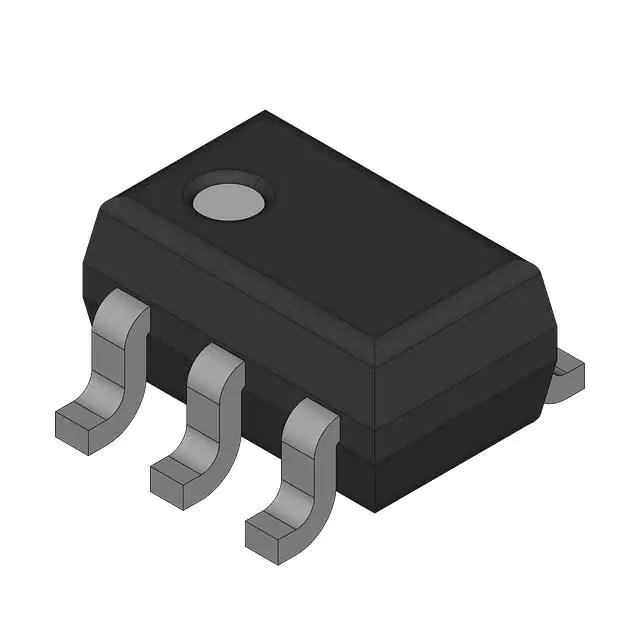

The BC848BPDW1T1 is a dual general-purpose transistor produced by ON Semiconductor. It is part of the BC846BPDW1, BC847BPDW1, and BC848CPDW1 series, designed for low power surface mount applications. These transistors are housed in the SOT-363/SC-88 package and are suitable for general-purpose amplifier applications. They are AEC-Q101 qualified and PPAP capable, making them suitable for automotive and other applications requiring unique site and control change requirements. The devices are Pb-free, halogen-free/BFR-free, and RoHS compliant.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Collector-Base Breakdown Voltage | V(BR)CBO | -80 | V |
| Collector-Emitter Breakdown Voltage | V(BR)CEO | -30 | V |
| Emitter-Base Breakdown Voltage | V(BR)EBO | -6.0 | V |
| Collector Current - Continuous | IC | 100 | mAdc |
| Collector Current - Peak | ICM | 200 | mAdc |
| Base-Emitter Saturation Voltage | VBE(sat) | -0.7 to -0.9 | V |
| Collector-Emitter Saturation Voltage | VCE(sat) | -0.024 to -0.3 | V |
| Current-Gain Bandwidth Product | fT | 100 | MHz |
| Operating Temperature | TJ | -55 to +150 | °C |
| Power Dissipation | PD | 150 | mW |
| Package | SOT-363/SC-88 |
Key Features
- AEC-Q101 qualified and PPAP capable, making them suitable for automotive and other applications requiring unique site and control change requirements.
- Pb-free, halogen-free/BFR-free, and RoHS compliant.
- Housed in the SOT-363/SC-88 package, designed for low power surface mount applications.
- General-purpose amplifier applications.
- High current-gain bandwidth product (fT) of 100 MHz.
Applications
The BC848BPDW1T1 is designed for general-purpose amplifier applications. It is particularly useful in low power surface mount designs and is suitable for automotive and other applications that require specific quality and reliability standards. These transistors can be used in a variety of electronic circuits where small signal amplification is required.
Q & A
- What is the package type of the BC848BPDW1T1 transistor? The BC848BPDW1T1 is housed in the SOT-363/SC-88 package.
- What are the operating temperature ranges for the BC848BPDW1T1? The operating temperature range is from -55°C to +150°C.
- Is the BC848BPDW1T1 RoHS compliant? Yes, the BC848BPDW1T1 is Pb-free, halogen-free/BFR-free, and RoHS compliant.
- What is the maximum collector current for the BC848BPDW1T1? The maximum collector current is 100 mA.
- What is the current-gain bandwidth product (fT) of the BC848BPDW1T1? The current-gain bandwidth product (fT) is 100 MHz.
- What are the typical applications for the BC848BPDW1T1? The BC848BPDW1T1 is used in general-purpose amplifier applications and is suitable for automotive and other low power surface mount designs.
- Is the BC848BPDW1T1 AEC-Q101 qualified? Yes, the BC848BPDW1T1 is AEC-Q101 qualified and PPAP capable.
- What is the maximum power dissipation for the BC848BPDW1T1? The maximum power dissipation is 150 mW.
- What is the collector-emitter breakdown voltage for the BC848BPDW1T1? The collector-emitter breakdown voltage is -30 V.
- What is the base-emitter saturation voltage for the BC848BPDW1T1? The base-emitter saturation voltage ranges from -0.7 to -0.9 V.
