Overview

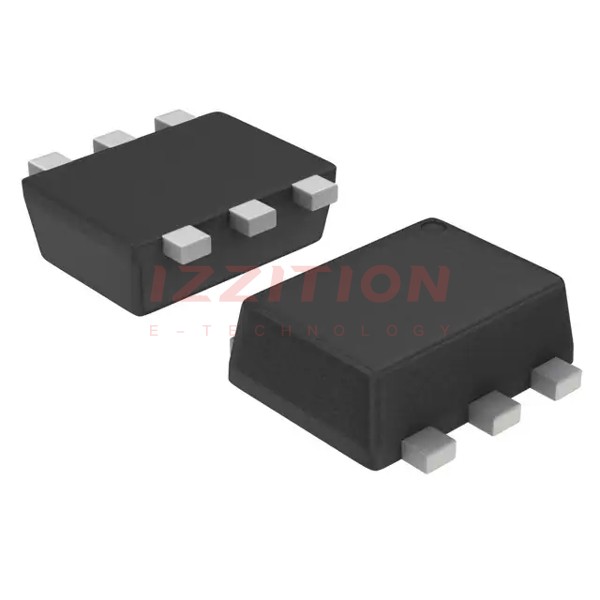

The BAS16DXV6T5 is a dual switching diode produced by ON Semiconductor. This component is designed for general switching applications and is known for its high reliability and performance. The BAS16DXV6T5 is AEC-Q101 qualified and PPAP capable, making it suitable for automotive and other applications requiring stringent quality standards. It is also Pb-free, halogen-free/BFR-free, and RoHS compliant, ensuring environmental sustainability.
Key Specifications
| Characteristic | Symbol | Max Unit |
|---|---|---|
| Continuous Reverse Voltage | VR | 75 V |
| Recurrent Peak Forward Current | IF | 200 mA |
| Peak Forward Surge Current (Pulse Width = 10 μs) | IFM(surge) | 500 mA |
| Total Device Dissipation (TA = 25°C, One Junction Heated) | PD | 357 mW |
| Thermal Resistance, Junction-to-Ambient (One Junction Heated) | RJA | 350 °C/W |
| Total Device Dissipation (TA = 25°C, Both Junctions Heated) | PD | 500 mW |
| Thermal Resistance, Junction-to-Ambient (Both Junctions Heated) | RJA | 250 °C/W |
| Junction and Storage Temperature | TJ, Tstg | -55 to +150 °C |
| Forward Voltage (IF = 1.0 mA, 10 mA, 50 mA, 150 mA) | VF | 715 mV, 866 mV, 1000 mV, 1250 mV |
| Reverse Current (VR = 75 V, TJ = 150°C, VR = 25 V, TJ = 150°C) | IR | 1.0 μA, 50 μA, 30 μA |
| Capacitance (VR = 0, f = 1.0 MHz) | CD | 2.0 pF |
| Reverse Recovery Time (IF = IR = 10 mA, RL = 50 Ω) | trr | 6.0 ns |
| Stored Charge (IF = 10 mA to VR = 6.0 V, RL = 500 Ω) | QS | 45 pC |
| Forward Recovery Voltage (IF = 10 mA, tr = 20 ns) | VFR | 1.75 V |
Key Features
- AEC-Q101 qualified and PPAP capable, suitable for automotive and other stringent applications.
- Pb-free, halogen-free/BFR-free, and RoHS compliant.
- High reliability and performance in general switching applications.
- Low forward voltage drop and low reverse current.
- Fast reverse recovery time and low stored charge.
- Compact SOT-563 package with a 2 mm or 4 mm pitch, suitable for space-constrained designs.
Applications
- Automotive systems requiring high reliability and compliance with automotive standards.
- General switching applications in consumer electronics.
- Power supplies and DC-DC converters.
- Audio and video equipment.
- Industrial control systems.
Q & A
- What is the maximum continuous reverse voltage of the BAS16DXV6T5?
The maximum continuous reverse voltage is 75 V.
- What is the peak forward surge current of the BAS16DXV6T5?
The peak forward surge current is 500 mA for a pulse width of 10 μs.
- What is the thermal resistance, junction-to-ambient for one junction heated?
The thermal resistance, junction-to-ambient for one junction heated is 350 °C/W.
- What is the junction and storage temperature range of the BAS16DXV6T5?
The junction and storage temperature range is -55 to +150 °C.
- What is the forward voltage drop at different current levels?
The forward voltage drop is 715 mV at 1.0 mA, 866 mV at 10 mA, 1000 mV at 50 mA, and 1250 mV at 150 mA.
- What is the reverse recovery time of the BAS16DXV6T5?
The reverse recovery time is 6.0 ns.
- Is the BAS16DXV6T5 RoHS compliant?
Yes, the BAS16DXV6T5 is Pb-free, halogen-free/BFR-free, and RoHS compliant.
- What package types are available for the BAS16DXV6T5?
The BAS16DXV6T5 is available in the SOT-563 package with a 2 mm or 4 mm pitch.
- What are some typical applications of the BAS16DXV6T5?
Typical applications include automotive systems, general switching in consumer electronics, power supplies, audio and video equipment, and industrial control systems.
- Is the BAS16DXV6T5 AEC-Q101 qualified?
Yes, the BAS16DXV6T5 is AEC-Q101 qualified and PPAP capable.
