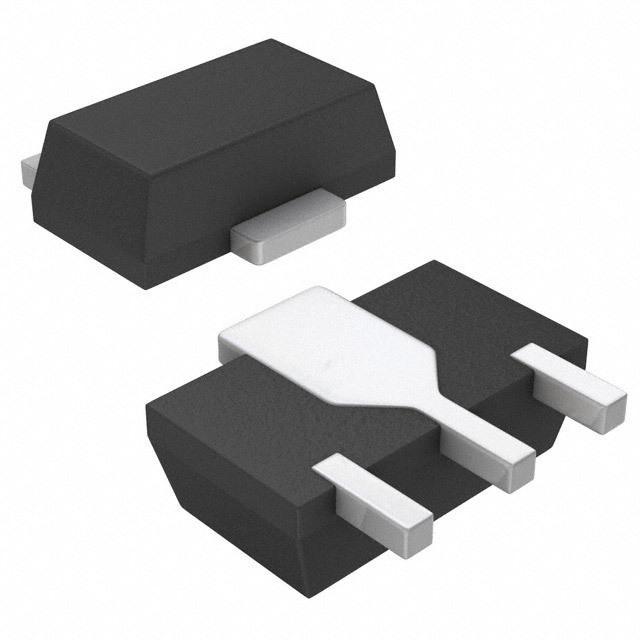

onsemi 2SC6096-TD-E

Manufacturer No:
2SC6096-TD-E
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS NPN 100V 2A PCP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2SC6096-TD-E is a bipolar junction transistor (BJT) produced by onsemi. It is an NPN transistor designed for high-voltage switching applications, featuring low collector-to-emitter saturation voltage (VCE(sat)) and high-speed switching capabilities. This transistor is part of onsemi's general-purpose and low VCE(sat) transistor family, making it suitable for a variety of power management and switching roles.

Key Specifications

ParameterValue
Transistor TypeNPN
Collector-Base Voltage (Vcbo)100 V
Collector-Emitter Voltage (Vceo)100 V
Emitter-Base Voltage (Vebo)5 V
Collector Current (Ic)2 A
Collector-to-Emitter Saturation Voltage (Vce(sat))Low Vce(sat)
Transition Frequency (ft)300 MHz
Power Dissipation (Pd)1.3 W
Package TypeSurface Mount PCP

Key Features

  • Adoption of FBET and MBIT process for enhanced performance
  • Large current capacity of up to 2 A
  • Low collector-to-emitter saturation voltage (Vce(sat)) for efficient switching
  • High-speed switching capabilities with a transition frequency of 300 MHz
  • Surface mount PCP package for ease of integration

Applications

The 2SC6096-TD-E is suitable for various high-voltage switching applications, including:

  • DC/DC converters
  • Relay drivers
  • Other power management and switching roles where high current and low Vce(sat) are required.

Q & A

  1. What is the collector current rating of the 2SC6096-TD-E?
    The collector current rating is 2 A.
  2. What is the collector-to-emitter voltage rating of the 2SC6096-TD-E?
    The collector-to-emitter voltage rating is 100 V.
  3. What is the transition frequency of the 2SC6096-TD-E?
    The transition frequency is 300 MHz.
  4. What is the power dissipation of the 2SC6096-TD-E?
    The power dissipation is 1.3 W.
  5. What package type does the 2SC6096-TD-E use?
    The package type is surface mount PCP.
  6. What are the key features of the 2SC6096-TD-E?
    The key features include adoption of FBET and MBIT process, large current capacity, low Vce(sat), high-speed switching, and surface mount PCP package.
  7. What are some common applications of the 2SC6096-TD-E?
    Common applications include DC/DC converters, relay drivers, and other power management and switching roles.
  8. Why is the 2SC6096-TD-E suitable for high-voltage switching applications?
    It is suitable due to its low Vce(sat), high current capacity, and high-speed switching capabilities.
  9. Where can I find detailed specifications for the 2SC6096-TD-E?
    Detailed specifications can be found on the onsemi website, Digi-Key, and other electronic component distributors.
  10. What is the emitter-base voltage rating of the 2SC6096-TD-E?
    The emitter-base voltage rating is 5 V.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):2 A
Voltage - Collector Emitter Breakdown (Max):100 V
Vce Saturation (Max) @ Ib, Ic:150mV @ 100mA, 1A
Current - Collector Cutoff (Max):1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:300 @ 100mA, 5V
Power - Max:1.3 W
Frequency - Transition:300MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:PCP
