Overview

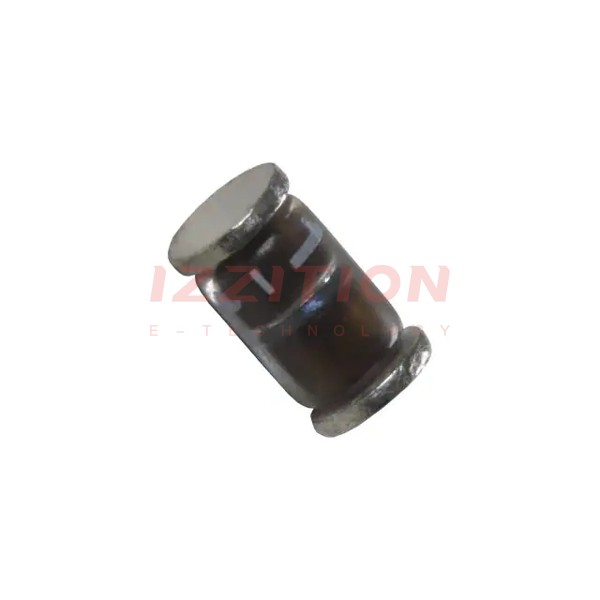

The PRLL5817,135 is a Schottky barrier diode manufactured by NXP USA Inc. This diode is fabricated in planar technology and encapsulated in a hermetically sealed glass SMD package, specifically the SOD87 package. It is designed to offer low switching losses and fast recovery times, making it suitable for various electronic applications. The PRLL5817 series, including the PRLL5817,135, is part of NXP's portfolio of high-performance semiconductor products.
Key Specifications
| Parameter | Value |
|---|---|
| Maximum DC Reverse Voltage (Vr) | 20 V |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) @ If | 450 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 20 V |
| Capacitance @ Vr, F | 70 pF @ 4 V, 1 MHz |
| Recovery Time | < 500 ns, > 200 mA (Io) |
| Operating Temperature - Junction | 125°C (Max) |
| Package Type | SOD87, MELF |
| Mounting Type | Surface Mount |
Key Features
- Schottky technology for low switching losses and fast recovery times
- Hermetically sealed glass SMD package (SOD87)
- Guard ring protected for enhanced reliability
- Low forward voltage drop (Vf) of 450 mV @ 1 A
- Fast recovery time of < 500 ns, > 200 mA (Io)
- Surface mount capability for easy integration into modern PCB designs
Applications
- Low power, switched-mode power supplies
- Rectifying circuits
- Polarity protection in electronic systems
Q & A
- What is the maximum DC reverse voltage of the PRLL5817,135?
The maximum DC reverse voltage is 20 V. - What is the average rectified current of the PRLL5817,135?
The average rectified current is 1 A. - What is the forward voltage drop (Vf) of the PRLL5817,135 at 1 A?
The forward voltage drop (Vf) is 450 mV @ 1 A. - What is the recovery time of the PRLL5817,135?
The recovery time is < 500 ns, > 200 mA (Io). - What type of package does the PRLL5817,135 come in?
The PRLL5817,135 comes in a SOD87, MELF package. - What is the operating temperature range of the PRLL5817,135?
The operating temperature range is up to 125°C (Max). - What are some common applications of the PRLL5817,135?
Common applications include low power, switched-mode power supplies, rectifying circuits, and polarity protection. - Is the PRLL5817,135 suitable for surface mount?
Yes, the PRLL5817,135 is designed for surface mount. - What is the capacitance of the PRLL5817,135 at 4 V, 1 MHz?
The capacitance is 70 pF @ 4 V, 1 MHz. - Is the PRLL5817,135 RoHS compliant?
Yes, the PRLL5817,135 is RoHS compliant.
