PDTC144EU/DG/B3115
  • Share:

NXP USA Inc. PDTC144EU/DG/B3115

Manufacturer No:
PDTC144EU/DG/B3115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

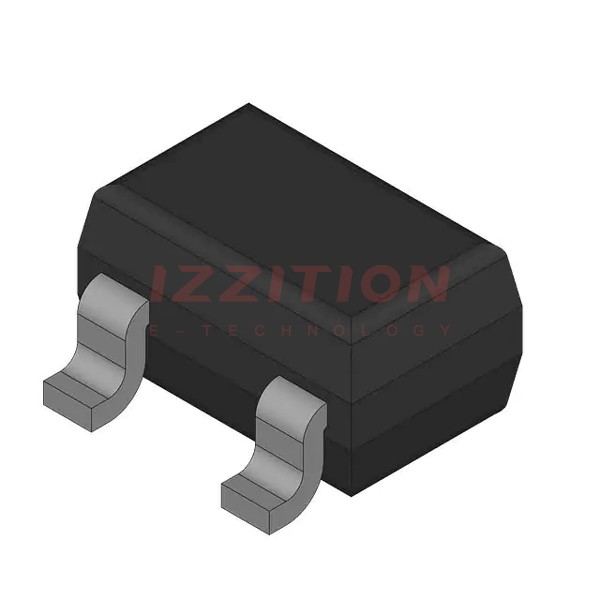

The PDTC144EU/DG/B3115 is an NPN resistor-equipped transistor (RET) manufactured by Nexperia, which is a part of the NXP Semiconductors family. This transistor is packaged in a small SOT323 (SC-70) surface-mount device (SMD) plastic package, making it ideal for space-constrained applications. It features built-in bias resistors, which simplify circuit design and reduce the component count and pick-and-place costs.

Key Specifications

ParameterConditionsMinTypMaxUnit
VCEO (Collector-Emitter Voltage)Open Base--50V
IO (Output Current)---100mA
R1 (Bias Resistor 1)-334761kΩ
R2/R1 (Bias Resistor Ratio)-0.811.2-
VCBO (Collector-Base Voltage)Open Emitter--50V
VEBO (Emitter-Base Voltage)Open Collector--10V
VI (Input Voltage)--10-40V
Ptot (Total Power Dissipation)Tamb ≤ 25 °C--200mW
Tj (Junction Temperature)---150°C
Tamb (Ambient Temperature)--65-150°C
Tstg (Storage Temperature)--65-150°C

Key Features

  • 100 mA output current capability
  • Built-in bias resistors (R1 = 47 kΩ, R2 = 47 kΩ)
  • Simplifies circuit design by reducing the need for external resistors
  • Reduces component count and pick-and-place costs
  • AEC-Q101 qualified, making it suitable for automotive applications
  • Small SOT323 (SC-70) surface-mount package

Applications

  • Digital applications in industrial segments
  • Control of IC inputs
  • Switching loads
  • Cost-saving alternative for BC847/857 series in digital applications
  • Automotive and industrial segments

Q & A

  1. What is the PDTC144EU/DG/B3115 transistor? The PDTC144EU/DG/B3115 is an NPN resistor-equipped transistor (RET) in a SOT323 (SC-70) package.
  2. Who manufactures the PDTC144EU/DG/B3115? The PDTC144EU/DG/B3115 is manufactured by Nexperia, part of the NXP Semiconductors family.
  3. What are the key features of the PDTC144EU/DG/B3115? Key features include 100 mA output current capability, built-in bias resistors, and a small SOT323 package.
  4. What are the typical applications of the PDTC144EU/DG/B3115? Typical applications include digital applications in industrial segments, control of IC inputs, switching loads, and as a cost-saving alternative for BC847/857 series.
  5. Is the PDTC144EU/DG/B3115 suitable for automotive applications? Yes, it is AEC-Q101 qualified, making it suitable for automotive applications.
  6. What is the maximum collector-emitter voltage (VCEO) of the PDTC144EU/DG/B3115? The maximum VCEO is 50 V.
  7. What is the maximum output current (IO) of the PDTC144EU/DG/B3115? The maximum IO is 100 mA.
  8. What are the values of the built-in bias resistors? The built-in bias resistors are R1 = 47 kΩ and R2 = 47 kΩ.
  9. What is the thermal resistance from junction to ambient (Rth(j-a))? The thermal resistance from junction to ambient is up to 625 K/W.
  10. What is the storage temperature range for the PDTC144EU/DG/B3115? The storage temperature range is -65 °C to 150 °C.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
