Overview

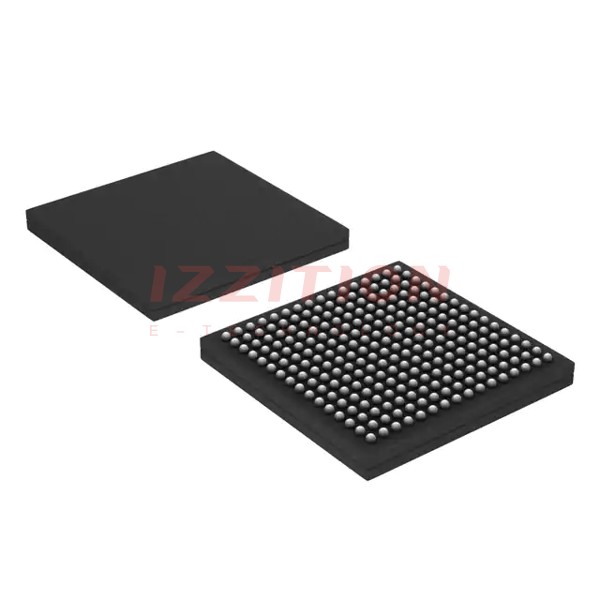

The MK70FN1M0VMJ12 is a high-performance 32-bit microcontroller from NXP Semiconductors, part of the Kinetis K70 series. This microcontroller is designed to meet the demands of modern embedded projects, particularly in industrial, automotive, and consumer applications. It features a 32-bit ARM Cortex-M4 core, operating at a maximum frequency of 120 MHz, and is housed in a 256-pin MAPBGA package. The device is equipped with 1 MB of flash memory and 128 KB of RAM, along with a wide range of peripherals and communication interfaces, making it suitable for applications requiring advanced processing, storage, and connectivity.
Key Specifications
| Parameter | Specification |
|---|---|
| Core | 32-bit ARM Cortex-M4 |
| Operating Frequency | Up to 120 MHz |
| Flash Memory | 1 MB |
| RAM | 128 KB |
| Package | 256-pin MAPBGA |
| Supply Voltage | 1.71V to 3.6V |
| Operating Temperature | -40°C to 105°C |
| Communication Interfaces | USB, CAN, Ethernet, I2C, SPI, UART/USART |
| Analog Peripherals | ADC, DAC, PWM |
Key Features
- Secure Boot Loader: Ensures reliable startup and secure firmware updates.
- AES Encryption: Provides data protection through hardware encryption.
- Peripheral Interfaces: Supports a wide range of communication interfaces including USB, CAN, Ethernet, I2C, and SPI.
- Real-time Operating System Support: Suitable for critical applications requiring precise timing and control.
- Data Compression and Decompression: Optimizes data storage and transmission efficiency.
- Power Management: Offers various low-power modes to optimize power consumption based on application needs.
- Advanced Debugging Tools: Facilitates efficient development and debugging of applications.
Applications
- Industrial Automation: Suitable for industrial control systems, motor control tasks, and power management devices.
- Automotive Systems: Used in advanced driver-assistance systems (ADAS), autonomous vehicles, and other high-performance automotive applications.
- Aerospace and Defense: Ideal for applications where reliability, security, and performance are critical.
- Consumer Electronics: Found in digital cameras, home automation products, and other consumer devices requiring high-performance processing and connectivity.
Q & A
- Q: What is the MK70FN1M0VMJ12 microcontroller?
A: The MK70FN1M0VMJ12 is a high-performance 32-bit microcontroller from NXP Semiconductors, part of the Kinetis K70 series, designed for applications requiring advanced processing, storage, and connectivity.
- Q: What is the operating frequency of the MK70FN1M0VMJ12?
A: The MK70FN1M0VMJ12 operates at a maximum frequency of 120 MHz.
- Q: How much flash memory and RAM does the MK70FN1M0VMJ12 have?
A: The MK70FN1M0VMJ12 has 1 MB of flash memory and 128 KB of RAM.
- Q: What communication interfaces does the MK70FN1M0VMJ12 support?
A: The MK70FN1M0VMJ12 supports various communication interfaces including USB, CAN, Ethernet, I2C, SPI, and UART/USART.
- Q: What are the key features of the MK70FN1M0VMJ12?
A: Key features include a secure boot loader, AES encryption, real-time operating system support, data compression and decompression capabilities, and advanced debugging tools.
- Q: What are the typical applications of the MK70FN1M0VMJ12?
A: Typical applications include industrial automation, automotive systems, aerospace and defense, and consumer electronics.
- Q: What is the package type of the MK70FN1M0VMJ12?
A: The MK70FN1M0VMJ12 is housed in a 256-pin MAPBGA package.
- Q: What is the supply voltage range for the MK70FN1M0VMJ12?
A: The supply voltage range is from 1.71V to 3.6V.
- Q: What is the operating temperature range of the MK70FN1M0VMJ12?
A: The operating temperature range is from -40°C to 105°C.
- Q: Does the MK70FN1M0VMJ12 support real-time operating systems?
A: Yes, the MK70FN1M0VMJ12 supports real-time operating systems, making it suitable for critical applications requiring precise timing and control.
