Overview

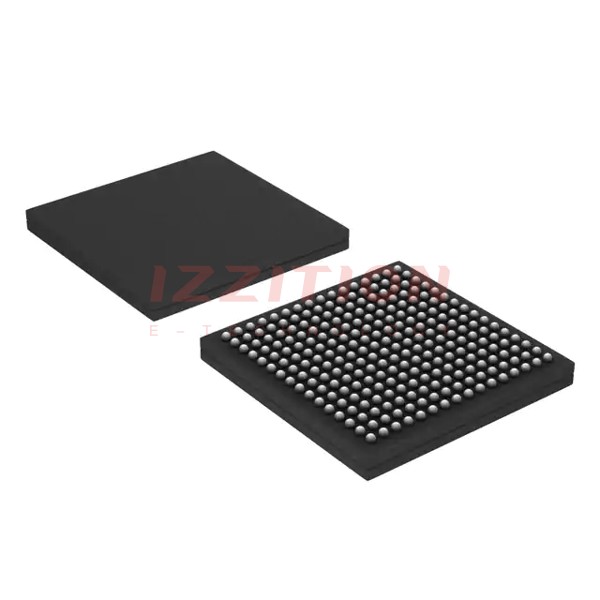

The MK70FX512VMJ12 is a high-performance microcontroller from NXP USA Inc., part of the Kinetis K70 series. This 32-bit ARM® Cortex®-M4 based microcontroller is designed for a wide range of applications requiring high-speed processing, advanced peripherals, and robust security features. It operates at a frequency of up to 120 MHz and is packaged in a 256-MAPPBGA (Maple Pad Package Ball Grid Array).
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Core | ARM® Cortex®-M4 | - |
| Operating Frequency | Up to 120 MHz | - |
| Flash Memory | 512 KB (512K x 8) | - |
| RAM | Up to 128 KB | - |
| Voltage Range | 1.71 to 3.6 V | V |
| Temperature Range | -40 to 105°C | °C |
| Package | 256-MAPPBGA | - |
| Peripherals | USB, Ethernet, DDR, Graphic LCD Controller, Touch Sensor Interface, ADCs, DACs, Timers | - |
| Security Features | Tamper Detect, Secure Storage, Hardware Encryption (DES, 3DES, AES, MD5, SHA-1, SHA-256) | - |
Key Features
- High-performance ARM® Cortex®-M4 core with DSP instructions delivering 1.25 Dhrystone MIPS per MHz.
- Advanced memory options including up to 512 KB program flash memory, 128 KB RAM, and various memory interfaces (EzPort, FlexBus, DDR controller).
- Multiple low-power modes for power optimization and low-leakage wakeup unit.
- Comprehensive set of peripherals including graphic LCD controller, low-power hardware touch sensor interface, four 16-bit SAR ADCs, two 12-bit DACs, and various timers.
- Robust security features such as hardware CRC module, tamper detect, secure storage, and hardware encryption supporting multiple algorithms.
- Support for high-speed interfaces like USB and Ethernet.
Applications
The MK70FX512VMJ12 microcontroller is suitable for a variety of applications that require high processing power, advanced peripherals, and robust security. These include:
- Industrial automation and control systems.
- Medical devices requiring precise and secure data processing.
- Automotive systems, especially those needing high-speed interfaces and robust security features.
- Consumer electronics that demand advanced user interfaces and secure data handling.
- IoT devices that require efficient power management and secure communication protocols.
Q & A
- What is the core type of the MK70FX512VMJ12 microcontroller?
The MK70FX512VMJ12 is based on the ARM® Cortex®-M4 core. - What is the maximum operating frequency of the MK70FX512VMJ12?
The maximum operating frequency is up to 120 MHz. - How much flash memory does the MK70FX512VMJ12 have?
The MK70FX512VMJ12 has 512 KB (512K x 8) of flash memory. - What is the voltage range for the MK70FX512VMJ12?
The voltage range is from 1.71 to 3.6 V. - What are some of the key peripherals available on the MK70FX512VMJ12?
Key peripherals include USB, Ethernet, DDR, graphic LCD controller, touch sensor interface, ADCs, DACs, and various timers. - Does the MK70FX512VMJ12 have any security features?
Yes, it includes tamper detect, secure storage, and hardware encryption supporting multiple algorithms. - What is the package type of the MK70FX512VMJ12?
The package type is 256-MAPPBGA. - What are the temperature operating ranges for the MK70FX512VMJ12?
The temperature range is from -40 to 105°C. - Does the MK70FX512VMJ12 support low-power modes?
Yes, it supports multiple low-power modes for power optimization. - What types of interfaces does the MK70FX512VMJ12 support for memory?
The MK70FX512VMJ12 supports EzPort, FlexBus, DDR controller, and NAND flash controller interfaces).
