Overview
The MK70FX512VMJ15 is a high-performance microcontroller from NXP USA Inc., part of the Kinetis K70 series. It is based on the Arm Cortex-M4 core and is designed to offer a balance of high processing power, low power consumption, and extensive peripheral support. This microcontroller is particularly suited for applications requiring advanced control, communication, and data processing capabilities.
Key Specifications
| Specification | Details |
|---|---|
| Core | Arm Cortex-M4 |
| Frequency | 120-150 MHz |
| Flash Memory | 512 KB |
| SRAM | 128 KB |

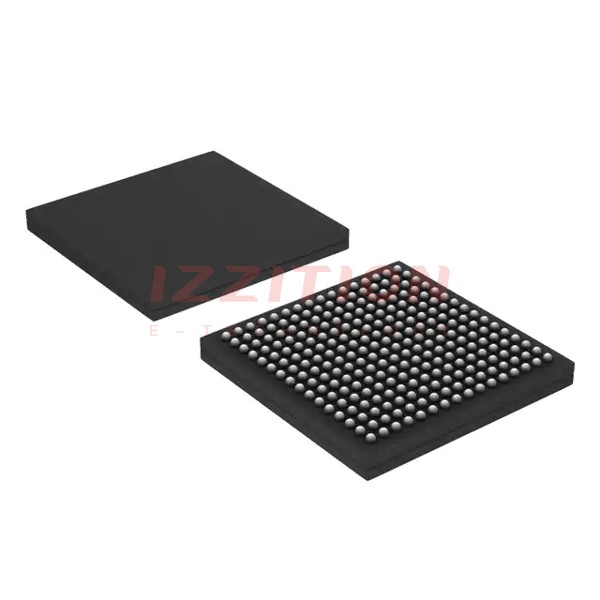

| Package | LBGA256 |
| USB | High-Speed USB |
| Ethernet | Yes |
| DDR Support | Yes |
| Anti-Tamper Features | Yes |
| Compliance | EU RoHS Compliant, Lead Free, Halogen Free |
Key Features
- High-performance Arm Cortex-M4 core with frequencies up to 150 MHz
- 512 KB of flash memory and 128 KB of SRAM
- High-Speed USB and Ethernet capabilities
- Support for DDR memory
- Advanced anti-tamper features for enhanced security
- Low power consumption with various power-saving modes
- Extensive peripheral set including timers, ADCs, DACs, and more
Applications
The MK70FX512VMJ15 is versatile and can be used in a variety of applications, including:
- Control panels and user interfaces
- Navigational displays and GPS systems
- Point of Sale (POS) terminals and financial devices
- Medical monitoring and diagnostic equipment
- Industrial automation and control systems
Q & A
- What is the core architecture of the MK70FX512VMJ15?
The MK70FX512VMJ15 is based on the Arm Cortex-M4 core. - What is the maximum operating frequency of the MK70FX512VMJ15?
The maximum operating frequency is 150 MHz. - How much flash memory does the MK70FX512VMJ15 have?
The MK70FX512VMJ15 has 512 KB of flash memory. - Does the MK70FX512VMJ15 support high-speed USB?
Yes, it supports high-speed USB. - Is the MK70FX512VMJ15 compliant with EU RoHS directives?
Yes, it is EU RoHS compliant, lead-free, and halogen-free. - What type of package does the MK70FX512VMJ15 come in?
The MK70FX512VMJ15 comes in an LBGA256 package. - Does the MK70FX512VMJ15 support DDR memory?
Yes, it supports DDR memory. - What are some of the key applications for the MK70FX512VMJ15?
Key applications include control panels, navigational displays, POS terminals, medical monitoring, and industrial automation. - Does the MK70FX512VMJ15 have anti-tamper features?
Yes, it includes advanced anti-tamper features for enhanced security. - How much SRAM does the MK70FX512VMJ15 have?
The MK70FX512VMJ15 has 128 KB of SRAM.
