Overview

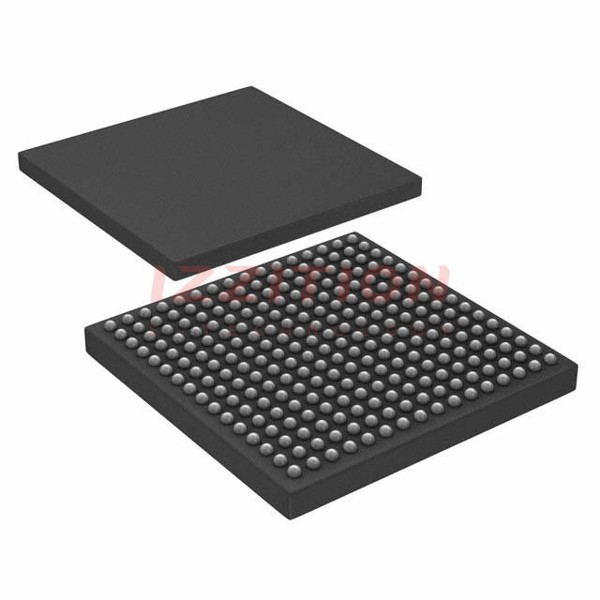

The MK70FN1M0VMJ12R is a microcontroller from NXP USA Inc., part of the K70 sub-family. This device combines a central processing unit (CPU), memory, input/output peripherals, and programmable input/output pins, making it a comprehensive solution for various embedded systems. The microcontroller is based on the ARM® Cortex®-M4 architecture, which provides high performance and low power consumption.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Family | K70 Sub-Family |
| Core | ARM® Cortex®-M4 |
| Flash Memory | 1 MB |
| SRAM | 256 KB |
| Peripheral Interfaces | UART, SPI, I2C, CAN, USB, etc. |
| Operating Voltage | 1.71 V to 3.6 V |
| Operating Temperature | -40°C to 105°C |
| Package Type | MAPBGA-144 |
Key Features
- High-performance ARM® Cortex®-M4 CPU with DSP instructions and floating-point unit.
- 1 MB of flash memory and 256 KB of SRAM.
- Multiple peripheral interfaces including UART, SPI, I2C, CAN, and USB.
- Low power consumption with various power-saving modes.
- Programmable input/output pins for flexible system design.
Applications
The MK70FN1M0VMJ12R microcontroller is suitable for a wide range of applications, including industrial control systems, medical devices, consumer electronics, and automotive systems. Its high performance, low power consumption, and extensive set of peripherals make it an ideal choice for complex embedded systems that require robust processing capabilities and efficient power management.
Q & A
- What is the core architecture of the MK70FN1M0VMJ12R microcontroller?
The core architecture is based on the ARM® Cortex®-M4. - How much flash memory does the MK70FN1M0VMJ12R have?
The microcontroller has 1 MB of flash memory. - What is the operating voltage range of the MK70FN1M0VMJ12R?
The operating voltage range is from 1.71 V to 3.6 V. - What are the key peripheral interfaces available on the MK70FN1M0VMJ12R?
The key peripheral interfaces include UART, SPI, I2C, CAN, and USB. - What is the package type of the MK70FN1M0VMJ12R?
The package type is MAPBGA-144. - What are the typical applications for the MK70FN1M0VMJ12R microcontroller?
Typical applications include industrial control systems, medical devices, consumer electronics, and automotive systems. - Does the MK70FN1M0VMJ12R support low power modes?
Yes, it supports various power-saving modes for low power consumption. - How much SRAM does the MK70FN1M0VMJ12R have?
The microcontroller has 256 KB of SRAM. - What is the operating temperature range of the MK70FN1M0VMJ12R?
The operating temperature range is from -40°C to 105°C. - Is the MK70FN1M0VMJ12R suitable for high-performance applications?
Yes, it is suitable for high-performance applications due to its ARM® Cortex®-M4 CPU with DSP instructions and floating-point unit.
