Overview
The MK70FN1M0VMJ15 is a high-performance microcontroller from NXP USA Inc., part of the Kinetis K70 series. It is based on the Arm Cortex-M4 core and is designed to offer a balance of high processing power, low power consumption, and extensive peripheral support. This microcontroller is suitable for a wide range of applications, including control panels, navigational displays, POS terminals, and medical monitoring devices.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | Up to 150 MHz |
| Program Memory | Up to 1 MB Flash |
| RAM | Up to 128 KB |

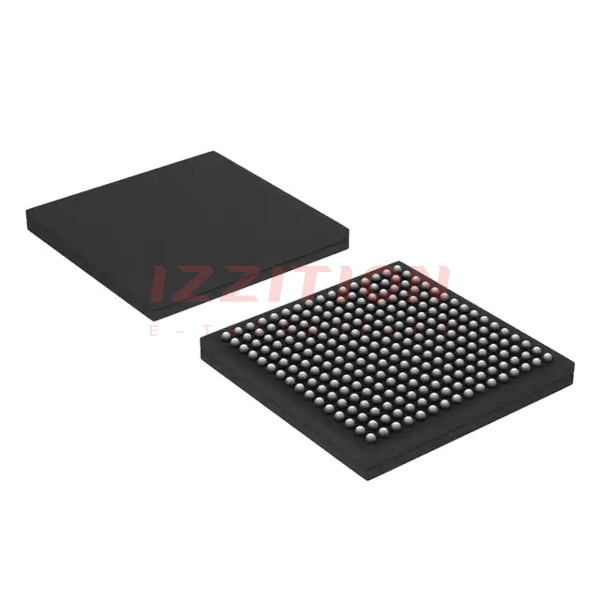

| Package / Case | 256-LBGA (17 mm x 17 mm) |
| Operating Temperature | -40°C to 105°C |
| Supply Voltage | 1.71 V to 3.6 V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART, USB, USB OTG |
| Peripherals | DMA, I2S, LCD, LVD, POR, PWM, WDT |
Key Features
- High-performance Arm Cortex-M4 core with DSP instructions, delivering up to 1.25 Dhrystone MIPS per MHz.
- Multiple low-power modes for power optimization.
- Extensive peripheral support including Ethernet, USB, CANbus, I2C, SPI, and UART.
- Support for up to 128 request sources with a 32-channel DMA controller.
- Multi-master protection for the memory protection unit.
- External bus interface (FlexBus), DDR controller interface, and NAND flash controller interface.
- Real-time clock, periodic interrupt timers, and low-power timer.
- Secure Digital Host Controller (SDHC) and hardware IEEE 1588 capability.
Applications
- Control panels and user interfaces.
- Navigational displays and GPS systems.
- Point of Sale (POS) terminals and retail systems.
- Medical monitoring and diagnostic equipment.
- Industrial automation and control systems.
Q & A
- What is the core processor of the MK70FN1M0VMJ15?
The core processor is the ARM® Cortex®-M4.
- What is the maximum operating frequency of the MK70FN1M0VMJ15?
The maximum operating frequency is up to 150 MHz.
- What is the program memory size of the MK70FN1M0VMJ15?
The program memory size is up to 1 MB Flash.
- What are the operating temperature ranges for the MK70FN1M0VMJ15?
The operating temperature range is -40°C to 105°C.
- What are the supply voltage ranges for the MK70FN1M0VMJ15?
The supply voltage range is 1.71 V to 3.6 V.
- What types of connectivity does the MK70FN1M0VMJ15 support?
The MK70FN1M0VMJ15 supports CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART, USB, and USB OTG.
- Does the MK70FN1M0VMJ15 have low-power modes?
- What is the package type of the MK70FN1M0VMJ15?
The package type is 256-LBGA (17 mm x 17 mm).
- Does the MK70FN1M0VMJ15 support DMA and other peripherals?
- What are some typical applications of the MK70FN1M0VMJ15?
Typical applications include control panels, navigational displays, POS terminals, and medical monitoring devices.
