BFU590Q115
  • Share:

NXP USA Inc. BFU590Q115

Manufacturer No:
BFU590Q115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

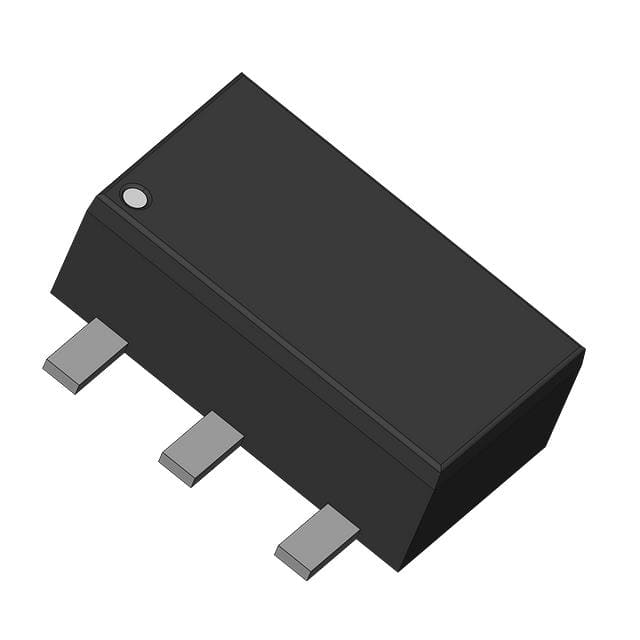

The BFU590Q115 is an NPN silicon microwave transistor designed by NXP USA Inc. for high-speed, medium power applications. It is packaged in a plastic, 3-pin SOT89 package, making it suitable for a variety of high-frequency uses. This transistor is part of the BFU500 family, which is known for its high gain, low noise, and efficient performance, particularly in battery-powered equipment and automotive and industrial applications.

Key Specifications

Parameter Value Unit
Package Type SOT89 -
Transistor Type NPN -
Supply Voltage (Nominal) 8 V
Quiescent Current 0 - 10 mA
Gain approx. 10 dB
P1dB (Output Power at 1 dB Compression) >26 dBm
Input Return-Loss >10 dB
Efficiency >55% -

Key Features

  • High gain at low supply current, making it suitable for battery-powered equipment.
  • Improved noise and thermal properties compared to previous generations and competitor products.
  • Medium to high voltage swings, ideal for fast, low noise analog and medium power signal processing.
  • Available in various packages with starter kits that include PCBs, RF connectors, and simulation model parameters for easy evaluation and design.
  • Designed for low BOM cost and small PCB area, making it efficient for various applications.

Applications

  • Industrial, Scientific, and Medical (ISM) band applications, such as the 866 MHz PA design described in the application note.
  • Automotive and industrial equipment requiring high-frequency, medium power signal processing.
  • Battery-powered equipment where high gain and low current consumption are crucial.
  • Wireless communication systems, including power amplifiers for small bandwidth and wideband applications.

Q & A

  1. What is the BFU590Q115 transistor used for?

    The BFU590Q115 is used for high-speed, medium power applications, particularly in industrial, scientific, and medical (ISM) bands and in automotive and industrial equipment.

  2. What package type does the BFU590Q115 come in?

    The BFU590Q115 comes in a plastic, 3-pin SOT89 package.

  3. What are the key specifications of the BFU590Q115?

    Key specifications include a nominal supply voltage of 8V, quiescent current of 0-10mA, gain of approximately 10dB, P1dB of >26dBm, input return-loss of >10dB, and efficiency of >55%.

  4. What are the improvements of the BFU500 family over previous generations?

    The BFU500 family offers improvements in gain, noise, and thermal properties compared to previous generations and competitor products.

  5. Can the BFU590Q115 be used in battery-powered equipment?

    Yes, the BFU590Q115 is suitable for battery-powered equipment due to its high gain at low supply current.

  6. What tools are recommended for designing with the BFU590Q115?

    Simulation software like Agilent's Advanced Design System (ADS) and Mextram models are recommended for designing with the BFU590Q115.

  7. What is the typical application frequency for the BFU590Q115?

    The BFU590Q115 is typically used in the 866 MHz ISM band, but it can be tuned for other frequencies by adjusting relevant capacitors and inductors.

  8. How can the linearity of the BFU590Q115 be improved?

    Setting the correct DC biasing current can improve the linearity of the BFU590Q115 over the output level.

  9. Can the BFU590Q115 be used in wideband power amplifiers?

    Yes, the BFU590Q115 can be used in wideband power amplifiers, and feedback can be implemented on the existing board to enhance performance.

  10. What kind of starter kits are available for the BFU590Q115?

    Starter kits, such as the OM7965, include PCBs, RF connectors, transistors, and simulation model parameters to facilitate evaluation and design.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$0.50
1,269

Please send RFQ , we will respond immediately.
