BCV62B/DG/B2215
  • Share:

NXP USA Inc. BCV62B/DG/B2215

Manufacturer No:
BCV62B/DG/B2215
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

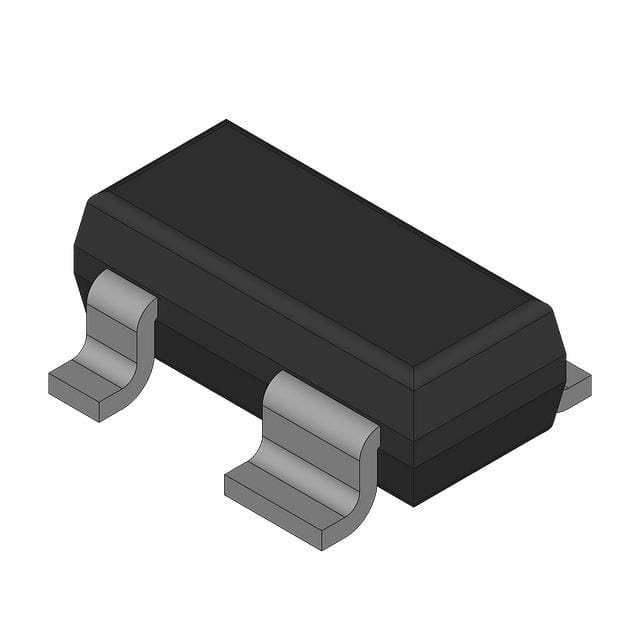

The BCV62B is a PNP general-purpose double transistor produced by Nexperia, a leading global semiconductor company. This component is designed in a small SOT143B Surface-Mounted Device (SMD) plastic package, making it suitable for a variety of applications where space is limited. The BCV62B is part of Nexperia’s extensive portfolio of bipolar transistors, which are known for their reliability and performance across different industries, including automotive, industrial, and consumer electronics.

Key Specifications

Type number Package VCEO [max] (V) IC [max] (mA) hFE [min] hFE [max]
BCV62B SOT143B -30.0 -100.0 220.0 475.0

Key Features

  • Low current (max. 100 mA)
  • Low voltage (max. 30 V)
  • Matched pairs for consistent performance
  • AEC-Q101 qualified, making it suitable for automotive applications
  • Small SMD plastic package (SOT143B) for compact designs

Applications

  • Applications where the working point is independent of temperature
  • Current mirrors and other analog circuits
  • Automotive and industrial control systems
  • Consumer electronics requiring reliable and efficient transistor performance

Q & A

  1. What is the maximum collector-emitter voltage (VCEO) of the BCV62B transistor?

    The maximum collector-emitter voltage (VCEO) of the BCV62B transistor is -30 V.

  2. What is the maximum collector current (IC) of the BCV62B transistor?

    The maximum collector current (IC) of the BCV62B transistor is -100 mA.

  3. What is the minimum DC current gain (hFE) of the BCV62B transistor?

    The minimum DC current gain (hFE) of the BCV62B transistor is 220.

  4. What package type is used for the BCV62B transistor?

    The BCV62B transistor is packaged in a small SOT143B Surface-Mounted Device (SMD) plastic package.

  5. Is the BCV62B transistor AEC-Q101 qualified?
  6. What are some common applications of the BCV62B transistor?

    The BCV62B transistor is commonly used in applications where the working point is independent of temperature, current mirrors, and other analog circuits.

  7. How does the BCV62B transistor perform in terms of current matching?

    The BCV62B transistor has matched pairs, ensuring consistent performance and good current matching.

  8. What is the maximum peak collector current (ICM) of the BCV62B transistor?

    The maximum peak collector current (ICM) of the BCV62B transistor is -200 mA.

  9. What is the maximum base-emitter voltage (VBE) of the BCV62B transistor?

    The maximum base-emitter voltage (VBE) of the BCV62B transistor is approximately -750 mV under specific conditions.

  10. How can I obtain samples of the BCV62B transistor?

    Samples of the BCV62B transistor can be ordered via Nexperia’s sales organization.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$0.15
4,334

Please send RFQ , we will respond immediately.
