NXP USA Inc. BC856BW/DG/B3115

Manufacturer No:
BC856BW/DG/B3115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

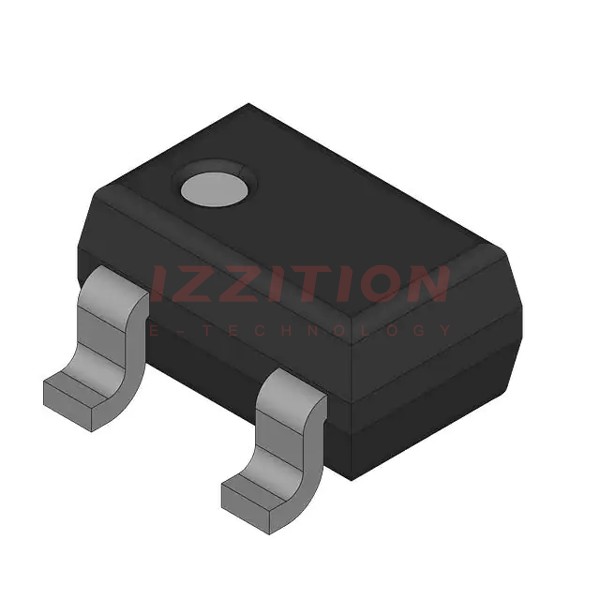

The BC856BW/DG/B3115 is a PNP general-purpose transistor manufactured by Nexperia (formerly NXP USA Inc.). This transistor is designed to operate in a wide range of applications due to its robust specifications and compact packaging. It is housed in a small SOT323 (SC-70) surface-mount device (SMD) plastic package, making it ideal for space-constrained designs.

Key Specifications

Parameter Value Unit
Type Number BC856BW -
Package SOT323 (SC-70) -
Package Size 2 x 1.25 x 0.95 mm
Channel Type PNP -
Total Power Dissipation (Ptot) 200 mW
Collector-Emitter Voltage (VCEO) [max] -65 V
Collector Current (IC) [max] -100 mA
DC Current Gain (hFE) [min/max] 220 / 475 -
Junction Temperature (Tj) [max] 150 °C
Transition Frequency (ft) [min] 100 MHz
Automotive Qualified Yes -

Key Features

  • Compact SOT323 (SC-70) package, ideal for space-constrained designs.
  • High collector-emitter voltage (VCEO) of -65 V.
  • High collector current (IC) of up to -100 mA.
  • Wide range of DC current gain (hFE) from 220 to 475.
  • High transition frequency (ft) of 100 MHz.
  • Automotive qualified, ensuring reliability in harsh environments.
  • Low thermal resistance from junction to ambient in free air.

Applications

The BC856BW/DG/B3115 transistor is suitable for a variety of general-purpose applications, including:

  • Amplifier circuits.
  • Switching circuits.
  • Automotive electronics.
  • Consumer electronics.
  • Industrial control systems.

Q & A

  1. What is the package type of the BC856BW/DG/B3115 transistor?

    The BC856BW/DG/B3115 transistor is housed in a SOT323 (SC-70) surface-mount device (SMD) plastic package.

  2. What is the maximum collector-emitter voltage (VCEO) of the BC856BW/DG/B3115 transistor?

    The maximum collector-emitter voltage (VCEO) is -65 V.

  3. What is the maximum collector current (IC) of the BC856BW/DG/B3115 transistor?

    The maximum collector current (IC) is -100 mA.

  4. What is the range of DC current gain (hFE) for the BC856BW/DG/B3115 transistor?

    The DC current gain (hFE) ranges from 220 to 475.

  5. What is the transition frequency (ft) of the BC856BW/DG/B3115 transistor?

    The transition frequency (ft) is 100 MHz.

  6. Is the BC856BW/DG/B3115 transistor automotive qualified?

    Yes, the BC856BW/DG/B3115 transistor is automotive qualified.

  7. What is the junction temperature (Tj) limit for the BC856BW/DG/B3115 transistor?

    The junction temperature (Tj) limit is 150 °C.

  8. What are some common applications for the BC856BW/DG/B3115 transistor?

    Common applications include amplifier circuits, switching circuits, automotive electronics, consumer electronics, and industrial control systems.

  9. How does the BC856BW/DG/B3115 transistor handle thermal conditions?

    The transistor has a thermal resistance from junction to ambient in free air, ensuring it can handle various thermal conditions effectively.

  10. Where can I find detailed datasheets and ordering information for the BC856BW/DG/B3115 transistor?

    Detailed datasheets and ordering information can be found on the Nexperia website and through authorized distributors.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

-
426

Please send RFQ , we will respond immediately.
