BC807-40W/ZL135
  • Share:

NXP USA Inc. BC807-40W/ZL135

Manufacturer No:
BC807-40W/ZL135
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

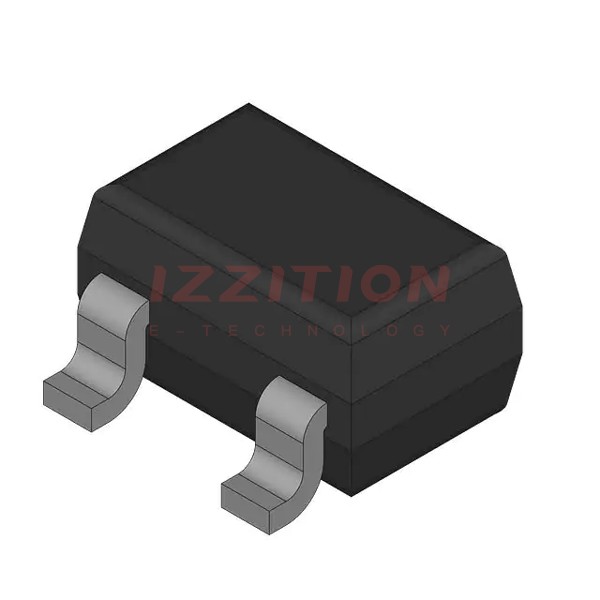

The BC807-40W/ZL135, produced by NXP USA Inc. (now known as Nexperia), is a PNP general-purpose bipolar transistor. This component is renowned for its compact size and efficient design, making it an excellent choice for various electronic circuits. The transistor is packaged in a small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package, facilitating easy installation and integration into modern electronic designs.

Key Specifications

Type numberBC807-40W
Package versionSOT323
Package nameSC-70
Size (mm)2 x 1.25 x 0.95
PolarityPNP
Ptot (mW)200
VCEO [max] (V)-45
IC [max] (mA)-500
hFE [min]250
hFE [max]600
TJ [max] (°C)150
fT [min] (MHz)80

Key Features

  • Advanced signal processing capabilities.
  • Safe operating conditions ensured through robust design.
  • Multi-functional design, allowing for versatile use in various electronic circuits.
  • Compact SC-70 package with 3 pins for easy installation.

Applications

The BC807-40W/ZL135 is suitable for a wide range of applications across different industries, including:

  • Automotive systems: For use in vehicle electronics and control systems.
  • Industrial automation: In control circuits and signal processing.
  • Consumer electronics: In audio equipment, mobile devices, and other consumer products.
  • Power and computing: For general-purpose switching and amplification tasks.

Q & A

  1. What is the package type of the BC807-40W/ZL135? The BC807-40W/ZL135 is packaged in a SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.
  2. What is the maximum collector-emitter voltage (VCEO) of the BC807-40W/ZL135? The maximum collector-emitter voltage (VCEO) is -45 V.
  3. What is the maximum collector current (IC) of the BC807-40W/ZL135? The maximum collector current (IC) is -500 mA.
  4. What are the minimum and maximum current gain (hFE) values of the BC807-40W/ZL135? The minimum current gain (hFE) is 250, and the maximum is 600.
  5. What is the maximum junction temperature (TJ) of the BC807-40W/ZL135? The maximum junction temperature (TJ) is 150°C.
  6. Is the BC807-40W/ZL135 RoHS compliant? Yes, the BC807-40W/ZL135 is RoHS compliant.
  7. What are the typical applications of the BC807-40W/ZL135? It is used in automotive, industrial, consumer electronics, and power and computing applications.
  8. How is the BC807-40W/ZL135 packaged for shipping? The components are carefully packed in anti-static bags to provide ESD anti-static protection.
  9. Can I order samples of the BC807-40W/ZL135? Yes, samples can be ordered through Nexperia’s sales organization or through their network of global and regional distributors.
  10. What is the NPN complement of the BC807-40W/ZL135? The NPN complement is the BC817-40W.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

-
603

Please send RFQ , we will respond immediately.
