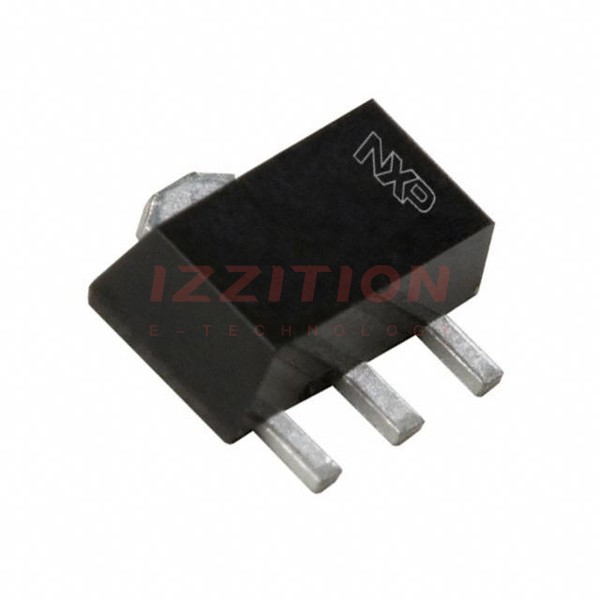

Nexperia USA Inc. PXT4401,115

Manufacturer No:
PXT4401,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 40V 0.6A SOT89
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PXT4401,115 is a high-performance NPN bipolar junction transistor (BJT) manufactured by Nexperia USA Inc. This transistor is designed for switching applications and offers several key advantages, including a small form factor, low collector-emitter saturation voltage, and high collector current capability. The device is packaged in a surface-mount SOT-89 format, making it ideal for space-constrained designs.

Key Specifications

ParameterValue
Transistor TypeNPN Bipolar Junction Transistor (BJT)
Collector-Emitter Voltage (Vce)40 V
Collector Current (Ic)600 mA
Transition Frequency (fT)250 MHz
Power Dissipation (Pd)1.1 W
Package TypeSOT-89 (Surface Mount)

Key Features

  • Small form factor using about 75% less board space, allowing more design flexibility.
  • Low collector-emitter saturation voltage (Vce(sat)).
  • High collector current capability.
  • Surface-mount SOT-89 package for easy integration into modern designs.
  • High transition frequency (fT) of 250 MHz, suitable for high-speed switching applications.

Applications

The PXT4401,115 is suitable for a variety of applications, including:

  • Switching circuits in consumer electronics.
  • Automotive systems requiring high reliability and performance.
  • Industrial control systems where space is limited.
  • Audio and video equipment where low distortion and high current capability are necessary.

Q & A

  1. What is the collector-emitter voltage rating of the PXT4401,115?
    The collector-emitter voltage rating is 40 V.
  2. What is the maximum collector current of the PXT4401,115?
    The maximum collector current is 600 mA.
  3. What is the transition frequency of the PXT4401,115?
    The transition frequency is 250 MHz.
  4. What type of package does the PXT4401,115 use?
    The PXT4401,115 is packaged in a surface-mount SOT-89 format.
  5. What are some key features of the PXT4401,115?
    Key features include a small form factor, low collector-emitter saturation voltage, and high collector current capability.
  6. What are typical applications for the PXT4401,115?
    Typical applications include switching circuits in consumer electronics, automotive systems, industrial control systems, and audio/video equipment.
  7. How much power can the PXT4401,115 dissipate?
    The PXT4401,115 can dissipate up to 1.1 W of power.
  8. Is the PXT4401,115 suitable for high-speed switching applications?
    Yes, it is suitable due to its high transition frequency of 250 MHz.
  9. Who manufactures the PXT4401,115?
    The PXT4401,115 is manufactured by Nexperia USA Inc.
  10. What is the benefit of the small form factor of the PXT4401,115?
    The small form factor allows for more design flexibility and uses about 75% less board space.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):600 mA
Voltage - Collector Emitter Breakdown (Max):40 V
Vce Saturation (Max) @ Ib, Ic:750mV @ 50mA, 500mA
Current - Collector Cutoff (Max):50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 150mA, 1V
Power - Max:1.1 W
Frequency - Transition:250MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89
0 Remaining View Similar

In Stock

$0.42
1,000

Please send RFQ , we will respond immediately.

Similar Products

Part Number PXT4401,115 PZT4401,115 PXT4403,115
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active
Transistor Type NPN NPN PNP
Current - Collector (Ic) (Max) 600 mA 600 mA 600 mA
Voltage - Collector Emitter Breakdown (Max) 40 V 40 V 40 V
Vce Saturation (Max) @ Ib, Ic 750mV @ 50mA, 500mA 750mV @ 50mA, 500mA 750mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 50nA (ICBO) 50nA (ICBO) 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 150mA, 1V 100 @ 150mA, 1V 100 @ 150mA, 2V
Power - Max 1.1 W 1.15 W 1.1 W
Frequency - Transition 250MHz 250MHz 200MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case TO-243AA TO-261-4, TO-261AA TO-243AA
Supplier Device Package SOT-89 SOT-223 SOT-89
