Overview

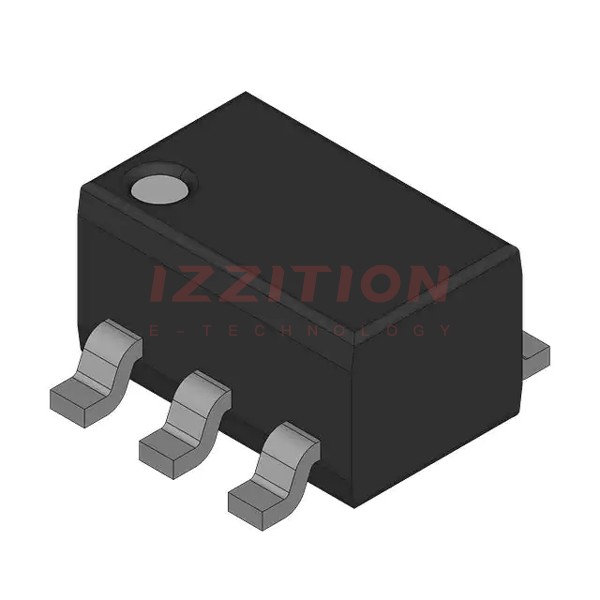

The PUMH9/ZL135, manufactured by Nexperia USA Inc., is a pre-biased bipolar transistor array. This component features two NPN transistors with built-in bias resistors, which simplifies circuit design and reduces the component count and pick-and-place operations. It is packaged in a 6-TSSOP (SC-88, SOT-363) surface mount configuration, making it suitable for a variety of electronic applications.
Key Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mfr | Nexperia USA Inc. | Series | - |
| Product Status | Active | Transistor Type | 2 NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100mA | Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 10kOhms | Resistor - Emitter Base (R2) | 47kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 5mA, 5V | Vce Saturation (Max) @ Ib, Ic | 100mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 100nA | Frequency - Transition | 230MHz |
| Power - Max | 300mW | Grade | Automotive |
| Qualification | AEC-Q101 | - | - |
Key Features
- Built-in Bias Resistors: The PUMH9/ZL135 includes built-in base and emitter resistors, simplifying circuit design and reducing the number of external components needed.
- High Frequency Capability: With a transition frequency of 230MHz, this transistor array is suitable for high-frequency applications.
- Low Saturation Voltage: The transistor array has a low Vce saturation voltage of 100mV, which helps in reducing power losses.
- Automotive Grade: Qualified to AEC-Q101 standards, making it reliable for use in automotive applications.
- Surface Mount Package: The 6-TSSOP package is compact and suitable for surface mount technology (SMT), facilitating efficient assembly and reducing board space.
Applications
- Automotive Electronics: Given its AEC-Q101 qualification, the PUMH9/ZL135 is ideal for use in various automotive electronic systems, such as sensors, actuators, and control units.
- Consumer Electronics: Suitable for use in consumer electronics like audio equipment, home appliances, and other devices requiring reliable and efficient transistor arrays.
- Industrial Control Systems: The high reliability and performance of the PUMH9/ZL135 make it a good choice for industrial control systems, including motor control and power management.
- Communication Devices: The high frequency capability of this transistor array makes it suitable for use in communication devices and RF circuits.
Q & A
- Q: What is the warranty period for the PUMH9/ZL135?
A: The warranty period for the PUMH9/ZL135 is 1 year, covering any defects in materials and workmanship under normal use.
- Q: How does the supplier ensure the authenticity of the PUMH9/ZL135 from Nexperia USA Inc.?
A: The supplier ensures authenticity through rigorous testing and verification of original Nexperia USA Inc. manufacturers and authorized agents.
- Q: What is the maximum collector current of the PUMH9/ZL135?
A: The maximum collector current of the PUMH9/ZL135 is 100mA.
- Q: What is the collector-emitter breakdown voltage of the PUMH9/ZL135?
A: The collector-emitter breakdown voltage of the PUMH9/ZL135 is 50V.
- Q: What are the built-in resistor values in the PUMH9/ZL135?
A: The PUMH9/ZL135 has a base resistor (R1) of 10kOhms and an emitter base resistor (R2) of 47kOhms.
- Q: What is the transition frequency of the PUMH9/ZL135?
A: The transition frequency of the PUMH9/ZL135 is 230MHz.
- Q: Is the PUMH9/ZL135 RoHS compliant?
A: Yes, the PUMH9/ZL135 is RoHS compliant, adhering to EU RoHS and CN RoHS directives.
- Q: What is the package type of the PUMH9/ZL135?
A: The PUMH9/ZL135 is packaged in a 6-TSSOP (SC-88, SOT-363) surface mount configuration.
- Q: What are the typical applications of the PUMH9/ZL135?
A: The PUMH9/ZL135 is typically used in automotive electronics, consumer electronics, industrial control systems, and communication devices, ).
- Q: How can I obtain detailed information about the PUMH9/ZL135, such as application notes and factory information?
A: You can find comprehensive details about the PUMH9/ZL135 by visiting the Nexperia USA Inc. information page or using the supplier's intelligent search engine).
