Overview

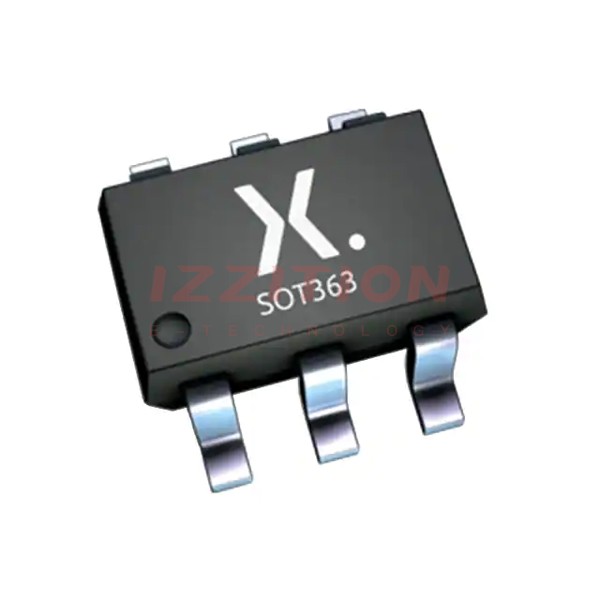

The PRTR5V0U4Y,125 is an integrated quad ultra-low capacitance ESD (Electrostatic Discharge) protection device manufactured by Nexperia USA Inc. This component is designed to protect sensitive Input/Output (I/O) ports from damage caused by electrostatic discharges. It is particularly suited for applications where low capacitance is crucial to maintain signal integrity.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | SC-74, SC-88 |
| Number of Channels | 4 |
| Clamping Voltage (Vcl) | 6 V (typical at 8/20 μs pulse) |
| Capacitance (per channel) | 0.35 pF (typical at 1 MHz) |
| ESD Protection | IEC 61000-4-2, 15 kV air, 8 kV contact |
| Operating Temperature Range | -40°C to 125°C |
Key Features
- Ultra-low capacitance of 0.35 pF per channel, ensuring minimal impact on high-speed signals.
- High ESD protection level, compliant with IEC 61000-4-2 standards (15 kV air, 8 kV contact).
- Compact SC-74 and SC-88 package options, suitable for space-constrained designs.
- Wide operating temperature range from -40°C to 125°C.
Applications
The PRTR5V0U4Y,125 is ideal for protecting I/O ports in various high-speed interfaces such as:
- USB 2.0
- Ethernet
- DVI
- Other high-speed data transmission lines where low capacitance is essential.
Q & A
- What is the primary function of the PRTR5V0U4Y,125?
The primary function is to protect sensitive I/O ports from electrostatic discharge (ESD) damage. - What is the typical capacitance per channel of the PRTR5V0U4Y,125?
The typical capacitance per channel is 0.35 pF at 1 MHz. - What are the package options available for the PRTR5V0U4Y,125?
The component is available in SC-74 and SC-88 packages. - What is the ESD protection level of the PRTR5V0U4Y,125?
The ESD protection level is compliant with IEC 61000-4-2 standards, offering 15 kV air and 8 kV contact protection. - What is the operating temperature range of the PRTR5V0U4Y,125?
The operating temperature range is from -40°C to 125°C. - Which high-speed interfaces can the PRTR5V0U4Y,125 protect?
The component can protect USB 2.0, Ethernet, DVI, and other high-speed data transmission lines. - Why is low capacitance important in ESD protection devices?
Low capacitance is crucial to maintain signal integrity in high-speed interfaces. - Where can I find detailed specifications and datasheets for the PRTR5V0U4Y,125?
Detailed specifications and datasheets can be found on the Nexperia website or through authorized distributors like Digi-Key and Mouser Electronics. - Is the PRTR5V0U4Y,125 suitable for use in automotive applications?
While it can operate over a wide temperature range, it is essential to check the specific requirements of your application to ensure compatibility. - How many channels does the PRTR5V0U4Y,125 provide for ESD protection?
The component provides protection for 4 channels.
