Overview
The PRTR5V0U4D,125 is a high-performance Electrostatic Discharge (ESD) protection device manufactured by Nexperia USA Inc. This component is designed to protect sensitive I/O lines from damage caused by ESD and other transients. It is particularly optimized for high-speed data lines such as USB 2.0, Ethernet, and DVI interfaces. The device integrates four ultra-low capacitance rail-to-rail ESD protection channels and an additional ESD protection diode, ensuring robust protection even in the absence of a supply voltage.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Part Number | PRTR5V0U4D,125 |

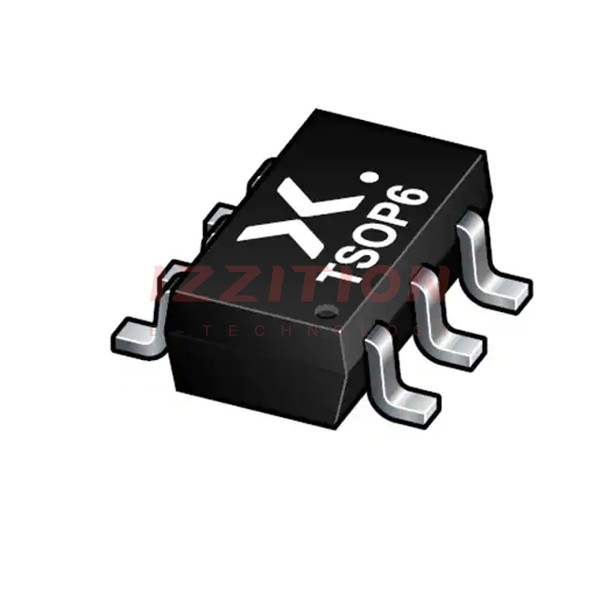

| Package Style | SC-74 (TSOP-6), SOT457 |
| Mounting Method | Surface Mount |
| Number of Pins | 6 |
| Diode Element Material | SILICON |
| Breakdown Voltage / V | 6V |
| Operating Temperature | -40°C to +85°C |
| Capacitance @ Frequency | 1pF @ 1MHz |
| Max Junction Temperature (Tj) | 150°C |
| RoHS Status | ROHS3 Compliant |
| ESD Protection Level | IEC61000-4-2, level 4 (8kV) |
| Number of Channels | 4 (quad rail-to-rail) |
| Packaging | Tape & Reel (TR) |
| Package Quantity | 3000 per Reel |
Key Features
- Ultra-low capacitance (1pF @ 1MHz) to avoid signal distortion in high-speed data lines.
- Quad rail-to-rail ESD protection channels for comprehensive protection of I/O lines.
- Additional ESD protection diode to ensure protection even without a supply voltage.
- Compact SC-74 (TSOP-6) package for space-efficient designs.
- Surface mount technology for easy integration into PCBs.
- Compliant with IEC61000-4-2, level 4 (8kV) for robust ESD protection.
- Operating temperature range of -40°C to +85°C, suitable for various environmental conditions.
Applications
The PRTR5V0U4D,125 is widely used in various applications requiring high-speed data line protection, including:
- USB 2.0 interfaces, handling data rates up to 480Mbits/s.
- Ethernet and DVI interfaces.
- Automotive systems, where robust ESD protection is crucial.
- Industrial and consumer electronics, such as mobile devices, set-top boxes, and identification applications.
- High-frequency signal lines in computing and communication devices.
Q & A
- What is the primary function of the PRTR5V0U4D,125? The primary function is to protect sensitive I/O lines from Electrostatic Discharge (ESD) and other transients.
- Which high-speed data lines does it protect? It protects USB 2.0, Ethernet, and DVI interfaces.
- What is the capacitance of the PRTR5V0U4D,125? The capacitance is 1pF @ 1MHz.
- What is the operating temperature range of the device? The operating temperature range is -40°C to +85°C.
- How many ESD protection channels does it have? It has four ultra-low capacitance rail-to-rail ESD protection channels.
- Is the device RoHS compliant? Yes, it is ROHS3 Compliant.
- What is the package style of the PRTR5V0U4D,125? The package style is SC-74 (TSOP-6), SOT457.
- How many pins does the device have? The device has 6 pins.
- What is the ESD protection level of the device? The device provides IEC61000-4-2, level 4 (8kV) ESD protection.
- What is the maximum junction temperature of the device? The maximum junction temperature is 150°C.
- How many devices are in a reel? There are 3000 devices per reel.
