Overview

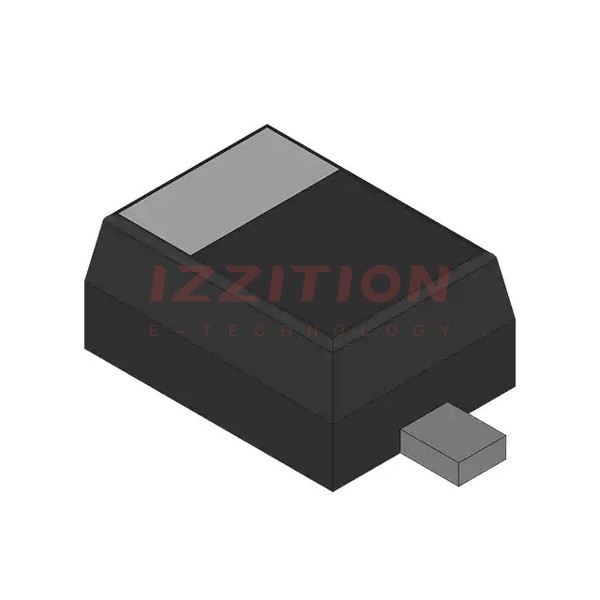

The PMEG6010CEGW,115 is a 60 V, 1 A Low VF (Low Forward Voltage) Schottky barrier rectifier produced by Nexperia USA Inc. This component is designed for high-efficiency rectification in various electronic applications. It is encapsulated in a small SOD123 Surface-Mounted Device (SMD) plastic package, making it suitable for space-constrained designs.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage (V) | 60 V |
| Current (I) | 1 A |
| Forward Voltage (VF) | Low VF |
| Package | SOD123 SMD |
| Guard Ring | Integrated for stress protection |
Key Features
- Low Forward Voltage (VF) for high efficiency
- Integrated guard ring for stress protection
- Small SOD123 SMD package for compact designs
- High current handling capability of up to 1 A
- Maximum voltage rating of 60 V
Applications
The PMEG6010CEGW,115 is suitable for a variety of applications, including:
- Power supplies and DC-DC converters
- Switch-mode power supplies
- High-frequency rectification
- Automotive and industrial power systems
- Consumer electronics requiring efficient power management
Q & A
- What is the maximum voltage rating of the PMEG6010CEGW,115?
The maximum voltage rating is 60 V. - What is the current handling capability of this component?
The current handling capability is up to 1 A. - What type of package is the PMEG6010CEGW,115 encapsulated in?
The component is encapsulated in a SOD123 SMD plastic package. - What is the forward voltage characteristic of this rectifier?
The PMEG6010CEGW,115 has a low forward voltage (VF) for high efficiency. - Does the PMEG6010CEGW,115 have any integrated protection features?
Yes, it has an integrated guard ring for stress protection. - In which types of applications is the PMEG6010CEGW,115 commonly used?
It is commonly used in power supplies, DC-DC converters, switch-mode power supplies, and high-frequency rectification applications. - Is the PMEG6010CEGW,115 suitable for automotive applications?
Yes, it is suitable for automotive and industrial power systems. - What are the benefits of using a Schottky barrier rectifier like the PMEG6010CEGW,115?
The benefits include high efficiency due to low forward voltage, compact design, and integrated stress protection. - Where can I purchase the PMEG6010CEGW,115?
You can purchase it from authorized distributors such as Digi-Key, Mouser Electronics, and Arrow Electronics. - What is the significance of the '115' suffix in the part number?
The '115' suffix typically indicates the specific packaging and reel configuration of the component.
