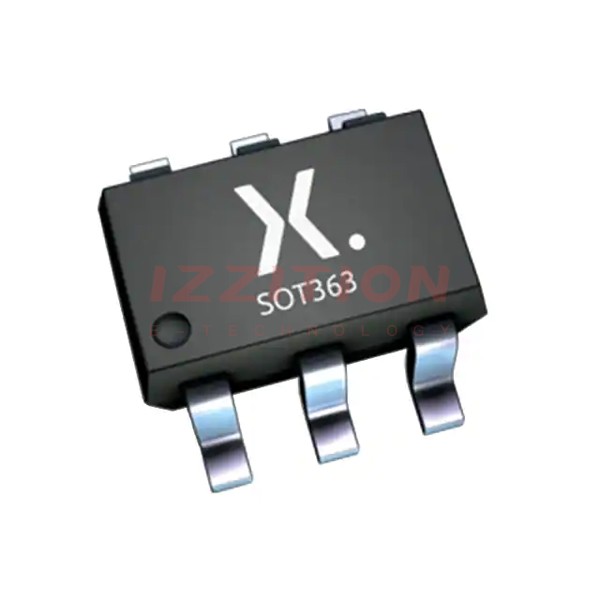

Nexperia USA Inc. PMBT2222AYSX

Manufacturer No:
PMBT2222AYSX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 40V 0.6A 6TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PMBT2222A is an NPN switching transistor manufactured by Nexperia USA Inc. This transistor is housed in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. It is designed for switching and linear amplification applications, offering high current and low voltage capabilities. The PMBT2222A is part of Nexperia’s extensive portfolio of bipolar transistors, which are used in a wide range of electronic designs across various industries, including automotive, industrial, power, computing, and consumer electronics.

Key Specifications

Parameter Value
Package SOT23 (TO-236AB)
Channel Type NPN
Maximum Collector Current (IC) 600 mA
Maximum Collector-Emitter Voltage (VCEO) 40 V
Minimum Current Gain (hFE) 100
Maximum Current Gain (hFE) 300
Maximum Junction Temperature (TJ) 150°C
Minimum Transition Frequency (fT) 300 MHz
Automotive Qualified Yes (AEC-Q101)

Key Features

  • High current capability up to 600 mA
  • Low voltage operation up to 40 V
  • AEC-Q101 qualified for automotive applications
  • Compact SOT23 package for space-efficient designs
  • Suitable for switching and linear amplification applications
  • High transition frequency of 300 MHz

Applications

  • Automotive electronics: For various automotive systems requiring high reliability and efficiency.
  • Industrial applications: Used in control circuits, power supplies, and other industrial equipment.
  • Consumer electronics: Suitable for audio equipment, mobile devices, and other consumer products.
  • Power and computing: Used in power management circuits and computing hardware.
  • Wearables and mobile devices: Due to its compact size and high performance.

Q & A

  1. What is the PMBT2222A transistor used for?

    The PMBT2222A is used for switching and linear amplification applications.

  2. What is the maximum collector current of the PMBT2222A?

    The maximum collector current is 600 mA.

  3. What is the maximum collector-emitter voltage of the PMBT2222A?

    The maximum collector-emitter voltage is 40 V.

  4. Is the PMBT2222A automotive qualified?

    Yes, it is AEC-Q101 qualified.

  5. What package type does the PMBT2222A come in?

    The PMBT2222A comes in a SOT23 (TO-236AB) package.

  6. What is the maximum junction temperature of the PMBT2222A?

    The maximum junction temperature is 150°C.

  7. What is the minimum transition frequency of the PMBT2222A?

    The minimum transition frequency is 300 MHz.

  8. Where can I find the datasheet for the PMBT2222A?

    You can find the datasheet on Nexperia's official website or through authorized distributors.

  9. How do I order samples of the PMBT2222A?

    Samples can be ordered via Nexperia's sales organization or through their network of global and regional distributors.

  10. What are some equivalent transistors to the PMBT2222A?

    Some equivalents include PMB1370, PMB1626, PMB688, PMB772, PMB817, PMBF170, PMBF4391, PMBF4392, and PMBF4393.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):600 mA
Voltage - Collector Emitter Breakdown (Max):40 V
Vce Saturation (Max) @ Ib, Ic:1V @ 50mA, 500mA
Current - Collector Cutoff (Max):10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:75 @ 10mA, 10V
Power - Max:250 mW
Frequency - Transition:300MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-TSSOP, SC-88, SOT-363
Supplier Device Package:6-TSSOP
0 Remaining View Similar

In Stock

$0.39
258

Please send RFQ , we will respond immediately.
