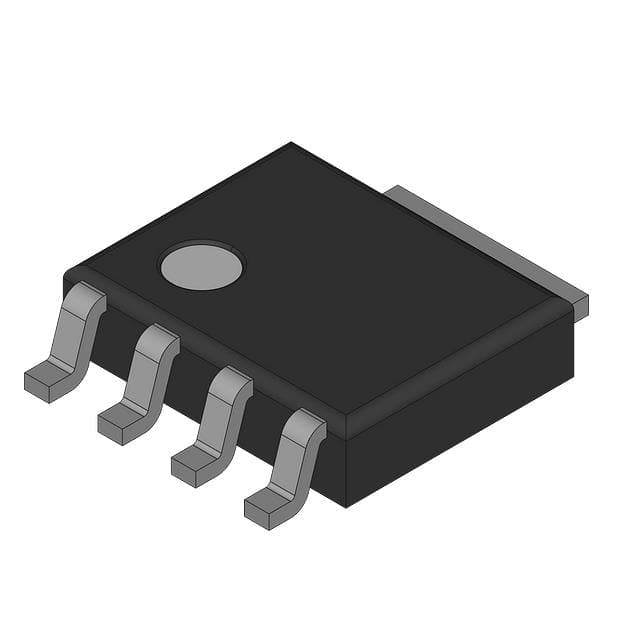

Nexperia USA Inc. PHPT60603NY,115

Manufacturer No:
PHPT60603NY,115
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
POWER BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PHPT60603NY,115 is a high-power bipolar transistor manufactured by Nexperia USA Inc. This NPN transistor is designed for high-performance applications, particularly in environments requiring high thermal power dissipation and high temperature tolerance. It is packaged in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package, which enhances its thermal performance and reduces the need for extensive Printed Circuit Board (PCB) requirements compared to traditional DPAK packages.

Key Specifications

ParameterValue
Type NumberPHPT60603NY
Orderable Part NumberPHPT60603NYX (934067878115)
PackageSOT669 (LFPAK56; Power-SO8)
PolarityNPN
Collector-Emitter Voltage (Vce)60 V
Collector Current (Ic)3 A
Transition Frequency (ft)100 MHz
Max Power Dissipation (Ptot)High thermal power dissipation capability
Operating Temperature RangeUp to 175 °C
RoHS StatusCompliant

Key Features

  • High thermal power dissipation capability, making it suitable for high-temperature applications up to 175 °C.
  • Reduced PCB requirements due to its compact SOT669 (LFPAK56) package.
  • High energy efficiency resulting from less heat generation.
  • High collector current of 3 A and collector-emitter voltage of 60 V, ensuring robust performance in various applications.

Applications

  • Power management: Ideal for load switching and linear mode voltage regulation.
  • Backlighting applications: Suitable for driving backlighting in various electronic devices.
  • Automotive and industrial applications: Can be used in a wide range of automotive and industrial systems due to its high reliability and thermal performance.
  • Consumer electronics: Applicable in mobile, computing, and consumer devices where high power and efficiency are required.

Q & A

  1. What is the PHPT60603NY,115 transistor? The PHPT60603NY,115 is a high-power NPN bipolar transistor manufactured by Nexperia USA Inc., designed for high-performance and high-temperature applications.
  2. What package type does the PHPT60603NY,115 use? It is packaged in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package.
  3. What are the key electrical specifications of the PHPT60603NY,115? It has a collector-emitter voltage of 60 V, a collector current of 3 A, and a transition frequency of 100 MHz.
  4. What is the maximum operating temperature of the PHPT60603NY,115? The transistor can operate up to 175 °C.
  5. Is the PHPT60603NY,115 RoHS compliant? Yes, the PHPT60603NY,115 is RoHS compliant.
  6. What are some common applications of the PHPT60603NY,115? It is used in power management, backlighting, automotive, industrial, and consumer electronics.
  7. How does the PHPT60603NY,115 reduce PCB requirements? The compact SOT669 package reduces the need for extensive PCB space compared to traditional DPAK packages.
  8. What is the PNP complement of the PHPT60603NY,115? The PNP complement is the PHPT60603PY.
  9. Where can I find more detailed technical information about the PHPT60603NY,115? Detailed information can be found in the datasheet and application notes available on Nexperia’s official website.
  10. Can I order samples of the PHPT60603NY,115? Yes, samples can be ordered via Nexperia’s sales organization.
