Product Introduction

Overview

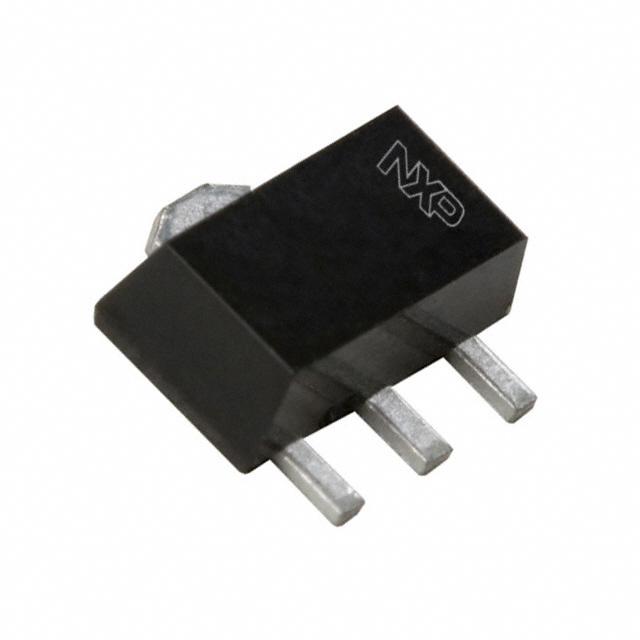

The PBSS8110X,135 is a high-performance NPN low VCEsat (BISS) transistor manufactured by Nexperia USA Inc. This transistor is designed to operate in a variety of applications, particularly in automotive, telecom infrastructure, and industrial sectors. It features a compact SOT89 (SC-62/TO-243) surface mount package, making it ideal for space-saving designs. The device is AEC-Q101 qualified, ensuring its reliability and performance in demanding environments.

Key Specifications

ParameterValue
Type NumberPBSS8110X
PackageSOT89 (SC-62/TO-243)
Collector-Base Voltage (VCEO)100 V
Collector Current (IC)1 A
Collector-Emitter Saturation Voltage (VCEsat)200 mV @ 100 mA, 1 A
DC Current Gain (hFE)150 - 500 @ 250 mA, 10 V
Transition Frequency (fT)100 MHz
Power Dissipation (Ptot)2 W
Junction Temperature (TJ)150°C

Key Features

  • Low collector-emitter saturation voltage (VCEsat) for high efficiency and reduced heat generation.
  • High collector current capability.
  • AEC-Q101 qualified for automotive applications.
  • Compact SOT89 package for space-saving designs.
  • High transition frequency (fT) of 100 MHz.
  • PNP complement available as PBSS9110X.

Applications

  • Automotive 42 V power systems.
  • Telecom infrastructure.
  • Industrial applications.
  • Peripheral drivers in low supply voltage applications (e.g., lamps, LEDs).
  • Inductive load drivers (e.g., relays, buzzers, motors).
  • DC-to-DC converters.

Q & A

  1. What is the PBSS8110X,135 transistor? The PBSS8110X,135 is an NPN low VCEsat (BISS) transistor in a SOT89 package, designed for high-efficiency applications.
  2. What are the key features of the PBSS8110X,135? It features low VCEsat, high collector current, AEC-Q101 qualification, and a compact SOT89 package.
  3. What is the maximum collector current of the PBSS8110X,135? The maximum collector current is 1 A.
  4. What is the maximum collector-emitter saturation voltage (VCEsat)? The VCEsat is 200 mV @ 100 mA, 1 A.
  5. What is the transition frequency (fT) of the PBSS8110X,135? The transition frequency is 100 MHz.
  6. Is the PBSS8110X,135 suitable for automotive applications? Yes, it is AEC-Q101 qualified for automotive use.
  7. What are some common applications of the PBSS8110X,135? It is used in automotive 42 V power systems, telecom infrastructure, industrial applications, and as a peripheral driver in low supply voltage applications.
  8. What is the PNP complement of the PBSS8110X,135? The PNP complement is the PBSS9110X.
  9. What is the maximum junction temperature (TJ) of the PBSS8110X,135? The maximum junction temperature is 150°C.
  10. How is the PBSS8110X,135 packaged? It is packaged in a SOT89 (SC-62/TO-243) surface mount package.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):1 A
Voltage - Collector Emitter Breakdown (Max):100 V
Vce Saturation (Max) @ Ib, Ic:200mV @ 100mA, 1A
Current - Collector Cutoff (Max):100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:150 @ 250mA, 10V
Power - Max:2 W
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89
