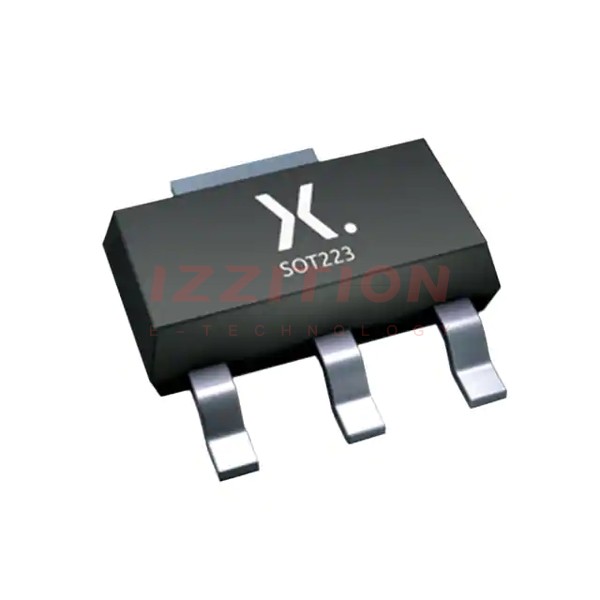

Nexperia USA Inc. PBHV9215Z,115

Manufacturer No:
PBHV9215Z,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS PNP 150V 2A SOT223
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PBHV9215Z,115 is an automotive-qualified PNP high-voltage low VCEsat bipolar transistor manufactured by Nexperia USA Inc. This transistor is designed for high-performance applications, particularly in the automotive sector, and is packaged in a medium power SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package. It is known for its low VCEsat characteristics, making it suitable for a variety of power management and switching applications.

Key Specifications

ParameterValue
Transistor TypePNP Bipolar Junction Transistor (BJT)
Maximum Collector-Emitter Voltage (VCE)150 V
Maximum Collector Current (IC)2 A
Maximum Power Dissipation (PD)1.45 W
Package TypeSOT223 (SC-73)
Frequency (fT)35 MHz
VCEsat at IC = 1 A, VBE = 1 V80 mV
RoHS ComplianceYes

Key Features

  • Low VCEsat for reduced power losses and improved efficiency.
  • High collector-emitter voltage rating of 150 V, suitable for high-voltage applications.
  • Automotive qualified to AEC-Q101 standards, ensuring reliability and performance in demanding automotive environments.
  • Medium power SOT223 package, offering a balance between power handling and compact size.
  • High frequency capability of 35 MHz, making it suitable for a range of switching and power management applications.

Applications

The PBHV9215Z,115 is designed for use in various automotive and industrial applications, including but not limited to:

  • Power management and switching circuits.
  • Automotive systems such as fuel injection, anti-lock braking systems (ABS), and other high-reliability applications.
  • Industrial control systems and motor control circuits.
  • High-voltage power supplies and DC-DC converters.

Q & A

  1. What is the maximum collector-emitter voltage of the PBHV9215Z,115 transistor?
    The maximum collector-emitter voltage is 150 V.
  2. What is the package type of the PBHV9215Z,115 transistor?
    The transistor is packaged in a SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package.
  3. Is the PBHV9215Z,115 transistor RoHS compliant?
    Yes, the transistor is RoHS compliant.
  4. What is the maximum collector current of the PBHV9215Z,115 transistor?
    The maximum collector current is 2 A.
  5. What is the typical VCEsat of the PBHV9215Z,115 transistor at IC = 1 A and VBE = 1 V?
    The typical VCEsat is 80 mV.
  6. What is the frequency capability of the PBHV9215Z,115 transistor?
    The transistor has a frequency capability of 35 MHz.
  7. Is the PBHV9215Z,115 transistor automotive qualified?
    Yes, it is qualified to AEC-Q101 standards.
  8. What are some common applications of the PBHV9215Z,115 transistor?
    Common applications include power management and switching circuits, automotive systems, industrial control systems, and high-voltage power supplies.
  9. What is the maximum power dissipation of the PBHV9215Z,115 transistor?
    The maximum power dissipation is 1.45 W.
  10. Where can I purchase the PBHV9215Z,115 transistor?
    You can purchase the transistor from various distributors such as Digi-Key, Mouser Electronics, and Arrow Electronics.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):2 A
Voltage - Collector Emitter Breakdown (Max):150 V
Vce Saturation (Max) @ Ib, Ic:350mV @ 400mA, 2A
Current - Collector Cutoff (Max):100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:80 @ 1A, 10V
Power - Max:1.45 W
Frequency - Transition:35MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:SOT-223
0 Remaining View Similar

In Stock

$0.54
371

Please send RFQ , we will respond immediately.

Similar Products

Part Number PBHV9215Z,115 PBHV8215Z,115 PBHV9115Z,115
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active
Transistor Type PNP NPN PNP
Current - Collector (Ic) (Max) 2 A 2 A 1 A
Voltage - Collector Emitter Breakdown (Max) 150 V 150 V 150 V
Vce Saturation (Max) @ Ib, Ic 350mV @ 400mA, 2A 280mV @ 400mA, 2A 300mV @ 100mA, 500mA
Current - Collector Cutoff (Max) 100nA 100nA 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce 80 @ 1A, 10V 100 @ 1A, 10V 100 @ 100mA, 10V
Power - Max 1.45 W 1.45 W 1.4 W
Frequency - Transition 35MHz 33MHz 115MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case TO-261-4, TO-261AA TO-261-4, TO-261AA TO-261-4, TO-261AA
Supplier Device Package SOT-223 SOT-223 SOT-223
