PBHV8115Z,115
  • Share:

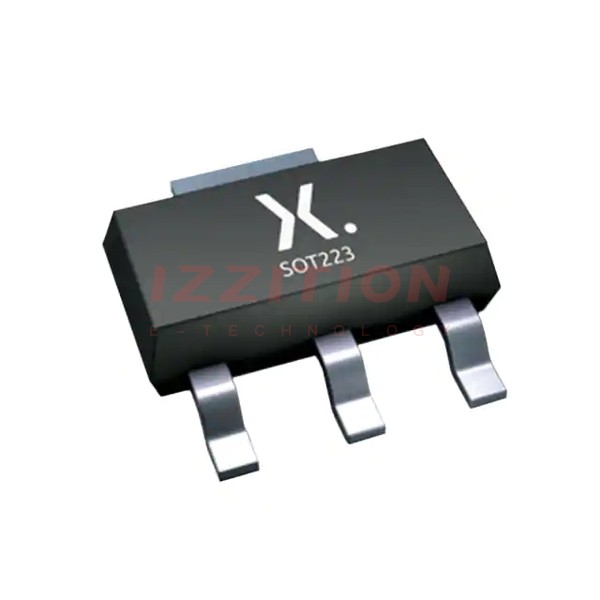

Nexperia USA Inc. PBHV8115Z,115

Manufacturer No:
PBHV8115Z,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 150V 1A SOT223
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PBHV8115Z,115 is a high-performance NPN bipolar junction transistor (BJT) manufactured by Nexperia USA Inc. This transistor is designed to operate at high voltages and currents, making it suitable for a variety of demanding applications. It features a small form factor, specifically the SOT-223 package, which allows for more design flexibility and reduced board space usage. The device is known for its low collector-emitter saturation voltage and high collector current capability, enhancing its efficiency and reliability in various electronic circuits.

Key Specifications

ParameterValue
Transistor TypeNPN Bipolar Junction Transistor (BJT)
Maximum Collector-Emitter Voltage (Vceo)150 V
Maximum Collector Current (Ic)1 A
Maximum Power Dissipation (Pd)1.4 W
Frequency Transition (ft)30 MHz
Collector-Emitter Saturation Voltage (Vce(sat))350 mV @ 400 mA, 1 A
DC Current Gain (hFE)80 @ 1 A, 10 V
Package TypeSOT-223
Operating Junction Temperature (Tj)150°C
RoHS StatusLead Free / RoHS Compliant

Key Features

  • High voltage capability up to 150 V
  • Low collector-emitter saturation voltage (Vce(sat)) for reduced energy consumption
  • High collector current capability of 1 A
  • High collector current gain (hFE) for improved current amplification
  • High-frequency response up to 30 MHz, suitable for high-frequency applications
  • Compact SOT-223 package for reduced board space and increased design flexibility
  • Good heat dissipation performance at operating temperatures up to 150°C

Applications

  • Analog switch: Control the on and off of analog signals, such as in audio circuits.
  • Drive circuit: Drive various load devices like electric motors and displays.
  • Microwave amplifier: Utilize its high-frequency response characteristics for microwave amplifiers.
  • Constant current source: Used in various DC power supply circuits to provide stable output current.

Q & A

  1. What is the maximum collector-emitter voltage of the PBHV8115Z,115 transistor?
    The maximum collector-emitter voltage (Vceo) is 150 V.
  2. What is the maximum collector current of the PBHV8115Z,115 transistor?
    The maximum collector current (Ic) is 1 A.
  3. What is the package type of the PBHV8115Z,115 transistor?
    The package type is SOT-223.
  4. What is the frequency transition (ft) of the PBHV8115Z,115 transistor?
    The frequency transition (ft) is 30 MHz.
  5. Is the PBHV8115Z,115 RoHS compliant?
    Yes, the PBHV8115Z,115 is Lead Free / RoHS Compliant.
  6. What is the collector-emitter saturation voltage (Vce(sat)) of the PBHV8115Z,115 transistor?
    The collector-emitter saturation voltage (Vce(sat)) is 350 mV @ 400 mA, 1 A.
  7. What are some common applications of the PBHV8115Z,115 transistor?
    Common applications include analog switches, drive circuits, microwave amplifiers, and constant current sources.
  8. What is the DC current gain (hFE) of the PBHV8115Z,115 transistor?
    The DC current gain (hFE) is 80 @ 1 A, 10 V.
  9. What is the maximum power dissipation (Pd) of the PBHV8115Z,115 transistor?
    The maximum power dissipation (Pd) is 1.4 W.
  10. What is the operating junction temperature (Tj) of the PBHV8115Z,115 transistor?
    The operating junction temperature (Tj) is up to 150°C.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):1 A
Voltage - Collector Emitter Breakdown (Max):150 V
Vce Saturation (Max) @ Ib, Ic:350mV @ 200mA, 1A
Current - Collector Cutoff (Max):100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:50 @ 500mA, 10V
Power - Max:1.4 W
Frequency - Transition:30MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:SOT-223
0 Remaining View Similar

In Stock

$0.57
611

Please send RFQ , we will respond immediately.

Similar Products

Part Number PBHV8115Z,115 PBHV8215Z,115 PBHV9115Z,115 PBHV8115X,115
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active Active
Transistor Type NPN NPN PNP NPN
Current - Collector (Ic) (Max) 1 A 2 A 1 A 1 A
Voltage - Collector Emitter Breakdown (Max) 150 V 150 V 150 V 150 V
Vce Saturation (Max) @ Ib, Ic 350mV @ 200mA, 1A 280mV @ 400mA, 2A 300mV @ 100mA, 500mA 50mV @ 20mA, 100mA
Current - Collector Cutoff (Max) 100nA 100nA 100nA 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce 50 @ 500mA, 10V 100 @ 1A, 10V 100 @ 100mA, 10V 100 @ 50mA, 10V
Power - Max 1.4 W 1.45 W 1.4 W 1.5 W
Frequency - Transition 30MHz 33MHz 115MHz 30MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case TO-261-4, TO-261AA TO-261-4, TO-261AA TO-261-4, TO-261AA TO-243AA
Supplier Device Package SOT-223 SOT-223 SOT-223 SOT-89
