Product Introduction

Overview

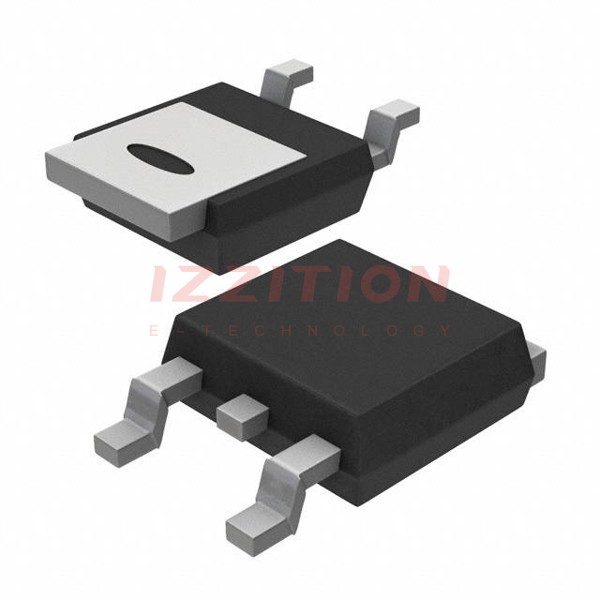

The BUK9277-55A/CDJ is a logic level N-channel enhancement mode Field-Effect Transistor (FET) produced by Nexperia USA Inc. This component utilizes TrenchMOS technology and is packaged in a DPAK (SOT428) package. It has been designed and qualified to the appropriate AEC standard, making it suitable for use in automotive critical applications as well as general-purpose power switching.

Key Specifications

Type numberPackage versionPackage nameProduct statusChannel typeNr of transistorsV DS [max] (V)R DSon [max] @ V GS = 10 V (mΩ)R DSon [max] @ V GS = 5 V (mΩ)R DSon [max] @ V GS = 4.5 V; @25 C (mΩ)T j [max] (°C)I D [max] (A)Q GD [typ] (nC)P tot [max] (W)Q r [typ] (nC)V GSth [typ] (V)Automotive qualifiedC iss [typ] (pF)C oss [typ] (pF)
BUK9277-55ASOT428DPAKEnd of lifeN15569778617518551601.5Y44090

Key Features

  • Q101 compliant, ensuring high reliability and quality.
  • Suitable for logic level gate drive sources.
  • Designed for thermally demanding environments with a maximum junction temperature of 175 °C.

Applications

  • 12 V and 24 V loads.
  • Automotive and general-purpose power switching.
  • Motors, lamps, and solenoids.

Q & A

  1. What is the BUK9277-55A/CDJ used for? The BUK9277-55A/CDJ is used for automotive and general-purpose power switching, including applications such as 12 V and 24 V loads, motors, lamps, and solenoids.
  2. What package type does the BUK9277-55A/CDJ use? The BUK9277-55A/CDJ is packaged in a DPAK (SOT428) package.
  3. What is the maximum drain-source voltage (V DS) for the BUK9277-55A/CDJ? The maximum drain-source voltage (V DS) is 55 V.
  4. What is the maximum drain current (I D) for the BUK9277-55A/CDJ? The maximum drain current (I D) is 18 A.
  5. Is the BUK9277-55A/CDJ automotive qualified? Yes, the BUK9277-55A/CDJ is automotive qualified and complies with the appropriate AEC standard.
  6. What is the maximum junction temperature (T j) for the BUK9277-55A/CDJ? The maximum junction temperature (T j) is 175 °C.
  7. What is the typical gate-source threshold voltage (V GSth) for the BUK9277-55A/CDJ? The typical gate-source threshold voltage (V GSth) is 1.5 V.
  8. What are the typical input, output, and reverse transfer capacitances for the BUK9277-55A/CDJ? The typical input capacitance (C iss) is 440 pF, the typical output capacitance (C oss) is 90 pF.
  9. Is the BUK9277-55A/CDJ still in production? No, the BUK9277-55A/CDJ is listed as end-of-life.
  10. Where can I find more detailed information about the BUK9277-55A/CDJ? Detailed information can be found in the datasheet available on the Nexperia website or through authorized distributors.
