BC847C/DG/B4VL
  • Share:

Nexperia USA Inc. BC847C/DG/B4VL

Manufacturer No:
BC847C/DG/B4VL
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 45V 0.1A TO236AB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

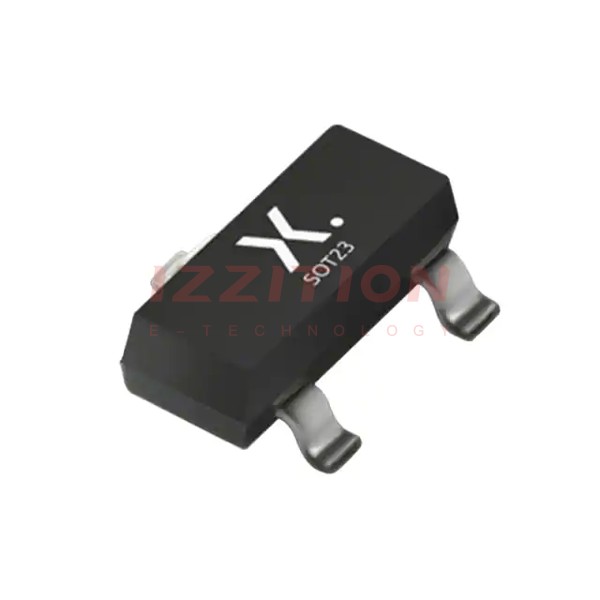

The BC847C/DG/B4VL is a 45 V, 100 mA NPN general-purpose transistor manufactured by Nexperia USA Inc. This transistor is housed in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package, making it suitable for a wide range of applications where space is limited. The BC847C is part of a family of general-purpose transistors that offer three different gain selections, making it versatile for various switching and amplification tasks.

Key Specifications

ParameterValueUnit
Type NumberBC847C-
PackageSOT23 (TO-236AB)-
Voltage (VCE)45V
Collector Current (IC)100mA
Package Size2.9 x 1.3 x 1mm
Maximum Junction Temperature (TJ)150°C
RoHS ComplianceYes-
RHF Indicator (Lead-free and Halogen-free)Yes-

Key Features

  • NPN general-purpose transistor with a voltage rating of 45 V and a collector current of 100 mA.
  • Available in SOT23 (TO-236AB) SMD plastic package, which is compact and suitable for surface-mount applications.
  • Three different gain selections available, making it versatile for various applications.
  • Compliant with RoHS, ELV, and CN RoHS regulations, ensuring environmental sustainability.
  • Lead-free and halogen-free, aligning with Nexperia's halogen-free definition.

Applications

The BC847C/DG/B4VL transistor is widely used in various industries due to its general-purpose nature. It finds applications in:

  • Automotive systems for switching and amplification tasks.
  • Industrial control systems where reliability and efficiency are crucial.
  • Consumer electronics such as audio amplifiers and switching circuits.
  • Mobile and wearable devices where compact size is essential.
  • Power and computing applications requiring robust and efficient transistor performance.

Q & A

  1. What is the voltage rating of the BC847C transistor?
    The BC847C transistor has a voltage rating of 45 V.
  2. What is the maximum collector current of the BC847C transistor?
    The maximum collector current is 100 mA.
  3. In what package is the BC847C transistor available?
    The BC847C transistor is available in the SOT23 (TO-236AB) SMD plastic package.
  4. Is the BC847C transistor RoHS compliant?
    Yes, the BC847C transistor is RoHS compliant.
  5. Does the BC847C transistor contain lead or halogen?
    No, the BC847C transistor is lead-free and halogen-free.
  6. What are the typical applications of the BC847C transistor?
    The BC847C transistor is used in automotive, industrial, consumer electronics, mobile, and power applications.
  7. What is the maximum junction temperature of the BC847C transistor?
    The maximum junction temperature is 150°C.
  8. Are there different gain selections available for the BC847C transistor?
    Yes, there are three different gain selections available for the BC847C transistor.
  9. Is the BC847C transistor suitable for surface-mount applications?
    Yes, the BC847C transistor is suitable for surface-mount applications due to its SOT23 package.
  10. Where can I find more detailed technical information about the BC847C transistor?
    You can find detailed technical information in the datasheet and other support documents available on Nexperia's official website.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:400mV @ 5mA, 100mA
Current - Collector Cutoff (Max):15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:420 @ 2mA, 5V
Power - Max:250 mW
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:TO-236AB
0 Remaining View Similar

In Stock

-
109

Please send RFQ , we will respond immediately.
