Overview

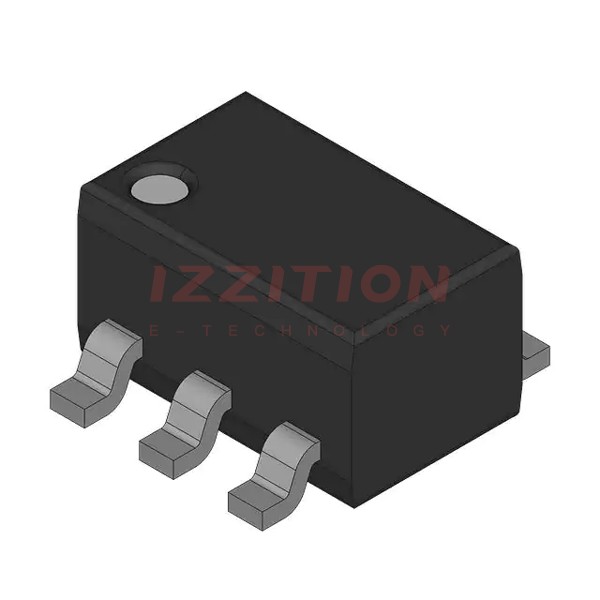

The BAS16VY/ZL,135 is a high-speed switching diode produced by Nexperia USA Inc. This component is encapsulated in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package, making it ideal for applications where space is limited. The diode is designed for high-speed switching applications, offering reliable performance in a compact form factor.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | BAS16VY |
| Orderable Part Number | BAS16VY,135 |
| Package | SOT363 (SC-88) |
| Reverse Voltage (Vr) | 100 V |
| Forward Current (If) | 200 mA |
| Factory Pack Quantity | 3000 (for bulk packaging) |
Key Features
- High-speed switching capability
- Compact SOT363 (SC-88) SMD package
- Reverse voltage of 100 V
- Forward current of 200 mA
- Ideal for space-constrained applications
Applications
The BAS16VY/ZL,135 is suitable for a variety of high-speed switching applications, including but not limited to:
- Switching power supplies
- High-frequency circuits
- Automotive electronics
- Consumer electronics
- Industrial control systems
Q & A
- What is the package type of the BAS16VY/ZL,135? The BAS16VY/ZL,135 is packaged in a SOT363 (SC-88) SMD package.
- What is the reverse voltage rating of the BAS16VY/ZL,135? The reverse voltage rating is 100 V.
- What is the forward current rating of the BAS16VY/ZL,135? The forward current rating is 200 mA.
- What are the typical applications for the BAS16VY/ZL,135? Typical applications include switching power supplies, high-frequency circuits, automotive electronics, consumer electronics, and industrial control systems.
- Where can I purchase the BAS16VY/ZL,135? You can purchase the BAS16VY/ZL,135 from authorized distributors such as Digi-Key, Mouser, and Nexperia's official website.
- What is the factory pack quantity for bulk packaging? The factory pack quantity for bulk packaging is 3000 units.
- Is the BAS16VY/ZL,135 suitable for high-speed switching applications? Yes, the BAS16VY/ZL,135 is designed for high-speed switching applications.
- What is the significance of the 'ZL' suffix in the part number? The 'ZL' suffix typically indicates a specific configuration or variant of the component, but for the BAS16VY, it generally refers to the same product family without significant differences in specifications.
- Can the BAS16VY/ZL,135 be used in automotive applications? Yes, the BAS16VY/ZL,135 can be used in automotive electronics due to its robust specifications and reliability.
- What is the benefit of using the SOT363 package? The SOT363 package is very small, making it ideal for applications where space is limited.
