Overview

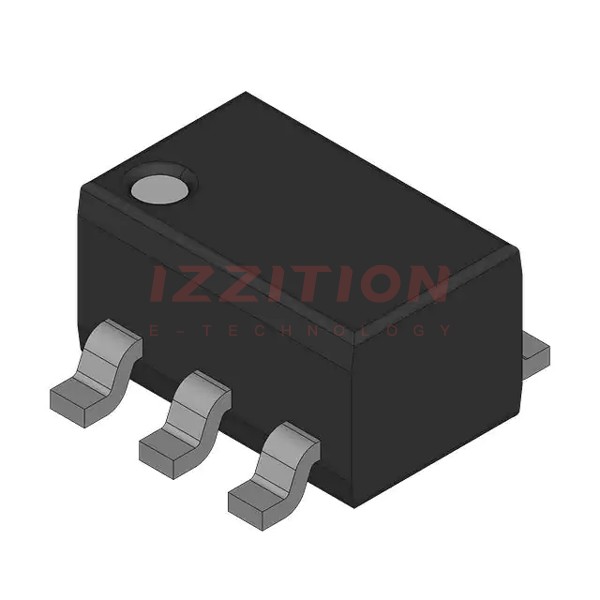

The BAS16VY/ZL,115 is a general-purpose rectifier diode array produced by Nexperia USA Inc. This component is designed for small signal applications and is known for its high reliability and performance in various electronic circuits. The diode array is packaged in a SOT363 (SC-88) package, making it suitable for surface mount technology (SMT) assembly.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Part Number | BAS16VY/ZL,115 |
| Package | SOT363 (SC-88) |
| Reverse Voltage (Vr) | 100 V |
| Average Rectified Current (Io) | 200 mA (DC) |
| Forward Voltage (Vf) | 1.25 V @ 150 mA |
| Reverse Recovery Time (trr) | 4 ns |
| Power Dissipation (Pd) | 250 mW |
| Maximum Diode Capacitance | 1.5 pF |
| Operating Temperature | -55°C to 150°C |
Key Features
- General-purpose rectifier diode array suitable for small signal applications.
- High reliability and performance in various electronic circuits.
- SOT363 (SC-88) package for surface mount technology (SMT) assembly.
- Low forward voltage drop of 1.25 V at 150 mA.
- Fast reverse recovery time of 4 ns.
- Low maximum diode capacitance of 1.5 pF.
- AEC-Q101 qualified for automotive applications.
Applications
The BAS16VY/ZL,115 is widely used in various electronic circuits, including:
- General-purpose rectification in small signal applications.
- Automotive systems due to its AEC-Q101 qualification.
- Consumer electronics requiring reliable and efficient diode performance.
- Industrial control systems and power supplies.
Q & A
- What is the package type of the BAS16VY/ZL,115?
The BAS16VY/ZL,115 is packaged in a SOT363 (SC-88) package. - What is the reverse voltage rating of the BAS16VY/ZL,115?
The reverse voltage rating is 100 V. - What is the average rectified current (Io) of the BAS16VY/ZL,115?
The average rectified current is 200 mA (DC). - What is the forward voltage drop of the BAS16VY/ZL,115?
The forward voltage drop is 1.25 V at 150 mA. - What is the reverse recovery time of the BAS16VY/ZL,115?
The reverse recovery time is 4 ns. - Is the BAS16VY/ZL,115 qualified for automotive applications?
Yes, it is AEC-Q101 qualified. - What is the maximum power dissipation of the BAS16VY/ZL,115?
The maximum power dissipation is 250 mW. - What is the maximum operating temperature range of the BAS16VY/ZL,115?
The operating temperature range is -55°C to 150°C. - What is the maximum diode capacitance of the BAS16VY/ZL,115?
The maximum diode capacitance is 1.5 pF. - Where can I find more detailed specifications for the BAS16VY/ZL,115?
You can find detailed specifications in the datasheet available on the manufacturer's website or through authorized distributors.
