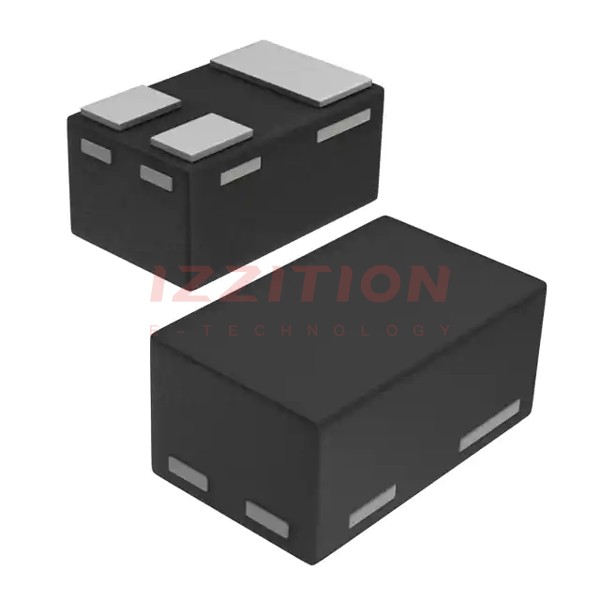

Nexperia USA Inc. 2PA1774RM,315

Manufacturer No:
2PA1774RM,315
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS PNP 40V 0.1A SOT883
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2PA1774RM,315 is a PNP general-purpose bipolar transistor manufactured by Nexperia USA Inc. This transistor is designed for a wide range of applications, particularly in automotive and general-purpose electronics. It features a leadless ultra-small SMD plastic package, which offers a low package height of 0.37 mm and power dissipation comparable to SOT23 packages. The device is AEC-Q101 qualified, ensuring reliability and performance in demanding environments.

Key Specifications

Parameter Value
Transistor Type PNP
Collector Emitter Voltage (VCEO) 40 V
Max Collector Current 100 mA
DC Current Gain (hFE) (Min) @ Ic, Vce 270 @ 1mA, 6V
Collector Emitter Saturation Voltage (Vce Sat) 200 mV @ 5mA, 50mA
Gain Bandwidth Product 100 MHz
Max Power Dissipation 590 mW
Operating Temperature (TJ) 150°C
Package / Case SC-101, SOT-883
Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Terminal Finish Tin (Sn)

Key Features

  • Low Package Height: The transistor features a leadless ultra-small SMD plastic package with a height of 0.37 mm, making it ideal for space-constrained designs.
  • AEC-Q101 Qualified: Ensures reliability and performance in automotive and other demanding environments.
  • High DC Current Gain: A minimum DC current gain of 270 @ 1mA, 6V, providing efficient current amplification.
  • Low Vce Saturation: A collector emitter saturation voltage of 200 mV @ 5mA, 50mA, which helps in achieving high efficiency.
  • High Gain Bandwidth Product: 100 MHz, suitable for high-frequency applications.

Applications

  • Inverter Circuits: Can be used in inverter designs due to its high gain bandwidth product and low Vce saturation.
  • Interface and Driver Circuits: Suitable for interface and driver applications requiring high current gain and low saturation voltage.
  • Muting Circuits: Can be used in muting circuits where quick switching and low power dissipation are required.
  • Automotive Electronics: AEC-Q101 qualification makes it suitable for use in automotive electronics.

Q & A

  1. What is the collector emitter voltage (VCEO) of the 2PA1774RM,315 transistor?

    The collector emitter voltage (VCEO) is 40 V.

  2. What is the maximum collector current of the 2PA1774RM,315 transistor?

    The maximum collector current is 100 mA.

  3. What is the DC current gain (hFE) of the 2PA1774RM,315 transistor?

    The minimum DC current gain (hFE) is 270 @ 1mA, 6V.

  4. What is the gain bandwidth product of the 2PA1774RM,315 transistor?

    The gain bandwidth product is 100 MHz.

  5. What is the operating temperature range of the 2PA1774RM,315 transistor?

    The operating temperature (TJ) is up to 150°C.

  6. Is the 2PA1774RM,315 transistor AEC-Q101 qualified?

    Yes, the transistor is AEC-Q101 qualified.

  7. What is the package type of the 2PA1774RM,315 transistor?

    The package type is SC-101, SOT-883.

  8. What is the moisture sensitivity level (MSL) of the 2PA1774RM,315 transistor?

    The moisture sensitivity level (MSL) is 1 (Unlimited).

  9. What are some common applications of the 2PA1774RM,315 transistor?

    Common applications include inverter circuits, interface and driver circuits, muting circuits, and automotive electronics.

  10. What is the terminal finish of the 2PA1774RM,315 transistor?

    The terminal finish is Tin (Sn).

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):40 V
Vce Saturation (Max) @ Ib, Ic:200mV @ 5mA, 50mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:180 @ 1mA, 6V
Power - Max:430 mW
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-101, SOT-883
Supplier Device Package:SOT-883
0 Remaining View Similar

In Stock

$0.03
10,677

Please send RFQ , we will respond immediately.
