Overview

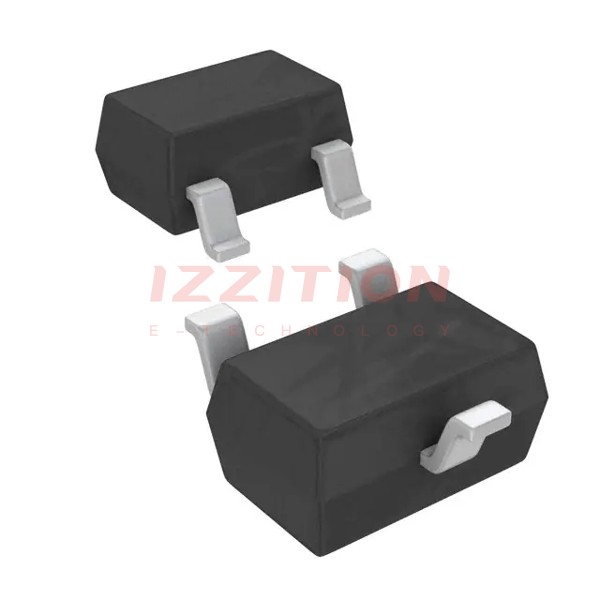

The BC847BWHE3-TP is a high-quality NPN bipolar junction transistor (BJT) produced by Micro Commercial Components (MCC). This transistor is designed for general-purpose amplification and switching applications, particularly in the automotive and consumer electronics sectors. It is packaged in the SOT-23 format, making it suitable for surface mount technology (SMT) assembly. The BC847BWHE3-TP is AEC-Q101 qualified, ensuring its reliability and performance in demanding automotive environments.
Key Specifications
| Parameter | Value |
|---|---|
| Package Code | SOT-23 |
| Number of Terminals | 3 |
| Polarity | NPN |
| Collector Power Dissipation (PC) [W] | 0.225 |
| Collector-Emitter Voltage (VCEO) [V] | 45 |
| Collector Current (Ic) [A] | 0.1 |
| Current Gain (hFE) | 200 to 450 |
| Mounting Style | Surface Mount |
| Storage Temperature (Min.) [°C] | -55 |
| Storage Temperature (Max.) [°C] | 150 |
| Operating Temperature (TJ) [°C] | -65 to 150 |
Key Features
- High current gain (200 to 450)
- Low collector-emitter saturation voltage
- Low noise between 30 Hz and 15 kHz
- AEC-Q101 qualified for automotive applications
- Pb-free (RoHS compliant) package
- Halogen-free and moisture sensitivity level 1
- Epoxy meets UL 94 V-0 flammability rating
Applications
The BC847BWHE3-TP is versatile and can be used in various applications, including:
- Audio frequency small signal amplifiers
- Automotive systems such as lighting, entertainment, and battery management systems (BMS)
- Instrumentation and display devices (HUD)
- Consumer electronics for general-purpose amplification and switching
Q & A
- What is the package type of the BC847BWHE3-TP transistor?
The BC847BWHE3-TP transistor is packaged in the SOT-23 format. - What is the maximum collector-emitter voltage (VCEO) of the BC847BWHE3-TP?
The maximum collector-emitter voltage (VCEO) is 45V. - What is the current gain (hFE) range of the BC847BWHE3-TP?
The current gain (hFE) ranges from 200 to 450. - Is the BC847BWHE3-TP suitable for automotive applications?
Yes, it is AEC-Q101 qualified, making it suitable for automotive applications. - What are the storage temperature limits for the BC847BWHE3-TP?
The storage temperature limits are -55°C to 150°C. - Is the BC847BWHE3-TP RoHS compliant?
Yes, it is Pb-free and RoHS compliant. - What are some common applications of the BC847BWHE3-TP?
Common applications include audio frequency small signal amplifiers, automotive systems, instrumentation, and display devices. - What is the operating temperature range of the BC847BWHE3-TP?
The operating temperature range is -65°C to 150°C (TJ). - Does the BC847BWHE3-TP have any special certifications?
Yes, it is AEC-Q101 qualified and meets UL 94 V-0 flammability rating. - Is the BC847BWHE3-TP halogen-free?
Yes, it is halogen-free.
