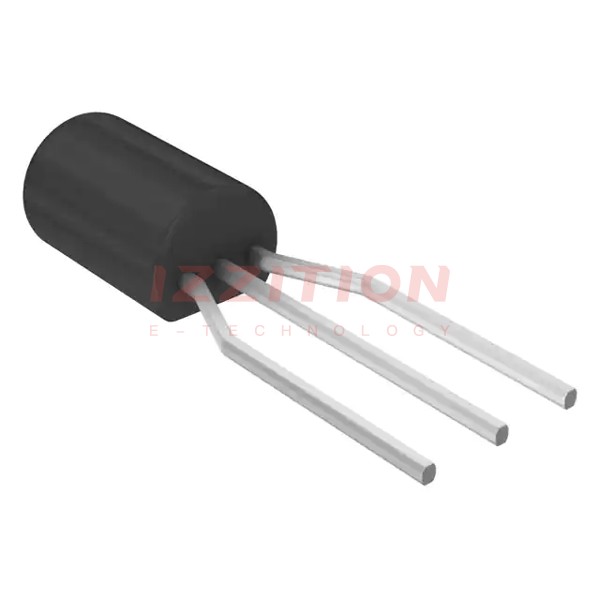

Micro Commercial Co TL431KLP-BP

Manufacturer No:
TL431KLP-BP
Manufacturer:
Micro Commercial Co
Package:
Bulk
Description:
IC VREF SHUNT 36V TO92
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The TL431KLP-BP is a three-terminal adjustable shunt regulator produced by Micro Commercial Co. This component is part of the TL431 series, known for its thermal stability and versatility in various applications. The TL431KLP-BP is designed to provide a stable voltage reference and can be used in a wide range of electronic systems, including automotive, commercial, and industrial environments.

Key Specifications

ParameterValue
PackageTO-92
Pins3
Operating Temperature Range (°C)-40 to 125
Reference Voltage Tolerance at 25°C0.5% (B grade), 1% (A grade), 2% (Standard grade)
Adjustable Output VoltageVref to 36V
Typical Output Impedance0.2Ω
Sink-Current Capability1mA to 100mA
Typical Temperature Drift6mV (C temp), 14mV (I temp, Q temp)

Key Features

  • Three-terminal adjustable shunt regulator
  • Specified thermal stability over automotive, commercial, and military temperature ranges
  • Adjustable output voltage from Vref (approximately 2.5V) to 36V using two external resistors
  • Low output noise and high stability over the entire temperature range
  • Active output circuitry with a sharp turn-on characteristic, making it an excellent replacement for Zener diodes in many applications
  • Available in different grades with initial tolerances of 0.5%, 1%, and 2% at 25°C

Applications

  • On-board regulation
  • Adjustable power supplies
  • Switching power supplies
  • Voltage regulation in automotive systems
  • Industrial control systems
  • Consumer electronics requiring stable voltage references

Q & A

  1. What is the TL431KLP-BP used for? The TL431KLP-BP is used as a three-terminal adjustable shunt regulator to provide a stable voltage reference in various electronic systems.
  2. What is the operating temperature range of the TL431KLP-BP? The operating temperature range is from -40°C to 125°C.
  3. How is the output voltage of the TL431KLP-BP adjusted? The output voltage can be adjusted using two external resistors from Vref (approximately 2.5V) to 36V.
  4. What are the typical applications of the TL431KLP-BP? Typical applications include on-board regulation, adjustable power supplies, switching power supplies, and voltage regulation in automotive and industrial systems.
  5. What are the different grades of the TL431 series? The TL431 series is available in different grades with initial tolerances of 0.5%, 1%, and 2% at 25°C.
  6. What is the typical output impedance of the TL431KLP-BP? The typical output impedance is 0.2Ω.
  7. What is the sink-current capability of the TL431KLP-BP? The sink-current capability ranges from 1mA to 100mA.
  8. How does the TL431KLP-BP compare to Zener diodes? The TL431KLP-BP has active output circuitry with a sharp turn-on characteristic, making it an excellent replacement for Zener diodes in many applications.
  9. What is the package type of the TL431KLP-BP? The package type is TO-92.
  10. Is the TL431KLP-BP suitable for automotive applications? Yes, it is suitable for automotive applications due to its specified thermal stability over automotive temperature ranges.

Product Attributes

Reference Type:Shunt
Output Type:Programmable
Voltage - Output (Min/Fixed):2.5V
Voltage - Output (Max):36 V
Current - Output:100 mA
Tolerance:-
Temperature Coefficient:-
Noise - 0.1Hz to 10Hz:-
Noise - 10Hz to 10kHz:-
Voltage - Input:2.482V ~ 37V
Current - Supply:-
Current - Cathode:1 mA
Operating Temperature:-40°C ~ 85°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package:TO-92
