BCW 60D E6327
  • Share:

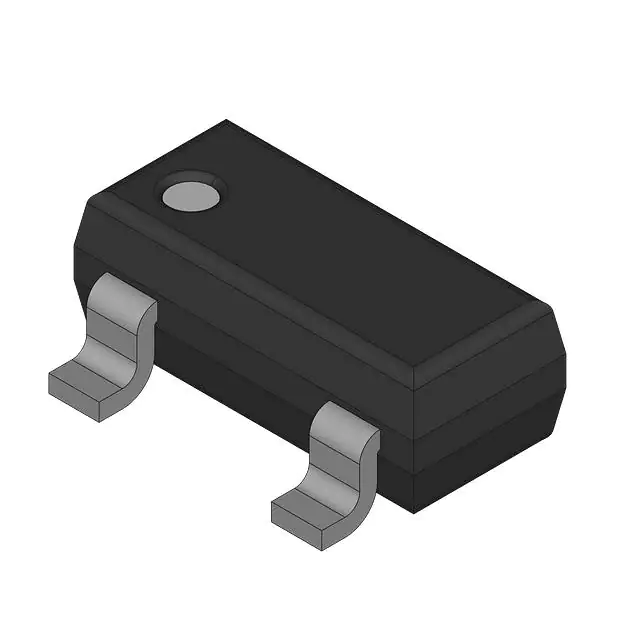

Infineon Technologies BCW 60D E6327

Manufacturer No:
BCW 60D E6327
Manufacturer:
Infineon Technologies
Package:
Bulk
Description:
TRANS NPN 32V 0.1A SOT23
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BCW 60D E6327 is a Bipolar Junction Transistor (BJT) manufactured by Infineon Technologies. It is an NPN silicon AF (amplifier) transistor, designed for a variety of applications requiring high reliability and performance. This transistor is packaged in a SOT-23 case, making it suitable for surface mount technology (SMT) and compact electronic designs.

Key Specifications

ParameterValue
ManufacturerInfineon Technologies Corporation
Package/CaseSOT-23
Transistor PolarityNPN
Collector Base Voltage VCBO32 V
Collector Emitter Voltage VCEO Max32 V
Emitter Base Voltage VEBO6 V
Maximum DC Collector Current0.1 A
Gain Bandwidth Product fT250 MHz
DC Collector/Base Gain hfe Min40 at 10 uA at 5 V
Maximum Operating Temperature+150°C
Minimum Operating Temperature-65°C
Maximum Power Dissipation330 mW
Mounting StyleSMD/SMT

Key Features

  • High Collector Emitter Voltage: Up to 32 V, making it suitable for applications requiring moderate voltage handling.
  • Low Noise Operation: Designed for amplifier applications, it offers a high gain bandwidth product of 250 MHz.
  • Compact Packaging: SOT-23 package allows for efficient use of space in modern electronic designs.
  • Wide Operating Temperature Range: From -65°C to +150°C, ensuring reliability in various environmental conditions.
  • RoHS Compliance: Meets the RoHS (Restriction of Hazardous Substances) standards, making it environmentally friendly.

Applications

The BCW 60D E6327 is versatile and can be used in a variety of applications, including:

  • Amplifier Circuits: Due to its high gain bandwidth product, it is suitable for audio and general-purpose amplifier circuits.
  • Switching Circuits: Its moderate collector current and voltage ratings make it appropriate for switching applications.
  • Automotive Electronics: The wide operating temperature range and robust design make it a good choice for automotive electronic systems.
  • Consumer Electronics: It can be used in various consumer electronic devices requiring reliable and efficient transistor performance.

Q & A

  1. Q: What is the collector base voltage (VCBO) of the BCW 60D E6327?
    A: The collector base voltage (VCBO) is 32 V.
  2. Q: What is the maximum DC collector current of the BCW 60D E6327?
    A: The maximum DC collector current is 0.1 A.
  3. Q: What is the gain bandwidth product (fT) of the BCW 60D E6327?
    A: The gain bandwidth product (fT) is 250 MHz.
  4. Q: What is the operating temperature range of the BCW 60D E6327?
    A: The operating temperature range is from -65°C to +150°C.
  5. Q: Is the BCW 60D E6327 RoHS compliant?
    A: Yes, the BCW 60D E6327 is RoHS compliant.
  6. Q: What is the package type of the BCW 60D E6327?
    A: The package type is SOT-23.
  7. Q: What is the maximum power dissipation of the BCW 60D E6327?
    A: The maximum power dissipation is 330 mW.
  8. Q: How can I ensure the authenticity of the BCW 60D E6327 from Infineon?
    A: Ensure you purchase from authorized distributors who strictly test and verify the qualifications of Infineon original manufacturers and agents.
  9. Q: Where can I find detailed information about the BCW 60D E6327?
    A: You can find detailed information through the datasheet available on the manufacturer's website or through authorized distributors.
  10. Q: Can I use the BCW 60D E6327 in automotive applications?
    A: Yes, the BCW 60D E6327 is suitable for automotive applications due to its wide operating temperature range and robust design.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):32 V
Vce Saturation (Max) @ Ib, Ic:550mV @ 1.25mA, 50mA
Current - Collector Cutoff (Max):20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:380 @ 2mA, 5V
Power - Max:330 mW
Frequency - Transition:250MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:PG-SOT23
0 Remaining View Similar

In Stock

$0.03
32,648

Please send RFQ , we will respond immediately.

Same Series
DD15S20L0S
DD15S20L0S
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20WES/AA
DD15S20WES/AA
CONN D-SUB HD RCPT 15P SLDR CUP
CBC9W4S10HE2S/AA
CBC9W4S10HE2S/AA
CONN D-SUB RCPT 9POS CRIMP
DD26S200TX
DD26S200TX
CONN D-SUB HD RCPT 26P SLDR CUP
DD26M20HV50/AA
DD26M20HV50/AA
CONN D-SUB HD PLUG 26P SLDR CUP
DD26S200V3X
DD26S200V3X
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200V30
DD26S200V30
CONN D-SUB HD RCPT 26P SLDR CUP
CBC13W3S10H0S/AA
CBC13W3S10H0S/AA
CONN D-SUB RCPT 13POS CRIMP
CBC13W3S10HE3S/AA
CBC13W3S10HE3S/AA
CONN D-SUB RCPT 13POS CRIMP
DD26S200V5X
DD26S200V5X
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50V50
DD26S2S50V50
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S20J00
DD26S20J00
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number BCW 60D E6327 BCW 61D E6327 BCW 60C E6327
Manufacturer Infineon Technologies Infineon Technologies Infineon Technologies
Product Status Active Active Active
Transistor Type NPN PNP NPN
Current - Collector (Ic) (Max) 100 mA 100 mA 100 mA
Voltage - Collector Emitter Breakdown (Max) 32 V 32 V 32 V
Vce Saturation (Max) @ Ib, Ic 550mV @ 1.25mA, 50mA 550mV @ 1.25mA, 50mA 550mV @ 1.25mA, 50mA
Current - Collector Cutoff (Max) 20nA (ICBO) 20nA (ICBO) 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 380 @ 2mA, 5V 380 @ 2mA, 5V 250 @ 2mA, 5V
Power - Max 330 mW 330 mW 330 mW
Frequency - Transition 250MHz 250MHz 250MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3
Supplier Device Package PG-SOT23 PG-SOT23 PG-SOT23
