Overview

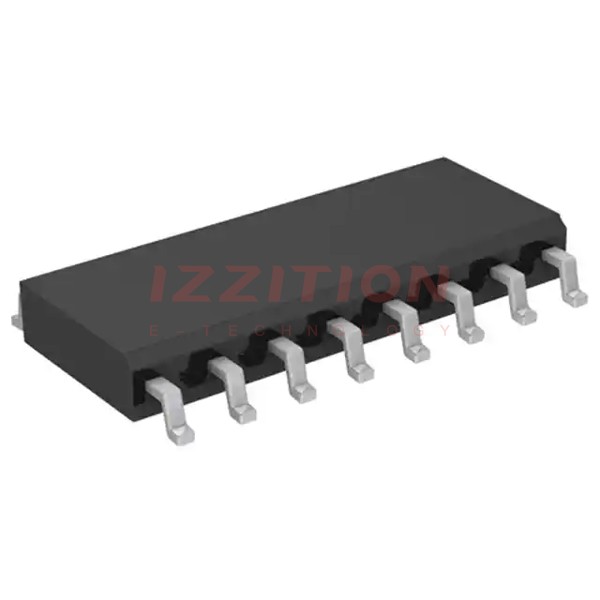

The IRS2092STRPBF is a high-performance Class D audio amplifier driver manufactured by Infineon Technologies AG. This integrated circuit (IC) is designed for efficient audio amplification, particularly in mono configurations. It features a PWM modulator and various protection mechanisms, making it suitable for a wide range of audio applications. The IC operates within a supply voltage range of 10V to 18V and has an operating temperature range from -40°C to +125°C, which is ideal for challenging environments, including automotive applications.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Infineon Technologies AG |
| Type of Integrated Circuit | Audio Amplifier |
| Frequency | 800 kHz |
| Number of Channels | 1 |
| Amplifier Class | Class D |
| Package Style | SOIC-16 (Power SOIC) |
| Mounting Method | Surface Mount |
| Supply Voltage | 10V to 18V DC |
| Gain Bandwidth Product | 9 MHz |
| Gain | 60 dB |
| Output Power | 1.6 W |
| Operating Temperature Range | -40°C to +125°C |
Key Features
- High-performance Class D audio amplifier with PWM modulator and protection mechanisms.
- Operates within a supply voltage range of 10V to 18V DC.
- Single-channel configuration with a gain of 60 dB and a gain bandwidth product of 9 MHz.
- Surface-mount SOIC-16 package for compact and modern audio system designs.
- RoHS compliance and automotive temperature grade (-40°C to +125°C).
- Efficient power consumption and high-fidelity sound reproduction with a nominal bandwidth of 20 kHz.
Applications
- Audio and Video Systems: Suitable for home theater systems, professional audio equipment, and portable audio devices where efficient power consumption and excellent audio quality are crucial.
- Automotive Audio Systems: Can be integrated into car audio systems, including entertainment and vehicle alert systems, due to its automotive temperature grade.
- Smart Home Devices: Ideal for smart home devices that require audio feedback and interaction, such as smart speakers and alarms.
- Public Address Systems: Efficient amplification for public address systems in schools, malls, and outdoor events.
Q & A
- What is the IRS2092STRPBF? The IRS2092STRPBF is a high-performance Class D audio amplifier driver manufactured by Infineon Technologies AG.
- What is the supply voltage range of the IRS2092STRPBF? The supply voltage range is 10V to 18V DC.
- What is the operating temperature range of the IRS2092STRPBF? The operating temperature range is from -40°C to +125°C.
- What type of package does the IRS2092STRPBF use? The IRS2092STRPBF uses a SOIC-16 (Power SOIC) package.
- Is the IRS2092STRPBF RoHS compliant? Yes, the IRS2092STRPBF is RoHS compliant.
- What are the typical applications of the IRS2092STRPBF? Typical applications include audio and video systems, automotive audio systems, smart home devices, and public address systems.
- What is the gain bandwidth product of the IRS2092STRPBF? The gain bandwidth product is 9 MHz.
- What is the output power of the IRS2092STRPBF? The output power is 1.6 W.
- Does the IRS2092STRPBF support high-fidelity sound reproduction? Yes, it supports high-fidelity sound reproduction with a nominal bandwidth of 20 kHz.
- How many channels does the IRS2092STRPBF support? The IRS2092STRPBF supports a single channel.
