BCP 68-25 H6327
  • Share:

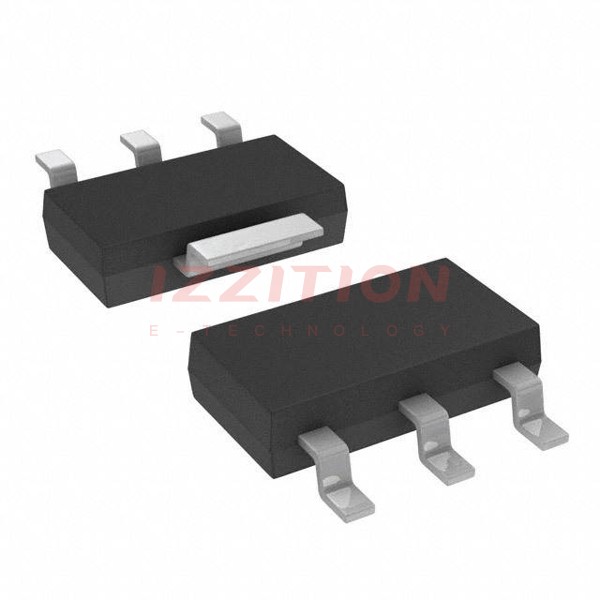

Infineon Technologies BCP 68-25 H6327

Manufacturer No:
BCP 68-25 H6327
Manufacturer:
Infineon Technologies
Package:
Tape & Reel (TR)
Description:
TRANS NPN 20V 1A SOT223-4
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BCP 68-25 H6327 is a bipolar junction transistor (BJT) produced by Infineon Technologies. This NPN transistor is designed for general-purpose applications and is packaged in a SOT223 case. Although the component is currently discontinued and no longer available from major distributors like Digi-Key and Mouser, it remains relevant for legacy systems and maintenance purposes.

Key Specifications

ParameterValue
Transistor TypeNPN
Collector-Base Voltage (Vcb)20 V
Collector-Emitter Voltage (Vce)20 V
Emitter-Base Voltage (Veb)5 V
Collector Current (Ic)1 A
Base Current (Ib)50 mA
Power Dissipation (Pd)1.25 W
Operating Temperature Range-55°C to 150°C
Package TypeSOT223

Key Features

  • NPN bipolar junction transistor
  • General-purpose applications
  • High collector current of 1 A
  • Low power dissipation of 1.25 W
  • Wide operating temperature range from -55°C to 150°C
  • SOT223 package for compact design

Applications

The BCP 68-25 H6327 is suitable for a variety of general-purpose applications, including but not limited to:

  • Amplifier circuits
  • Switching circuits
  • Power management systems
  • Automotive electronics
  • Industrial control systems

Q & A

  1. What is the transistor type of the BCP 68-25 H6327?
    The BCP 68-25 H6327 is an NPN bipolar junction transistor.
  2. What is the collector current rating of the BCP 68-25 H6327?
    The collector current rating is 1 A.
  3. What is the package type of the BCP 68-25 H6327?
    The package type is SOT223.
  4. What is the operating temperature range of the BCP 68-25 H6327?
    The operating temperature range is from -55°C to 150°C.
  5. Is the BCP 68-25 H6327 still available for purchase?
    No, the BCP 68-25 H6327 is currently discontinued and not available from major distributors.
  6. What are some common applications for the BCP 68-25 H6327?
    Common applications include amplifier circuits, switching circuits, power management systems, automotive electronics, and industrial control systems.
  7. What is the power dissipation of the BCP 68-25 H6327?
    The power dissipation is 1.25 W.
  8. What is the collector-base voltage rating of the BCP 68-25 H6327?
    The collector-base voltage rating is 20 V.
  9. Can the BCP 68-25 H6327 be used in high-temperature environments?
    Yes, it can operate in temperatures up to 150°C.
  10. Is the BCP 68-25 H6327 suitable for high-current applications?
    Yes, it is suitable for applications requiring up to 1 A of collector current.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):1 A
Voltage - Collector Emitter Breakdown (Max):20 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 100mA, 1A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:160 @ 500mA, 1V
Power - Max:3 W
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:PG-SOT223-4
0 Remaining View Similar

In Stock

-
460

Please send RFQ , we will respond immediately.

Same Series
BCP 68-25 H6327
BCP 68-25 H6327
TRANS NPN 20V 1A SOT223-4

Similar Products

Part Number BCP 68-25 H6327 BCP 68-25 E6327
Manufacturer Infineon Technologies Infineon Technologies
Product Status Discontinued at Digi-Key Obsolete
Transistor Type NPN NPN
Current - Collector (Ic) (Max) 1 A 1 A
Voltage - Collector Emitter Breakdown (Max) 20 V 20 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 100mA, 1A 500mV @ 100mA, 1A
Current - Collector Cutoff (Max) 100nA (ICBO) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 160 @ 500mA, 1V 160 @ 500mA, 1V
Power - Max 3 W 3 W
Frequency - Transition 100MHz 100MHz
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Package / Case TO-261-4, TO-261AA TO-261-4, TO-261AA
Supplier Device Package PG-SOT223-4 PG-SOT223-4
